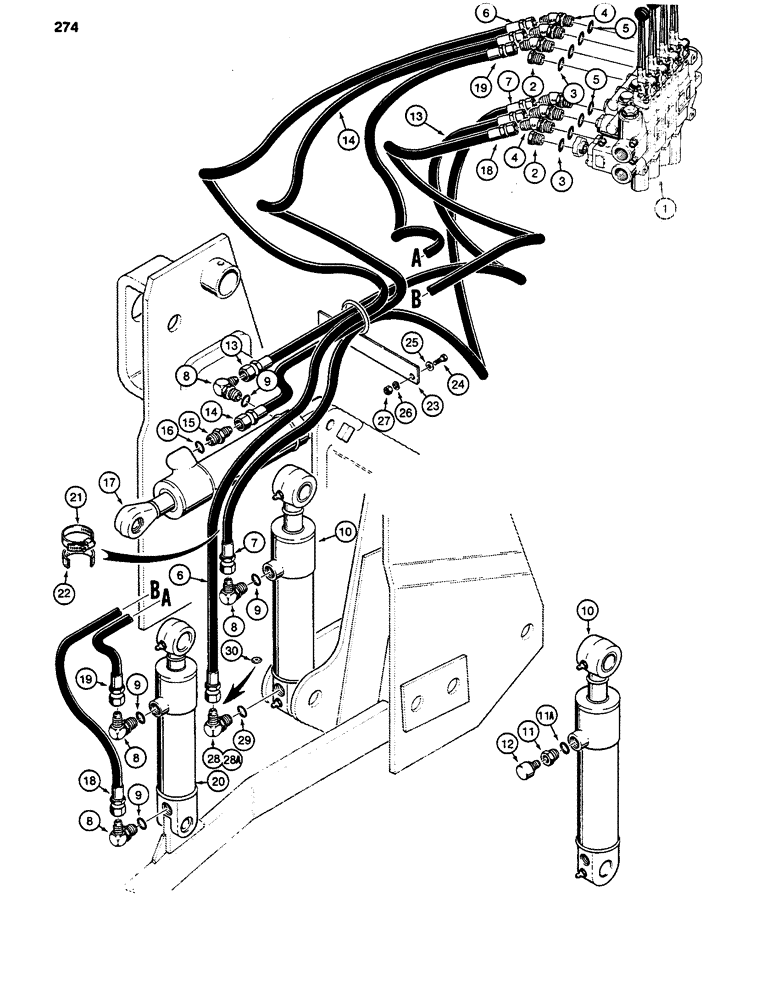

Запчасти Case 480D (274) - THREE-POINT HITCH CYLINDER HYDRAULIC CIRCUIT, USED WITH HYD HITCH (35) - HYDRAULIC SYSTEMS

1

REF

INSTRUCTION

CONTROL VALVE - three-point hitch, four spool or five spool (four spool shown), parts list Figure 344, mounting and controls on Figure 450.

1шт.

2

214389

PLUG,3/4" - 16 ORB

Control valve ports, if used, Includes Ref. 2 Hex Hd, 3/4"-16 ORB

2-5шт.

4

218-5136

ELBOW,45 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

- 45 degree, adjustable, Incl. Ref 5

5-6шт.

6

H257279

HOSE

- 50" (1270 mm) long, to closed end of lift cylinder

1шт.

7

R32709

HOSE ASSY.

HOSE - 40" (1016 mm) long, to rod end of lift cylinder, if used, see Ref. 11, 11A, and 12

1шт.

8

218-5121

ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 7/8" - 14 Male ORB

- 90 degree, adjustable, male, Includes: Ref. 9

3-4шт.

9

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk, Elbow

1шт.

10

G101189

CYLINDER ASSY.

CYLINDER - lift, parts list Figure 386

1шт.

11

D36929

ADAPTER

- lift cylinder breather, if used, Includes: Ref. 11A

1шт.

11a

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk, Adapter

1шт.

12

31543

BREATHER

- lift cylinder, if used

1шт.

13

D58825

HOSE

- 32" (813 mm) long, to closed end of pitch cylinder

1шт.

14

R38683

HOSE

- 44" (1118 mm) long, to rod end of pitch cylinder

1шт.

15

218-5060

HYD CONNECTOR,3/4" - 16 Male JIC x 7/8" - 14 Male ORB

Adapter, straight, male, Incl. Ref 16 3/4"-16, 37º x 7/8"-14, O-Ring

1шт.

16

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk, Adapter

1шт.

17

G33128

JACK BODY

CYLINDER - pitch, parts list Figure 390

1шт.

18

D34401

HOSE ASSY.

HOSE - 60" (1524 mm) long, to closed end of tilt cylinder

1шт.

19

D51686

HOSE

- 54" (1372 mm) long, to rod end of tilt cylinder

1шт.

20

G101188

JACK BODY

CYLINDER - tilt, parts list Figure 388

1шт.

21

214-256

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

CLAMP - hoses

1шт.

22

D95251

TUBE

GUARD - hose protector

1шт.

23

D72680

BRACKET

- hose guide

1шт.

24

113-103

BOLT,Hex, 5/16" - 18 x 1", Gr 5

2шт.

25

195-521

WASHER,5/16", SAE

- flat, 5/16", plated

2шт.

26

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

2шт.

27

9635082

NUT,5/16" - 18, Gr 5

2шт.

28

218-5121

ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 7/8" - 14 Male ORB

- 90 degree, adjustable, male, used with D71629 restrictor, no longer used, order D135096 restriction elbow

1шт.

28a

D135096

ELBOW

- 90 degree, restriction, replaces elbow and restrictor on some models, Includes: Ref. 29

1шт.

29

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk, 218-5121 or D135096 elbow

1шт.

30

D71629

FITTING

RESTRICTOR - flow control, used with 218-5121 elbow (Ref. 28) only, at closed end of lift cylinder, if used

1шт.

3

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk, plug

1шт.

5

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk, elbow

1шт.
