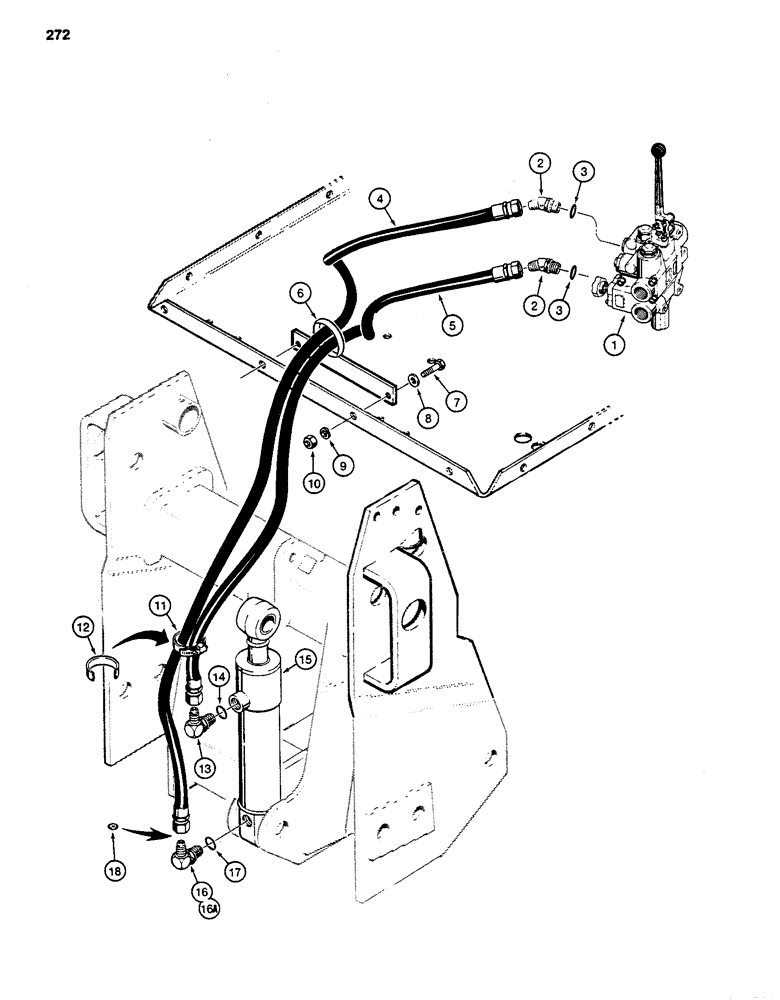

Запчасти Case 480D (272) - THREE-POINT HITCH CYLINDER HYDRAULIC CIRCUIT, USED WITH MECHANICAL HITCH (35) - HYDRAULIC SYSTEMS

1

REF

INSTRUCTION

CONTROL VALVE - three-point hitch, one spool, parts list Figure 342, mounting and controls on Figure 450

1шт.

2

218-5136

ELBOW,45 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

- 45 degree, adjustable, male, Incl. Ref 3

2шт.

4

H257279

HOSE

- 50" (1270 mm) long, to closed end of lift cylinder

1шт.

5

R32709

HOSE ASSY.

HOSE - 40" (1016 mm) long, to rod end of lift cylinder

1шт.

6

D72680

BRACKET

- hose guide

1шт.

7

113-103

BOLT,Hex, 5/16" - 18 x 1", Gr 5

2шт.

8

195-521

WASHER,5/16", SAE

- flat, 5/16", plated

2шт.

9

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

2шт.

10

9635082

NUT,5/16" - 18, Gr 5

2шт.

11

214-256

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

CLAMP - hose

1шт.

12

D95251

TUBE

GUARD - hose protector

1шт.

13

218-5121

ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 7/8" - 14 Male ORB

- 90 degree, adjustable, male, Includes: Ref. 14

1шт.

14

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk, Elbow

1шт.

15

G101189

CYLINDER ASSY.

CYLINDER - lift, parts list Figure 386

1шт.

16

218-5121

ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 7/8" - 14 Male ORB

- 90 degree, adjustable, male, used with D71629 restrictor, no longer used at closed end port, order D135096 restriction elbow

1шт.

16a

D135096

ELBOW

- 90 degree, restriction, replaces elbow and restrictor on some models, Includes: Ref. 17

1шт.

17

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk, 218-5121 or D135096 elbow

1шт.

18

D71629

FITTING

RESTRICTOR - flow control, used with 218-5121 elbow (Ref. 16) only

1шт.

3

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk, elbow

1шт.
