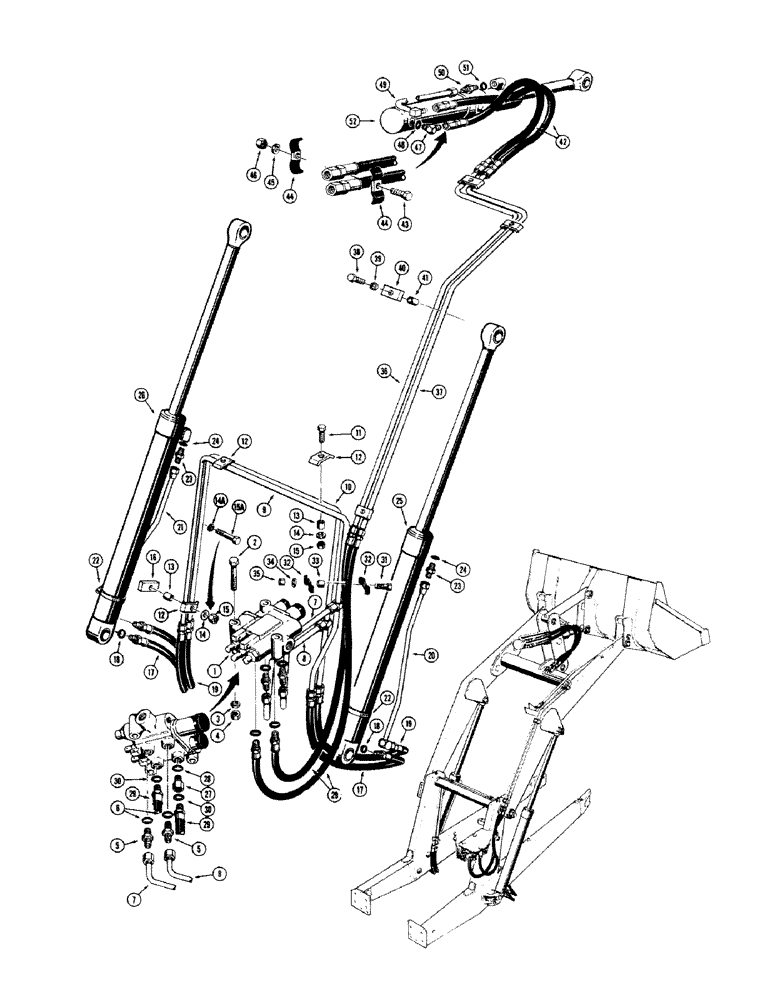

Запчасти Case 480CK (18) - LOADER LIFT AND DUMP HYDRAULICS (35) - HYDRAULIC SYSTEMS

1

D28489

VALVE

- loader control, 2 spools (Parts list Figure 62)

1шт.

2

13-640

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

HHCS - 3/8" - 16 NC x 2-1/2"

3шт.

3

92-6

LOCK WASHER,3/8"

3шт.

4

25-106

NUT,3/8"-16, G5

- hex. (3/8" - 16 NC)

3шт.

5

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

CONNECTOR - straight male, lift cyl hyd's, Includes: Ref. 6

2шт.

6

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk, Lift cyl hyd's

1шт.

7

D37645

TUBE ASSY.

TUBE - valve to lift cylinder, closed end, hyd's

1шт.

8

D37643

TUBE - valve to lift cylinder, rod end, hyd's

1шт.

9

D39922

TUBE

- crossover, valve to lift cylinder, closed end, hyd's

1шт.

10

D39920

TUBE - crossover, valve to lift cylinder, rod end, hyd's

1шт.

11

13-528

BOLT,Hex, 5/16" - 18 x 1-3/4", Gr 5

HHCS - 5/16" - 18 NC x 1-3/4", lift cyl hyd's

2шт.

12

R17319

CLAMP

- tube, lift cyl hyd's

3шт.

13

D33552

BUSHING

SPACER - clamp, lift cyl hyd's

3шт.

14

195-21

WASHER,5/16"

- standard wrot (), Lift cyl hyd's 5/16"

1-3шт.

14a

92-5

LOCK WASHER,5/16"

if used, lift cyl hyd's 5/16"

1шт.

15

131-4

LOCK NUT,5/16"-18, GB

NUT - hex., lock (5/16" - 18 NC) If used, lift cyl hyd's

3шт.

15a

13-520

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

HHCS - 5/16" - 18 NC x 1-1/4" (If used), lift cyl hyd's

1шт.

16

D37330

PLATE - tube support (If used), lift cyl hyd's

1шт.

17

D30533

HOSE

- valve to lift cylinder, closed end (26" long), hyd's, Includes: Ref. 18

2шт.

18

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk, Lift cyl hyd's

1шт.

19

D30541

HOSE

- valve to lift cylinder, rod end (27-1/8" long), hyd's

2шт.

20

D31460

TUBE

- valve to R.H. lift cylinder, rod end, hyd's

1шт.

21

D31459

TUBE

- valve to L.H. lift cylinder, rod end, hyd's

1шт.

22

214-262

HOSE CLAMP,#44, 2.31" - 3.25", Type F Worm

CLAMP - tube to cylinder, lift cyl hyd's

2шт.

23

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

CONNECTOR - straight, male, lift cyl hyd's, Includes: Ref. 24

2шт.

24

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk, Lift cyl hyd's

1шт.

25

D33440

CYLINDER - hydraulic, R.H. loader lift (Parts list Figure 46)

1шт.

26

D33441

CYLINDER - hydraulic, L.H. loader lift (Parts list Figure 46)

1шт.

27

D36750

RESTRICTOR - flow control, loader dump hyd's, Includes: Ref. 28

1шт.

28

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk, Loader dump hyd's

1шт.

29

D33583

FLEXIBLE HOSE

HOSE - valve to dump cylinder (44" long), loader hyd's, Includes: Ref. 30

2шт.

30

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk, Loader dump hyd's

1шт.

31

13-532

BOLT,Hex, 5/16" - 18 x 2", Gr 5

Loader dump hyd's Hex, 5/16"-18 x 2", G5

2шт.

32

D33316

CLAMP

- hose, loader dump hyd's

4шт.

33

D33554

BUSHING

SPACER - clamp, loader dump hyd's

2шт.

34

195-21

WASHER,5/16"

- standard wrot (), Loader dump hyd's 5/16"

2шт.

35

131-4

LOCK NUT,5/16"-18, GB

NUT - hex., lock (5/16" - 18 NC), loader dump hyd's

2шт.

36

D35467

TUBE - valve to dump cylinder, closed end, hyd's

1шт.

37

D35469

TUBE

- valve to dump cylinder, rod end, hyd's

1шт.

38

13-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

Loader dump hyd's Hex, 5/16"-18 x 1", G5, Full Thd

4шт.

39

92-5

LOCK WASHER,5/16"

loader dump hyd's 5/16"

4шт.

40

R17319

CLAMP

- tube, loader dump hyd's

4шт.

41

D33551

BUSHING

SPACER - clamp, loader dump hyd's

4шт.

42

D33581

HOSE ASSY.

HOSE - valve to dump cylinder (35" long), , loader hyd's

2шт.

43

13-532

BOLT,Hex, 5/16" - 18 x 2", Gr 5

Loader dump hyd's Hex, 5/16"-18 x 2", G5

1шт.

44

D33316

CLAMP

- hose, loader dump hyd's

2шт.

45

195-21

WASHER,5/16"

- standard wrot (), Loader dump hyd's 5/16"

1шт.

46

131-4

LOCK NUT,5/16"-18, GB

NUT - hex., lock (5/16" - 18 NC), loader dump hyd's

1шт.

47

D25667

ELBOW

- adjustable, 90 degrees, loader dump hyd's, Includes: Ref. 48

1шт.

48

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk, Loader dump hyd's

1шт.

49

D33569

TUBE

- dump cylinder, rod end, hyd's

1шт.

50

218-5060

HYD CONNECTOR,3/4" - 16 Male JIC x 7/8" - 14 Male ORB

male, straight, loader dump hyd's, Incl. Ref 51 3/4"-16, 37º x 7/8"-14, O-Ring

1шт.

51

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk, Loader dump hyd's

1шт.

52

D36751

CYLINDER - hydraulic, loader pump (Parts list Figure 44)

1шт.
