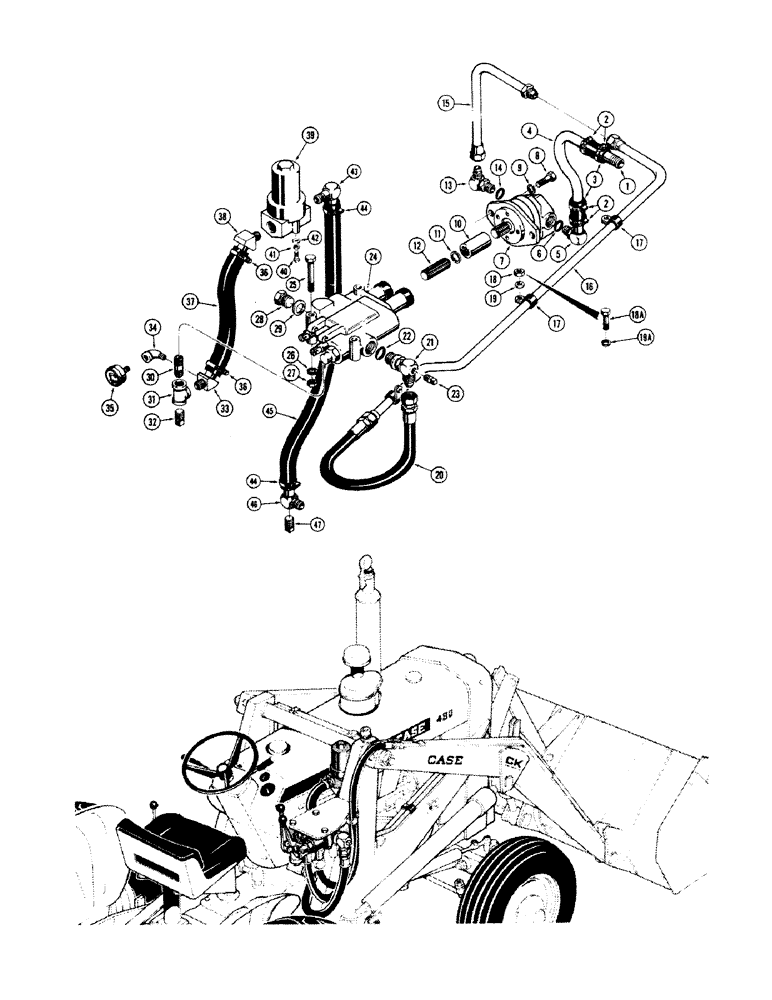

Запчасти Case 480CK (16) - LOADER PRIMARY HYDRAULICS (35) - HYDRAULIC SYSTEMS

1

D33363

FITTING

STEM - hose, hydraulic reservoir

1шт.

2

214-258

HOSE CLAMP,#28, 1.31" - 2.25", Type F Worm

4шт.

3

R13911

HOSE,31.80 mm ID x 101.60 mm ID, SAE 100R3

- low pressure, reservoir to pump 31.80 mm ID x 101.60 mm ID, SAE 100R3

2шт.

4

D33822

TUBE -, Serial Range: reservoir-pump

1шт.

5

D33591

STEM - hose, 90 degrees, Includes: Ref. 6

1шт.

6

218-5009

O-RING,0.116" Thk x 1.048" ID, -914, Cl 6, 90 Duro

SEAL - "O" ring

1шт.

7

D33702

X

PUMP - hydraulic, Webster (13-1/2 G.P.M. at 1750 R.P.M. at 1750 P.S.I.) Parts list Figure 58 (Use D41914 pump when stock is exhausted)

1шт.

D41914

PUMP - hydraulic, Hydreco (17 G.P.M. at 2000 R.P.M. at 2000 P.S.I.)

1шт.

8

13-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

HHCS - 1/2" - 13 NC x 1-3/4"

2шт.

9

92-8

LOCK WASHER,1/2"

2шт.

10

D31108

SPLINED COUPLING

COUPLING - female, pump to drive shaft, Includes: Ref. 11

1шт.

11

G46150

SNAP RING,0.75", Int, #75

Ring, Snap, , coupling 0.75", Int, #75

1шт.

12

D30569

SHAFT

- pump drive

1шт.

13

D25098

ELBOW - adjustable, 90 degrees, Includes: Ref. 14

1шт.

14

218-5009

O-RING,0.116" Thk x 1.048" ID, -914, Cl 6, 90 Duro

SEAL - "O" ring

1шт.

15

D30563

TUBE ASSY.

TUBE - pump to valve (Use on D33702 Webster pump only)

1шт.

D41682

TUBE ASSY.

TUBE - pump to valve (Use on D41914 Hydreco pump only)

1шт.

16

D33579

TUBE

-, Serial Range: pump-valve

1шт.

17

R11405

CLAMP

- tube

3шт.

18

131-4

LOCK NUT,5/16"-18, GB

NUT - hex., lock (5/16" - 18 NC) Early production models

3шт.

18a

13-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

(Late production models) Hex, 5/16"-18 x 1", G5, Full Thd

3шт.

19

195-21

WASHER,5/16"

- standard wrot (), Early production models 5/16"

3шт.

19a

92-5

LOCK WASHER,5/16"

Late production models 5/16"

3шт.

20

D24646

HOSE ASSY.

HOSE - pump to valve (25" long)

1шт.

21

D26360

ELBOW - adjustable, 90 degrees, Includes: Ref. 22

1шт.

22

218-5009

O-RING,0.116" Thk x 1.048" ID, -914, Cl 6, 90 Duro

SEAL - "O" ring

1шт.

23

221-12

PLUG,Sq Hd, 1/4"-18

- pipe, square head (1/4" NPT)

1шт.

24

D28489

VALVE

- loader control, 2 spool (Parts list Figure 62)

1шт.

25

13-640

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

HHCS - 3/8" - 16 NC x 2-1/2"

3шт.

26

92-6

LOCK WASHER,3/8"

3шт.

27

25-106

NUT,3/8"-16, G5

- hex. (3/8" - 16 NC)

3шт.

28

D25604

PLUG

- special

1шт.

29

D25653

GASKET

- plug

1шт.

30

221-215

PIPE,Nipple, 3/4" NPT x 2"

NIPPLE - pipe

1шт.

31

221-425

FITTING,3/4" NPT

TEE - female

1шт.

32

221-15

PLUG,Sq Hd, 3/4"-14

- pipe, square head (3/4" NPT)

1шт.

33

D33588

STEM - hose, 45 degrees (Special)

1шт.

34

221-411

ELBOW,90 Degree, 1/8"-27, NPT

Street 90º, 1/8"-27, NPT

1шт.

35

D29650

ELECTRICAL GAUGE

GAUGE - filter condition indicator

1шт.

36

214-256

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

CLAMP - hose

2шт.

37

D36798

HOSE

- low pressure, Serial Range: valve-filter

1шт.

38

217-146

ELBOW,45 Degree Elbow, 1" Hose Barb x 1" Male NPTF

STEM - hose, 45 degrees

1шт.

39

D32254

FILTER ASSY

- oil, Marvel No. 33425 (Use D43567 filter when stock is exhausted) Parts list Figure 57A

1шт.

D43567

FILTER ASSY

- oil, Marvel No. M2735A (Parts list Figure 57A)

1шт.

40

13-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5, Full Thd

2шт.

41

92-8

LOCK WASHER,1/2"

2шт.

42

195-33

WASHER,1/2"

- plain () 1/2"

2шт.

43

217-136

ELBOW,90 Degree Elbow, 1" Hose Barb x 1" Male NPTF

STEM - hose, 90 degrees

1шт.

44

214-256

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

CLAMP - hose

2шт.

45

D42285

HOSE

- low pressure, Serial Range: filter-reservoir

1шт.

46

D33590

STEM - hose, 90 degrees (Special)

1шт.

47

221-14

DRAIN PLUG,Sq Hd, 1/2"-14 NPTF

PLUG - pipe, square head (1/2" NPT)

1шт.

48

195-33

WASHER,1/2"

- plain () 1/2"

2шт.
