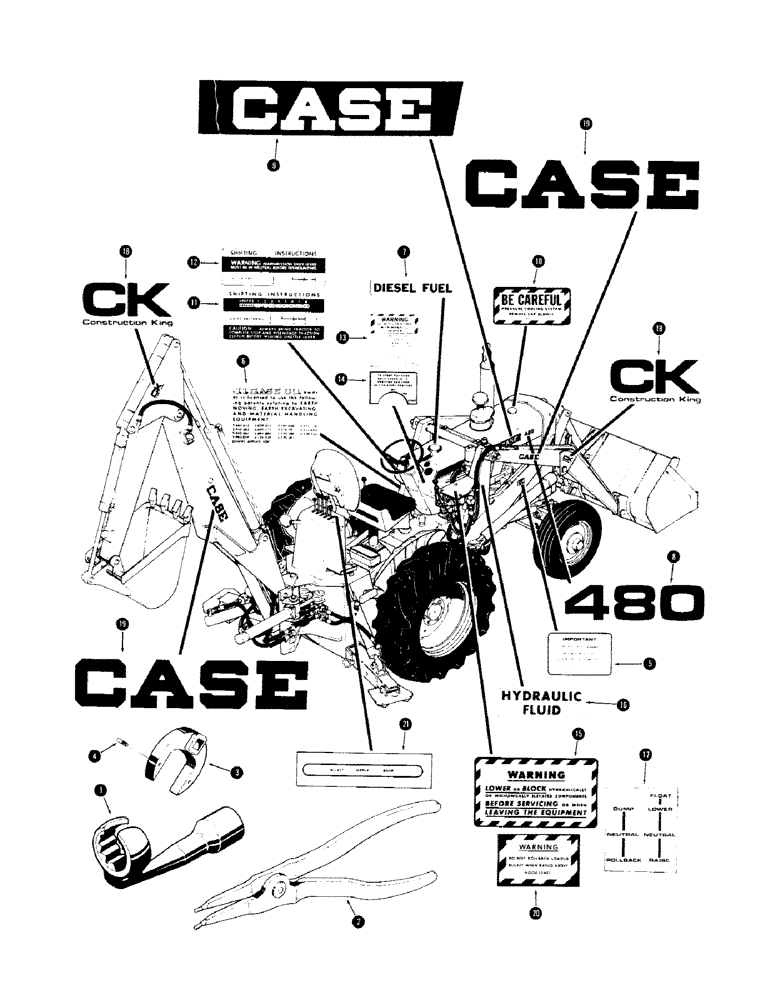

Запчасти Case 480CK (82) - TOOLS AND DECALS (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

D38971

TOOL

WRENCH - crow foot, 1/2" drive (For backhoe hose 1-1/16" fittings)

1шт.

2

D32049

TOOL

PLIERS - snap ring, Includes: Ref. 3 and 4

1шт.

D12631

SET - spanner wrench (For removing and installing packing gland in threaded gland type hydraulic cylinders)

1шт.

3

D30102

WRENCH - spanner, for 2-1/2" I.D. cylinder with 1-1/4" or 1-1/2" piston rods (Includes Ref. No. 4)

1шт.

D30103

WRENCH - spanner, for 3" I.D. cylinders with 1-1/2" piston rods (Includes Ref. No. 4)

1шт.

D30104

WRENCH - spanner, for 3" I.D. cylinders with 1-3/4" piston rods (Includes Ref. No. 4)

1шт.

D30105

WRENCH - spanner, for 3-1/2" I.D. cylinder with 1-3/4" or 2" piston rods (Includes Ref. No. 4)

1шт.

D30106

WRENCH - spanner, for 4" I.D. cylinders with 2" piston rods (Includes Ref No. 4)

1шт.

4

D30107

PIN

- spanner wrench

1шт.

5

321-695

DECAL

- check oil level, on R.H. loader frame

1шт.

6

321-663

DECAL

- patent, on L.H. loader frame

1шт.

7

321-230

DECAL

- diesel fuel, on fuel tank

1шт.

321-18

DECAL

- gasoline (Not shown) on fuel tank

1шт.

8

321-994

DECAL

- 480, on each side of hood

2шт.

9

321-996

DECAL

- Case, R.H. hood

1шт.

321-997

DECAL

- Case, L.H. hood

1шт.

10

321-122

DECAL

- warning, pressure cap (On radiator)

1шт.

11

321-1030

DECAL

- shifting (Dual range) L.H. side of dash

1шт.

12

321-948

DECAL

- shifting (4 speed) L.H. side of dash

1шт.

13

321-667

DECAL

- starting, diesel models (R.H. side of dash)

1шт.

14

321-666

DECAL

- starting, gas models (R.H. side of dash)

1шт.

15

321-662

DECAL

- safety, lower or block hydraulically (At loader controls)

1шт.

16

321-229

DECAL

- hydraulic fluid, on R.H. loader frame

1шт.

17

321-1230

DECAL

- control, valve (At loader controls)

1шт.

18

321-1003

DECAL

- CK, on loader lift arm and backhoe dipper arm

4шт.

19

321-1010

DECAL

- Case, loader lift arm and backhoe boom

4шт.

20

321-1234

DECAL

- warning, (At loader controls) Do not roll back bucket

1шт.

21

D30664

DECAL

- controls, backhoe

1шт.
