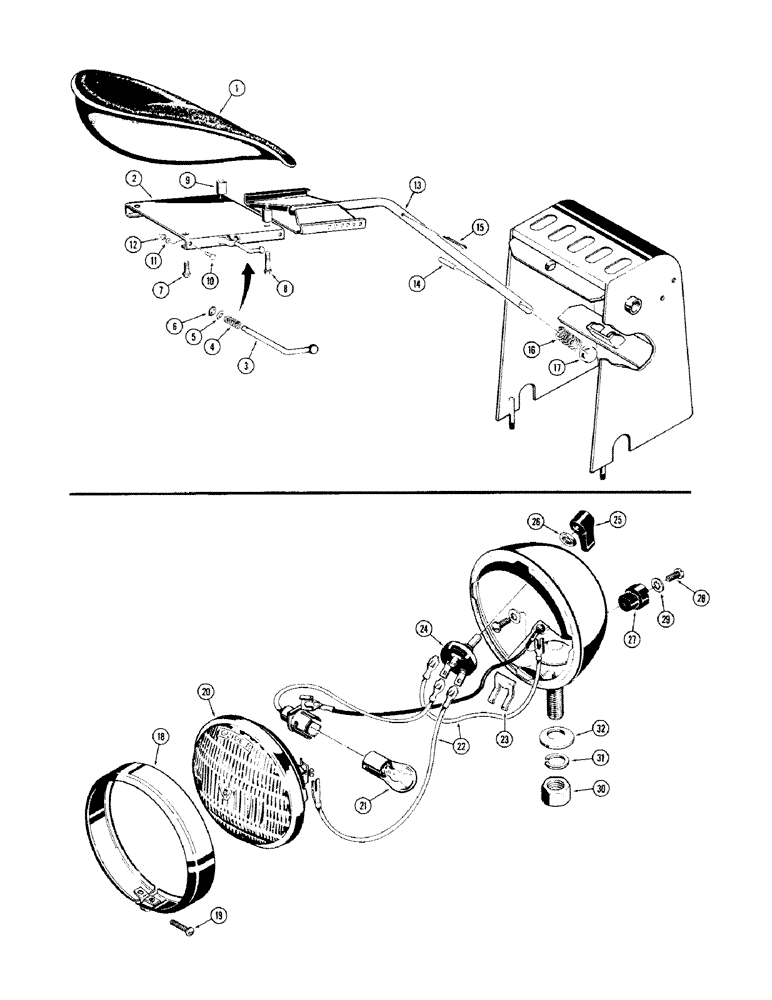

Запчасти Case 480CK (30) - SWING DOWN BACKHOE SEAT (82) - FRONT LOADER & BUCKET

D31309

SEAT

ASSEMBLY - backhoe, swing down, Includes: Ref. 1 - 9

1шт.

1

NSS

NOT SOLD SEPARAT

SEAT - padded

1шт.

2

D31308

ADJUSTER

SLIDE - seat, upper, Includes: Ref. 3 - 6

1шт.

3

D40765

LEVER

- seat adjusting

1шт.

4

D40766

SPRING

- lever

1шт.

5

195-21

WASHER,5/16"

- standard wrot () 5/16"

1шт.

6

A27810

CIRCLIP,#X31, .243" Dia, E-Type

Ring, Retaining, #X31, .243" Dia, E-Type

1шт.

7

13-510

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5, Full Thd

2шт.

8

13-528

BOLT,Hex, 5/16" - 18 x 1-3/4", Gr 5

HHCS - 5/16" - 18 NC x 1-3/4"

2шт.

9

D31306

SPACER

- slide

2шт.

10

13-48

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

2шт.

11

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

12

25-104

NUT,1/4"-20, G5

2шт.

13

D38329

ROD - seat support

1шт.

14

138-210

LOCK PIN,1/2" x 3", Slotted

Pin, 1/2" x 3", Slotted

1шт.

15

132-95

COTTER PIN,3/16" x 1 1/2"

Pin, Split (Cotter), 3/16" x 1 1/2"

1шт.

16

D25773

SPRING

- rod

1шт.

17

B18275

WASHER

- spring retaining

1шт.

A20965

LAMP BASE

LAMP ASSEMBLY - flood and tail, Includes: Ref. 18 - 32

1шт.

18

B50255

MOLDING

- lamp, flood and tail

1шт.

19

10934

BRACKET,Rd Hd, #8 - 32 x 0.625", Stainless

SCREW - molding, flood and tail lamp

1шт.

20

A40855

LAMP BASE

SEALED BEAM - lamp, flood and tail

1шт.

21

B50223

BULB

- lamp, flood and tail

1шт.

22

B50273

WIRE - lamp, flood and tail

2шт.

23

10927

SPRING

- terminal, flood and tail lamp

1шт.

24

B50275

SWITCH

- lamp, flood and tail

1шт.

25

B50310

SWITCH

KNOB - switch, flood and tail lamp

1шт.

26

B50224

SPECIAL NUT

- retaining, switch, flood and tail lamp

1шт.

27

B50293

TERMINAL CONNECTOR

TERMINAL - lamp, insulated, flood and tail

1шт.

28

173-73

SCREW,Sl Rnd Hd, #8 - 32 x 1/4"

- terminal, 7/8" - #4, flood and tail lamp

2шт.

29

193-25

LOCK WASHER,Int Tooth, 0.172" ID x 0.332" OD, STL, PLN

WASHER - shakeproof lock, external tooth (#8), flood and tail lamp

2шт.

30

129-105

NUT,Hex, 1/2" - 13, Gr 5

Flood and tail lamp 1/2"-13, G5

1шт.

31

193-23

LOCK WASHER,Int Tooth, #5

WASHER - med. sect. lock (1/2") Zinc plated, flood and tail lamp

1шт.

32

10923

WASHER

- special, mounting stud, flood and tail lamp

1шт.
