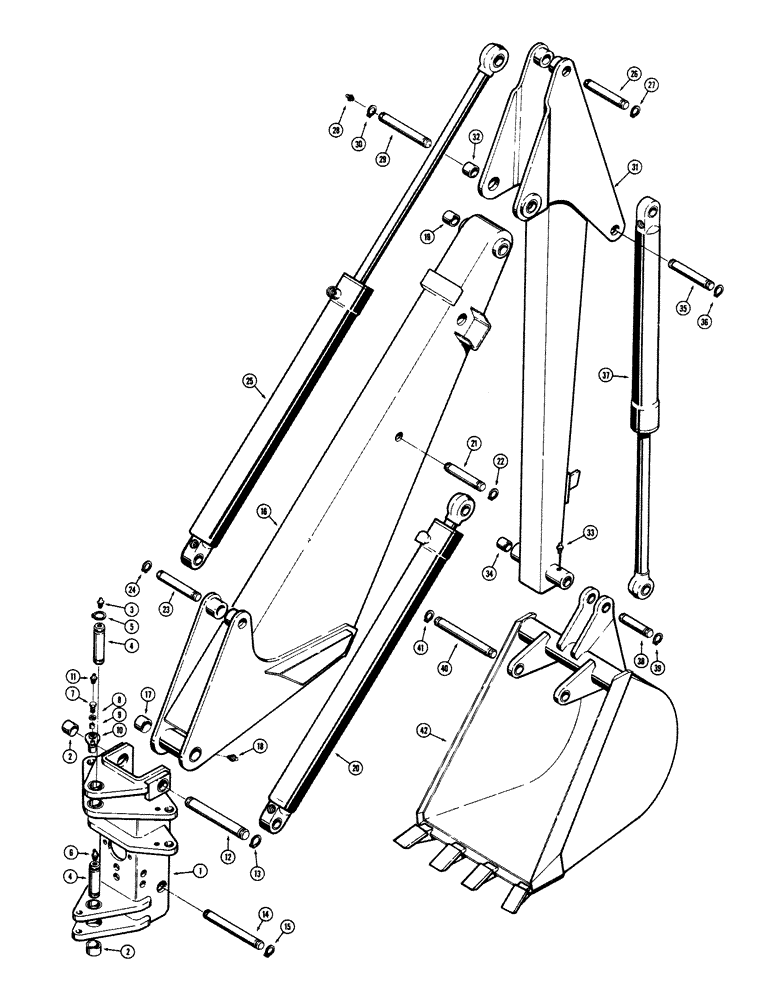

Запчасти Case 480CK (24) - TOWER, BOOM, DIPPER ARM AND BUCKET (82) - FRONT LOADER & BUCKET

1

D27702

TOWER - backhoe swing, Includes: Ref. 2

1шт.

2

D23203

BUSHING

- tower

6шт.

3

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight (1/8" NPT)

1шт.

4

D26114

PIN ASSEMBLY - swing tower to mounting frame, Includes: Ref. 5

2шт.

5

D26919

SNAP RING,#200, Ext

Ring, Snap, #200, Ext

2шт.

6

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

NIPPLE, LUBE, 90º, 1/8" NPT x .84" lg

1шт.

7

14-816

BOLT,Hex, 1/2" - 20 x 1", Gr 5

HHCS - 1/2" - 20 NF x 1"

4шт.

8

193-32

LOCK WASHER,Int Tooth, 1/2"

WASHER, LOCK, Int Tooth, 1/2"

4шт.

9

D23740

BUSHING

- pin head

4шт.

10

D21621

PIN - swing cylinder trunnion

4шт.

11

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight (1/8" NPT)

4шт.

12

D26113

PIN ASSEMBLY - swing tower to boom, Includes: Ref. 13

1шт.

13

D26919

SNAP RING,#200, Ext

Ring, Snap, #200, Ext

2шт.

14

D26106

PIN ASSEMBLY - swing tower to boom cylinder, Includes: Ref. 15

1шт.

15

D26918

SNAP RING,#125, Ext

Ring, Snap, #125, Ext

2шт.

16

D33892

BOOM - backhoe, Includes: Ref. 17 - 19

1шт.

17

D23870

BUSHING

- boom at swing tower

2шт.

18

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight (1/8" NPT)

1шт.

19

D21903

BUSHING

- boom at dipper arm

2шт.

20

D32167

CYLINDER

- hydraulic, boom (3-1/2" dia. x 31-3/4" stroke) Parts list Figure 52

1шт.

21

D26104

PIN

ASSEMBLY - boom cylinder to boom, Includes: Ref. 22

1шт.

22

D26918

SNAP RING,#125, Ext

Ring, Snap, #125, Ext

2шт.

23

D26002

PIN,38.1mm OD x 187.32mm L

ASEMBLY - crowd cylinder to boom, Includes: Ref. 24

1шт.

24

D25279

SNAP RING,M35, Int

RING - retaining

2шт.

25

D28314

CYLINDER ASSY.

CYLINDER - hydraulic, crowd (3-1/2" dia. x 38-3/8" stroke) Parts list Figure 54

1шт.

26

D26112

PIN ASSEMBLY - crowd cylinder to dipper arm, Includes: Ref. 27

1шт.

27

D25279

SNAP RING,M35, Int

RING - retaining

2шт.

28

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight (1/8" NPT)

1шт.

29

D26111

PIN ASSEMBLY - boom to dipper arm, Includes: Ref. 30

1шт.

30

D25279

SNAP RING,M35, Int

RING - retaining

2шт.

31

D33893

DIPPER ARM - backhoe, Includes: Ref. 32 - 34

1шт.

32

D20201

BUSHING

- dipper arm at boom

2шт.

33

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight (1/8" NPT)

2шт.

34

D23444

BUSHING

- dipper arm at bucket

2шт.

35

D26104

PIN

ASSEMBLY - dipper arm to bucket cylinder, Includes: Ref. 36

1шт.

36

D26918

SNAP RING,#125, Ext

Ring, Snap, #125, Ext

2шт.

37

D28331

CYLINDER ASSY.

CYLINDER - hydraulic, bucket (3" dia. x 26-5/8" stroke) Parts list Figure 56

1шт.

38

D26108

PIN ASSEMBLY - bucket cylinder to bucket, Includes: Ref. 39

1шт.

39

D26918

SNAP RING,#125, Ext

Ring, Snap, #125, Ext

2шт.

40

D26107

PIN ASSEMBLY - dipper arm to bucket, Includes: Ref. 41

1шт.

41

D26918

SNAP RING,#125, Ext

Ring, Snap, #125, Ext

2шт.

42

REF

INSTRUCTION

BUCKET - backhoe (See Figure 26 for options)

1шт.
