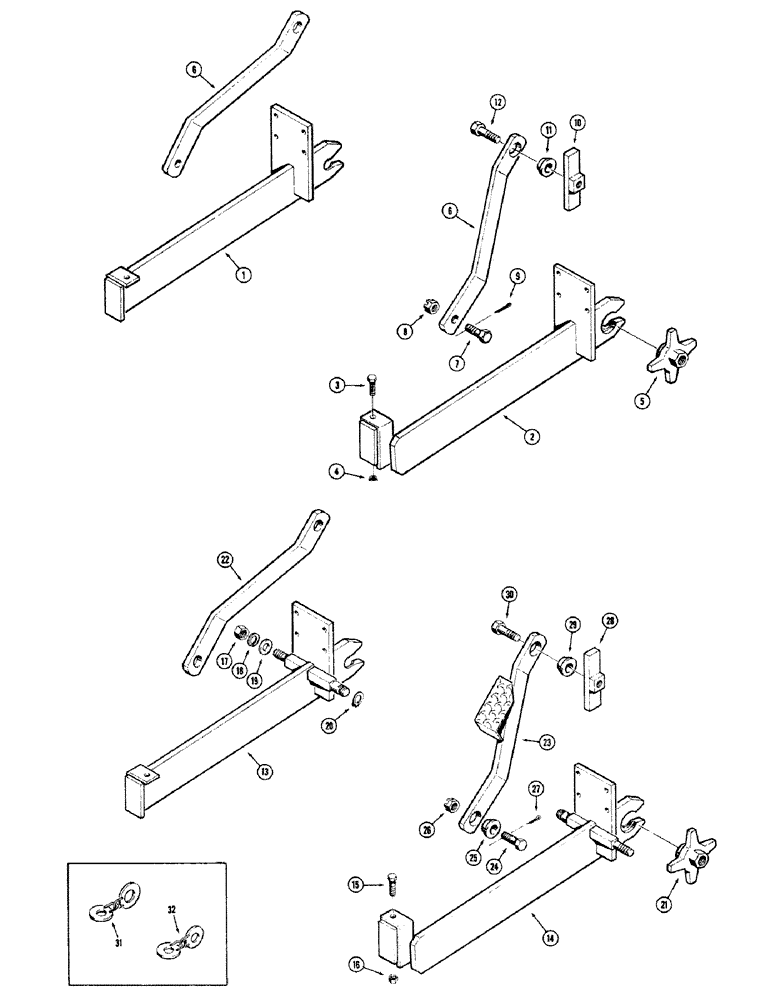

Запчасти Case 480CK (20) - BACKHOE MOUNTING PARTS, USED ON MODELS WITHOUT DRAFT-O-MATIC (82) - FRONT LOADER & BUCKET

1

D35940

ARM

SUPPORT ARM - lower, R.H.

1шт.

2

D35941

ARM

SUPPORT ARM - lower, L.H.

1шт.

3

13-1236

BOLT,Hex, 3/4" - 10 x 2-1/4", Gr 5

2шт.

4

230-41112

LOCK NUT,3/4"-10, GA

NUT - hex., lock (3/4" - 10 NC)

2шт.

5

D34027

NUT

STAR NUT - knockoff

2шт.

6

D30726

ARM

SUPPORT ARM - upper

2шт.

7

D37615

BOLT

BOLT - special

2шт.

8

25-1220

SLOTTED NUT,1 1/4"-12, G5

NUT - hex., slotted (1-1/4" - 7 NC)

2шт.

9

132-157

COTTER PIN,Ext Prong Sq Cut, 1/4" x 2 1/2"

Pin, Split (Cotter), 1/4" x 2 1/2"

2шт.

10

D31496

SPECIAL NUT

NUT - wrench and hammer

2шт.

11

D30717

WASHER

- cone, 15 degrees

2шт.

12

D30716

BOLT

- special

2шт.

13

D37081

SUPPORT ARM - lower, R.H., used on models w/ draft-o-matic

1шт.

14

D37082

SUPPORT ARM - lower, L.H., used on models w/ draft-o-matic

1шт.

15

13-1236

BOLT,Hex, 3/4" - 10 x 2-1/4", Gr 5

Used on models w/ Draft-o-matic Hex, 3/4"-10 x 2 1/4", G5

2шт.

16

230-41112

LOCK NUT,3/4"-10, GA

NUT - hex., lock (3/4" - 10 NC), used on models w/ draft-o-matic

2шт.

17

25-1010

NUT,5/8"-11, G5

Used on models w/ Draft-o-matic 5/8"-11, G5

2шт.

18

92-10

LOCK WASHER,5/8"

WASHER, LOCK, , Used on models w/ Draft-o-matic 5/8"

2шт.

19

95-10

WASHER,5/8"

- plain (), used on models w/ draft-o-matic 5/8"

2шт.

20

B18206

SNAP RING,#87, Ext

Ring, Snap, , used on models with draft-o-matic #87, Ext

2шт.

21

D34027

NUT

STAR NUT - knockoff, used on models w/ draft-o-matic

2шт.

22

D31725

SUPPORT ARM - upper, R.H., used on models w/ draft-o-matic

1шт.

23

D31726

SUPPORT ARM - upper, L.H., used on models w/ draft-o-matic

1шт.

24

D37615

BOLT

BOLT - special, used on models w/ draft-o-matic

2шт.

25

D30717

WASHER

- cone, 15 degrees, used on models w/ draft-o-matic

2шт.

26

25-1220

SLOTTED NUT,1 1/4"-12, G5

NUT - hex., slotted (1-1/4" - 7 NC), used on models w/ draft-o-matic

2шт.

27

132-157

COTTER PIN,Ext Prong Sq Cut, 1/4" x 2 1/2"

Pin, Split (Cotter), , Used on models w/ draft-o-matic 1/4" x 2 1/2"

2шт.

28

D31496

SPECIAL NUT

NUT - wrench and hammer, used on models w/ draft-o-matic

2шт.

29

D30717

WASHER

- cone, 15 degrees, used on models w/ draft-o-matic

2шт.

30

D30716

BOLT

- special, used on models w/ draft-o-matic

2шт.

31

D31718

LINK - transport, R.H., used on models w/ draft-o-matic

1шт.

32

D31720

PIPE

LINK - transport, L.H., used on models w/ draft-o-matic

1шт.
