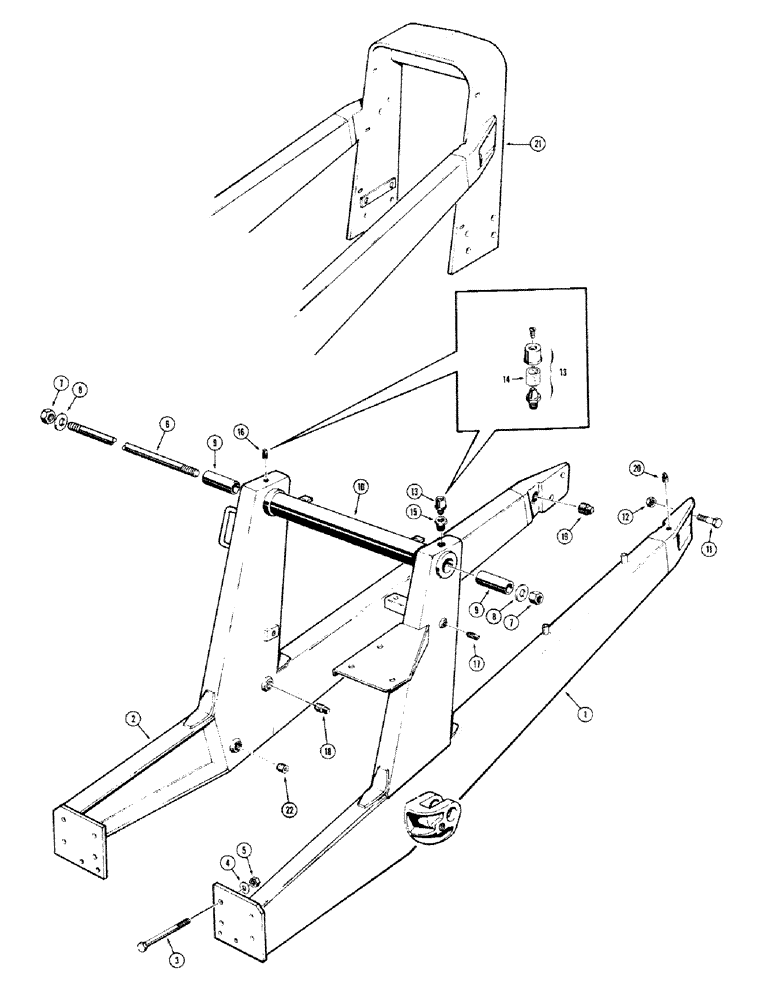

Запчасти Case 480CK (04) - LOADER SUBFRAME AND RELATED PARTS (82) - FRONT LOADER & BUCKET

1

D39735

SUBFRAME - loader, R.H.

1шт.

2

D39736

SUBFRAME - loader, L.H.

1шт.

3

113-639

BOLT

HHCS - 5/8" - 11 NC x 8"

8шт.

4

A28084

WASHER

- special

8шт.

5

129-563

NUT,5/8"-11, G8

- hex., lock (5/8" - 11 NC)

8шт.

6

D39750

TIE-ROD

ROD - tie, subframe

1шт.

7

131-20

LOCK NUT,1"-8, GB

NUT - hex., lock (1" - 8 NC)

2шт.

8

D37732

WASHER,26.99mm ID x 63.5mm OD x 3.57mm Thk

- special

2шт.

9

D39749

BUSHING

- spacer

2шт.

10

D37712

TUBE

- subframe

1шт.

11

13-1236

BOLT,Hex, 3/4" - 10 x 2-1/4", Gr 5

4шт.

12

131-16

LOCK NUT,3/4"-10, GB

LOCKNUT, 3/4"-10, GB

4шт.

13

31543

BREATHER

- hydraulic reservoir, Includes: Ref. 14

1-2шт.

14

T14011

ELEMENT

- breather

1шт.

15

221-62

REDUCER,Hex, 1" x 1/4" NPT

BUSHING - pipe (1" NPT x 1/4" NPT)

1шт.

16

221-12

PLUG,Sq Hd, 1/4"-18

- pipe, square head (1/4" NPT) if used

1шт.

17

221-13

PLUG,Sq Hd, 3/8"-18

- pipe, square head (3/8" NPT)

1шт.

18

221-15

PLUG,Sq Hd, 3/4"-14

- pipe, square head (3/4" NPT)

2шт.

19

221-16

PLUG,Sq Hd, 1"-11 1/2 NPTF

- pipe, square head (1" NPT) if used

1шт.

20

221-12

PLUG,Sq Hd, 1/4"-18

- pipe, square head (1/4" NPT)

1шт.

21

D38284

GUARD - radiator (Gas models only)

1шт.

D38285

GUARD - radiator (Diesel models only)

1шт.

22

221-35

DRAIN PLUG,Sq Soc, 3/4"-14 NPTF

PLUG - pipe, socket head (3/4" NPT)

2шт.
