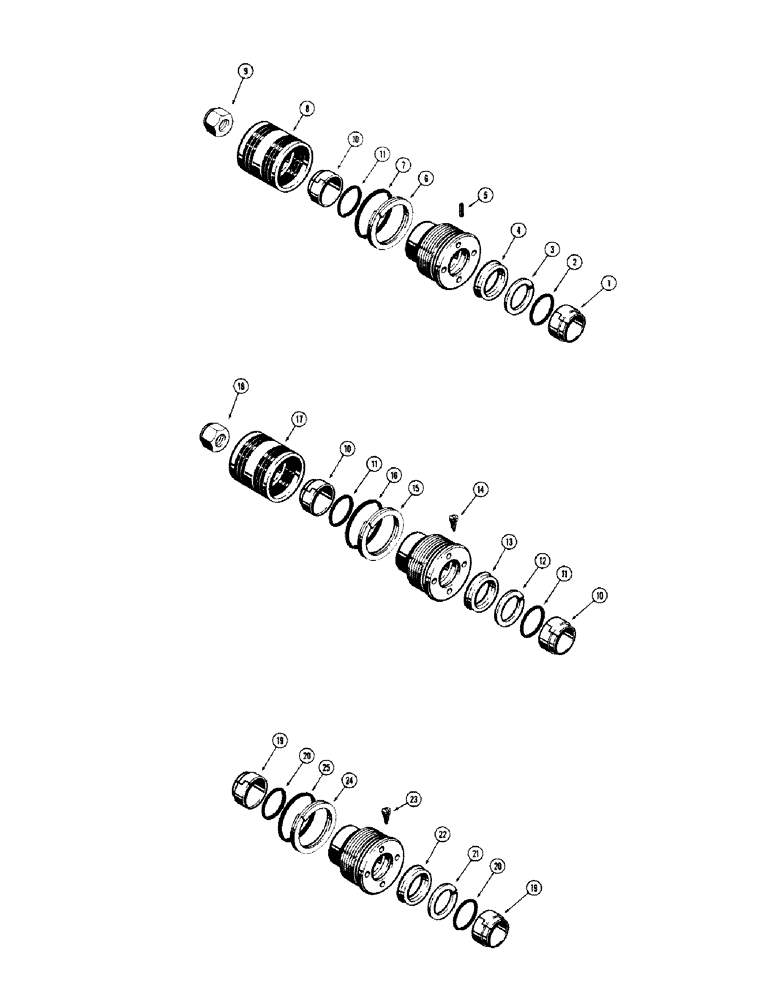

Запчасти Case 480CK (94) - CYLINDER PACKING KITS, USED ON D28314 BACKHOE CROWD CYLINDER, D30133 CYLINDER PACKING KIT (35) - HYDRAULIC SYSTEMS

D30133

X

KIT - complete cylinder packing, gland type (When stock is exhsusted, use D42874 kit for service), Includes: Ref. 1 - 9

1шт.

1

D27380

SCRAPER RING

WIPER - piston rod

2шт.

2

D26115

O-RING,0.139" Thk x 2.109" ID, -227, Cl 5, 75 Duro

SEAL - "O" ring, wiper

2шт.

3

D28500

RING,Split, 50.8mm ID x 63.5mm OD x 1.27mm Thk

- backup, piston rod seal

1шт.

4

D28496

PACKING - piston rod (When stock is exhausted, use D36971 seal for service)

1шт.

5

138-90

LOCK PIN,Sl Spring, 3/16" x 5/8", Hvy

Pin, , use 187-1031 self-tapping screw for service 3/16" x 5/8", Slotted

1шт.

6

D27434

BACK-UP RING,88.9mm ID x 95.25mm OD x 2.21mm Thk

- backup, gland seal

1шт.

7

G15457

O-RING,0.139" Thk x 3.484" ID, -238, Cl 5, 75 Duro

SEAL - "O" ring, gland seal

1шт.

8

D28375

PACKING

- piston (When stock is exhausted, use D36963 packing for service)

1шт.

9

131-19

LOCK NUT,1"-14, GB

NUT - hex., lock (1" - 14 NF)

1шт.

D37357

KIT

- complete cylinder packing, gland type (When stock is exhausted, use D42874 kit for service), Includes: Ref. 10 - 18

1шт.

10

D27380

SCRAPER RING

WIPER - piston rod, D37357 cyl packing kit

2шт.

11

D26115

O-RING,0.139" Thk x 2.109" ID, -227, Cl 5, 75 Duro

SEAL - "O" ring, wiper, D37357 cyl packing kit

2шт.

12

D28500

RING,Split, 50.8mm ID x 63.5mm OD x 1.27mm Thk

- backup, piston rod seal, D37357 cyl packing kit

1шт.

13

D36971

RING

SEAL - piston rod, D37357 cyl packing kit

1шт.

14

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

SCREW - self-tapping, #8 - 32 NC x 1/4", D37357 cyl packing kit

1шт.

15

D27434

BACK-UP RING,88.9mm ID x 95.25mm OD x 2.21mm Thk

- backup, gland seal, D37357 cyl packing kit

1шт.

16

G15457

O-RING,0.139" Thk x 3.484" ID, -238, Cl 5, 75 Duro

SEAL - "O" ring, gland seal, D37357 cyl packing kit

1шт.

17

D36963

PACKING

- piston, D37357 cyl packing kit

1шт.

18

131-19

LOCK NUT,1"-14, GB

NUT - hex., lock (1" - 14 NF), D37357 cyl packing kit

1шт.

D42874

PACKING GLAND

KIT - gland packing, Includes: Ref. 19 - 25

1шт.

19

D27380

SCRAPER RING

WIPER - piston rod, D42874 gland packing kit

2шт.

20

D26115

O-RING,0.139" Thk x 2.109" ID, -227, Cl 5, 75 Duro

SEAL - "O" ring, wiper D42874 gland packing kit

2шт.

21

D28500

RING,Split, 50.8mm ID x 63.5mm OD x 1.27mm Thk

- backup, piston rod seal D42874 gland packing kit

1шт.

22

D36971

RING

SEAL - piston rod D42874 gland packing kit

1шт.

23

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

SCREW - self-tapping, #8 - 32 NC x 1/4" D42874 gland packing kit

1шт.

24

D27434

BACK-UP RING,88.9mm ID x 95.25mm OD x 2.21mm Thk

- backup, gland seal D42874 packing kit

1шт.

25

G15457

O-RING,0.139" Thk x 3.484" ID, -238, Cl 5, 75 Duro

SEAL - "O" ring, gland seal D42874 packing kit

1шт.
