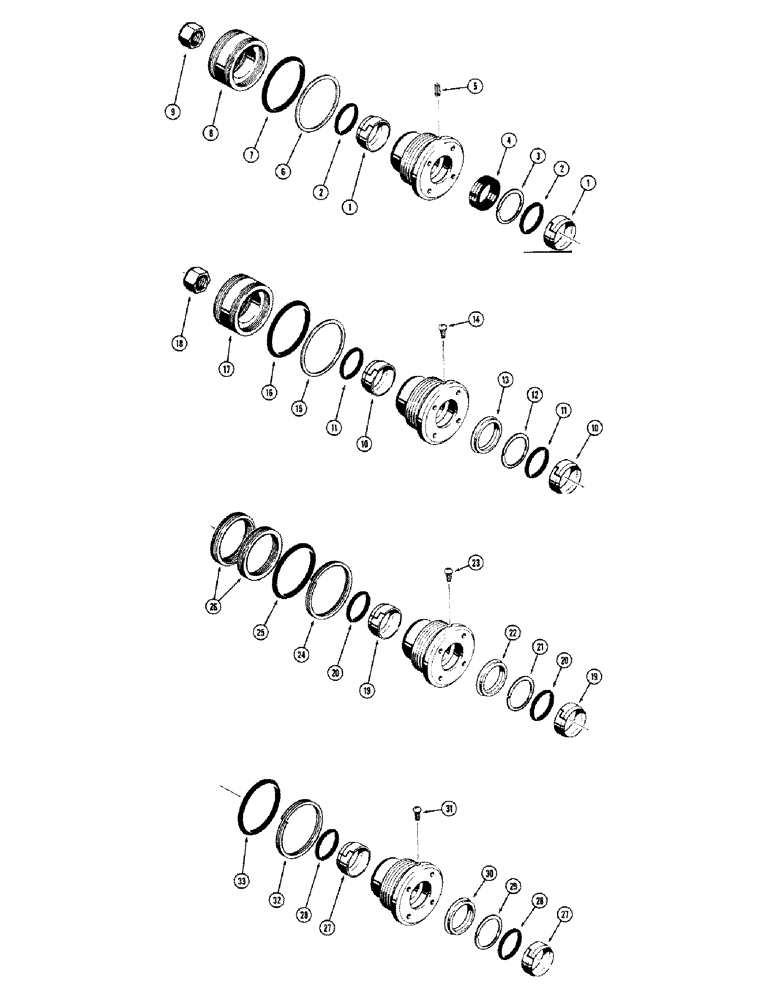

Запчасти Case 480CK (92) - CYLINDER PACKING KITS, USED ON D32167 BACKHOE BOOM CYLINDER, D30132 CYLINDER PACKING KIT (35) - HYDRAULIC SYSTEMS

D30132

X

KIT - complete cylinder packing, gland type (When stock is exhausted, use D42873 kit for service), Includes: Ref. 1 - 9

1шт.

1

D27432

SHIM

- piston rod

2шт.

2

A14515

O-RING,0.139" Thk x 1.859" ID, -225, Cl 5, 75 Duro

SEAL - "O" ring, wiper

2шт.

3

D28499

RING

- backup, piston rod seal

1шт.

4

D28495

PACKING

- piston rod (When stock is exhausted, use D36970 seal for service)

1шт.

5

138-90

LOCK PIN,Sl Spring, 3/16" x 5/8", Hvy

Pin, , use 187-1031 self-tapping screw for service 3/16" x 5/8", Slotted

1шт.

6

D27434

BACK-UP RING,88.9mm ID x 95.25mm OD x 2.21mm Thk

- backup, gland seal

1шт.

7

G15457

O-RING,0.139" Thk x 3.484" ID, -238, Cl 5, 75 Duro

SEAL - "O" ring, gland seal

1шт.

8

D28375

PACKING

- piston (When stock is exhausted, use D36963 packing for service)

1шт.

9

131-19

LOCK NUT,1"-14, GB

NUT - hex., lock (1" x 14 NF)

1шт.

D37356

GLAND

KIT - complete cylinder packing, gland type (When stock is exhausted, use D42873 kit for service), Includes: Ref. 10 - 18

1шт.

10

D27432

SHIM

- piston rod, D37356 cyl packing kit

2шт.

11

A14515

O-RING,0.139" Thk x 1.859" ID, -225, Cl 5, 75 Duro

SEAL - "O" ring, wiper, D37356 cyl packing kit

2шт.

12

D28499

RING

- backup, piston rod seal, D37356 cyl packing kit

1шт.

13

D36970

CUP

SEAL - piston rod, D37356 cyl packing kit

1шт.

14

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

SCREW - self-tapping #8 - 32 NC x 1/4", D37356 cyl packing kit

1шт.

15

D27434

BACK-UP RING,88.9mm ID x 95.25mm OD x 2.21mm Thk

- backup, gland seal, D37356 cyl packing kit

1шт.

16

G15457

O-RING,0.139" Thk x 3.484" ID, -238, Cl 5, 75 Duro

SEAL - "O" ring, gland seal, D37356 cyl packing kit

1шт.

17

D36963

PACKING

PISTON - packing, D37356 cyl packing kit

1шт.

18

131-19

LOCK NUT,1"-14, GB

NUT - hex., lock (1" x 14 NF), D37356 cyl packing kit

1шт.

D41399

SEAL KIT

KIT - complete cylinder packing, gland type (When stock is exhausted, use D42873 kit for service), Includes: Ref. 19 - 26

1шт.

19

D27432

SHIM

- piston rod, D41399 gland packing kit

2шт.

20

A14515

O-RING,0.139" Thk x 1.859" ID, -225, Cl 5, 75 Duro

SEAL - "O" ring, wiper, D41399 gland packing kit

2шт.

21

D28499

RING

- backup, piston rod seal, D41399 gland packing kit

1шт.

22

D36970

CUP

SEAL - piston rod, D41399 gland packing kit

1шт.

23

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

SCREW - self-tapping, #8 - 32 NC x 1/4", D41399 gland packing kit

1шт.

24

D27434

BACK-UP RING,88.9mm ID x 95.25mm OD x 2.21mm Thk

- backup, gland seal, D41399 packing kit

1шт.

25

G15457

O-RING,0.139" Thk x 3.484" ID, -238, Cl 5, 75 Duro

SEAL - "O" ring, gland seal, D41399 packing kit

1шт.

26

D41278

PACKING

PISTON - packing (Use with D41279 packing ring)

2шт.

D42873

GASKET KIT

KIT - gland packing, Includes: Ref. 27 - 33

1шт.

27

D27432

SHIM

- piston rod, D42873 gland packing kit

2шт.

28

A14515

O-RING,0.139" Thk x 1.859" ID, -225, Cl 5, 75 Duro

SEAL - "O" ring, wiper, D42873 gland packing kit

2шт.

29

D28499

RING

- backup, piston rod seal, D42873 gland packing kit

1шт.

30

D36970

CUP

SEAL - piston rod, D42873 gland packing kit

1шт.

31

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

SCREW - self-tapping #8 - 32 NC x 1/4", D42873 gland packing kit

1шт.

32

D27434

BACK-UP RING,88.9mm ID x 95.25mm OD x 2.21mm Thk

- backup, gland seal, D42873 gland packing kit

1шт.

33

G15457

O-RING,0.139" Thk x 3.484" ID, -238, Cl 5, 75 Duro

SEAL - "O" ring, gland seal, D42873 gland packing kit

1шт.
