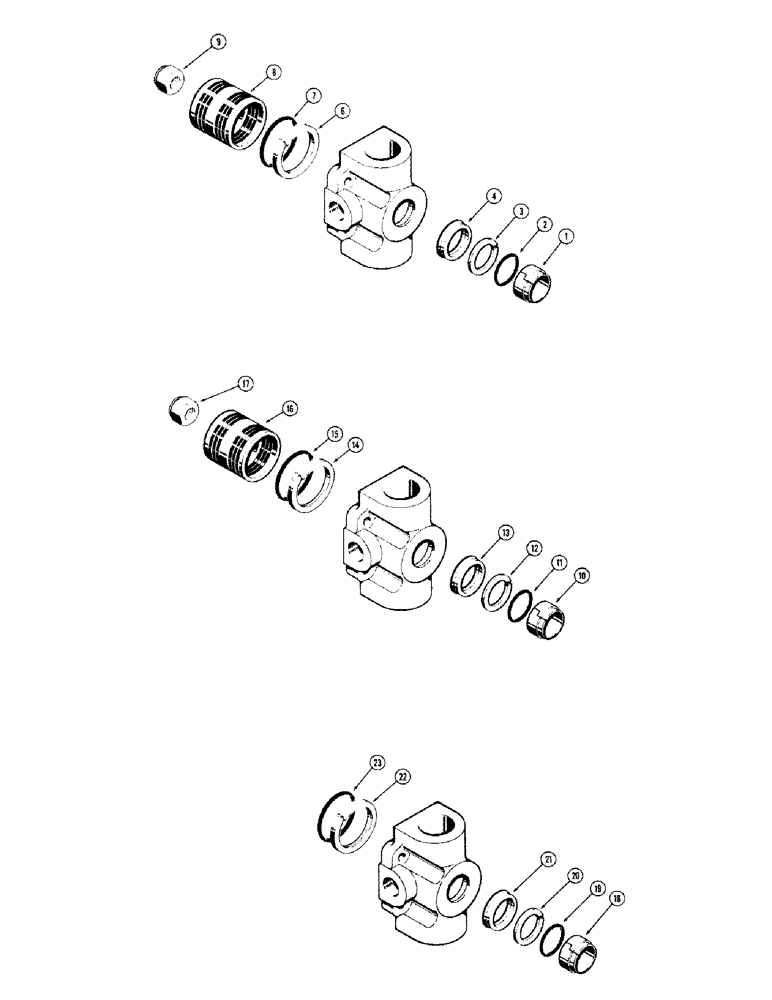

Запчасти Case 480CK (84) - CYLINDER PACKING KITS, USED ON D28325 & D28326 BACKHOE SWING CYLINDERS, D30127 CYLINDER PACKING KIT (35) - HYDRAULIC SYSTEMS
№
Артикул
Название
Примечание
Количество
D30127
X
KIT - complete cylinder packing, gland type (When stock is exhausted, use D42868 kit for service), Includes: Ref. 1 - 9
1шт.
1
D27705
WIPER
- piston rod
1шт.
2
A30915
O-RING,0.139" Thk x 1.359" ID, -220, Cl 5, 75 Duro
SEAL - "O" ring, wiper
1шт.
3
D28497
RING
- backup, piston rod seal
1шт.
4
D28493
X
PACKING - piston rod (When stock is exhausted, use D36968 for service)
1шт.
5
RESERVED
1шт.
6
D24985
RING
- backup, gland seal
1шт.
7
49382
GUARD,2.244" ID x 2 1" OD x 0.139"
SEAL - "O" ring, gland seal
1шт.
8
D28373
PACKING
- piston
1шт.
9
131-15
LOCK NUT,3/4"-16, GB
NUT, LOCK, 3/4"-16, GB
1шт.
D37351
X
KIT - complete cylinder packing, gland type (When stock is exhausted, use D42868 kit for service), Includes: Ref. 10 - 17
1шт.
10
D27705
WIPER
- piston rod, D37351 cyl packing kit
1шт.
11
A30915
O-RING,0.139" Thk x 1.359" ID, -220, Cl 5, 75 Duro
SEAL - "O" ring, wiper, D37351 cyl packing kit
1шт.
12
D28497
RING
- backup, piston rod seal, D37351 cyl packing kit
1шт.
13
D36968
SEAL,31.72mm ID x 44.58mm OD x 10.69mm Thk
- piston rod, D37351 cyl packing kit
1шт.
14
D24985
RING
- backup, gland seal, D37351 cyl packing kit
1шт.
15
49382
GUARD,2.244" ID x 2 1" OD x 0.139"
SEAL - "O" ring, gland seal, D37351 cyl packing kit
1шт.
16
D28373
PACKING
- piston, D37351 cyl packing kit
1шт.
17
131-15
LOCK NUT,3/4"-16, GB
NUT, LOCK, , D37351 cyl packing kit 3/4"-16, GB
1шт.
D42868
GLAND
KIT - gland packing, Includes: Ref. 18 - 23
1шт.
18
D27705
WIPER
- piston rod, D42868 gland packing kit
1шт.
19
A30915
O-RING,0.139" Thk x 1.359" ID, -220, Cl 5, 75 Duro
SEAL - "O" ring, wiper, D42868 gland packing kit
1шт.
20
D28497
RING
- backup, piston rod seal, D42868 gland packing kit
1шт.
21
D36968
SEAL,31.72mm ID x 44.58mm OD x 10.69mm Thk
- piston rod, D42868 gland packing kit
1шт.
22
D24985
RING
- backup, gland seal, D42868 gland packing kit
1шт.
23
49382
GUARD,2.244" ID x 2 1" OD x 0.139"
SEAL - "O" ring, gland seal, D42868 gland packing kit
1шт.
Выбрано товаров: 26
