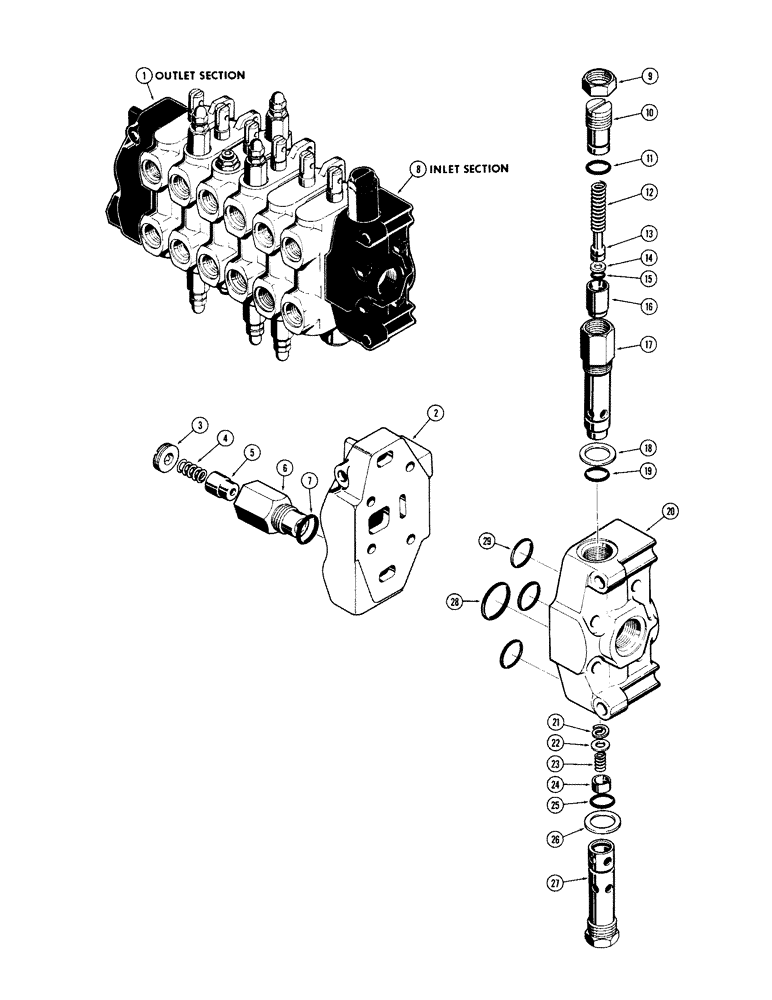

Запчасти Case 480CK (66) - D34210 BACKHOE OUTLET SECTION (35) - HYDRAULIC SYSTEMS

1

D34210

OUTLET SECTION - backhoe control valve, Includes: Ref. 2 - 7

1шт.

2

NSS

NOT SOLD SEPARAT

HOUSING - outlet section

1шт.

D34211

VALVE - relief, regeneration, Includes: Ref. 3 - 7

1шт.

3

D34214

RETAINER - poppet

1шт.

4

D34212

SPRING - poppet

1шт.

5

D34215

POPPET - valve

1шт.

6

NSS

NOT SOLD SEPARAT

SHELL - valve

1шт.

7

D34213

SEAL

- "O" ring

1шт.

8

D31415

INLET SECTION - backhoe control valve, Includes: Ref. 9 - 29

1шт.

D31989

CARTRIDGE

- relief, Includes: Ref. 9 - 19

1шт.

9

D26850

NUT

- lock, adjusting screw

1шт.

10

D26849

SCREW - spring adjusting

1шт.

11

D31410

O-RING,0.103" Thk x 0.674" ID, -115, Cl 6, 90 Duro

SEAL - "O" ring, adjusting screw

1шт.

12

D32578

SPRING - compression

1шт.

13

D26852

PLUNGER - displacement

1шт.

14

D26853

BACK-UP RING

RING - backup

1шт.

15

A11026

GASKET

SEAL - "O" ring, plunger

1шт.

16

D31990

SEAT

- floating

1шт.

D32196

KIT

SHELL ASSEMBLY - cartridge, Includes: Ref. 17 - 19

1шт.

17

NSS

NOT SOLD SEPARAT

SHELL - cartridge

1шт.

18

D30681

GASKET

WASHER - gasket

1шт.

19

D31410

O-RING,0.103" Thk x 0.674" ID, -115, Cl 6, 90 Duro

SEAL - "O" ring

1шт.

20

NSS

NOT SOLD SEPARAT

HOUSING - inlet section

1шт.

D31416

LOCK VALVE

VALVE ASSEMBLY - check, Includes: Ref. 21 - 27

1шт.

21

D26858

RING, SNAP

RING - spirolox

1шт.

22

D31420

RING

RETAINER - spring

1шт.

23

D31419

SPRING

- check valve

1шт.

24

D31418

VALVE POPPET

POPPET - check valve

1шт.

25

D31410

O-RING,0.103" Thk x 0.674" ID, -115, Cl 6, 90 Duro

SEAL - "O" ring

1шт.

26

D30681

GASKET

- cartridge

1шт.

27

D31417

CARTRIDGE

- check valve

1шт.

28

D26820

O-RING,0.103" Thk x 1.549" ID, -129, Cl 5, 75 Duro

SEAL - "O" ring, 1-9/16" I.D. x 1-3/4" O.D.

1шт.

29

D26819

O-RING,1.299" ID x 1.505" OD

SEAL - "O" ring, 1-5/16" I.D. x 1-1/2" O.D.

3шт.
