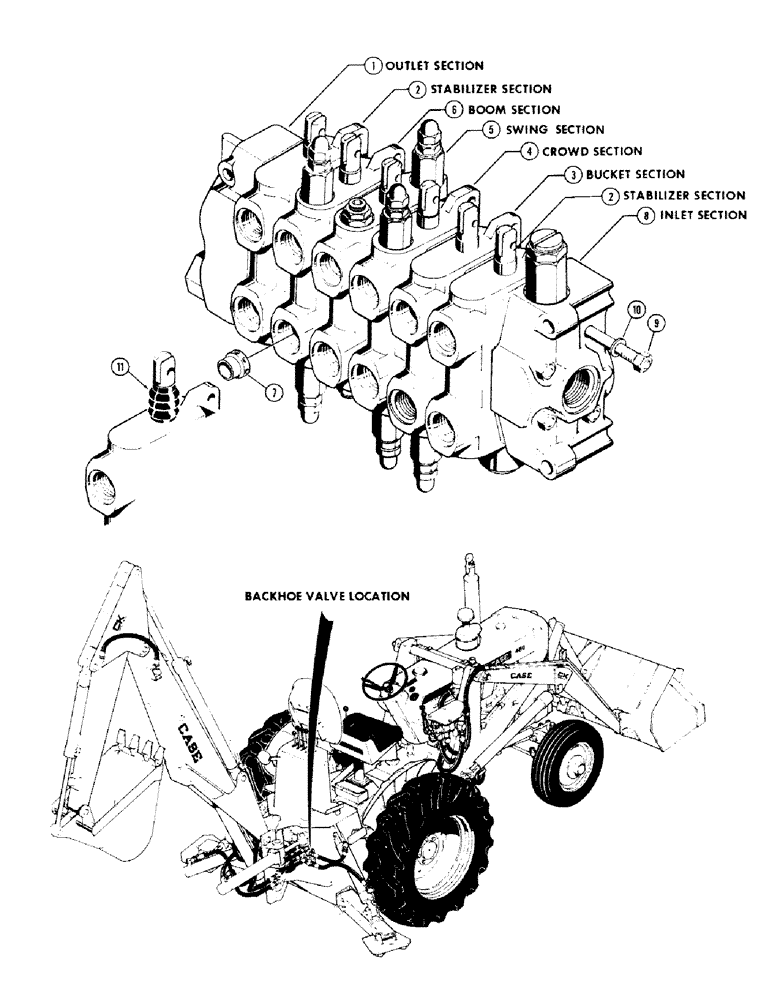

Запчасти Case 480CK (64) - D33778 BACKHOE CONTROL VALVE (35) - HYDRAULIC SYSTEMS

D33778

VALVE - backhoe control, Includes: Ref. 1 - 10

1шт.

1

D34210

OUTLET SECTION - backhoe control valve (Parts list Figure 66)

1шт.

2

D34206

STABILIZER SECTION - backhoe control valve (Parts list Figure 68)

2шт.

3

D34207

VALVE BLOCK

BUCKET SECTION - backhoe control valve (Parts list Figure 70)

1шт.

4

D36813

VALVE BLOCK

CROWD SECTION - backhoe control valve (Parts list Figure 72)

1шт.

5

D34208

SWING SECTION - backhoe control valve (Parts list Figure 74)

1шт.

6

D40814

BOOM SECTION - backhoe control valve (Parts list Figure 78)

1шт.

7

D34243

X

RESTRICTOR - boom drop, boom section only

1шт.

8

D31415

INLET SECTION - backhoe control valve (Parts list Figure 66)

1шт.

9

D26846

STUD

ASSEMBLY - backhoe control valve

4шт.

10

195-25

WASHER,3/8"

- plain (13/32")

4шт.

11

D42631

BELLOWS

- spool (Service option)

5шт.
