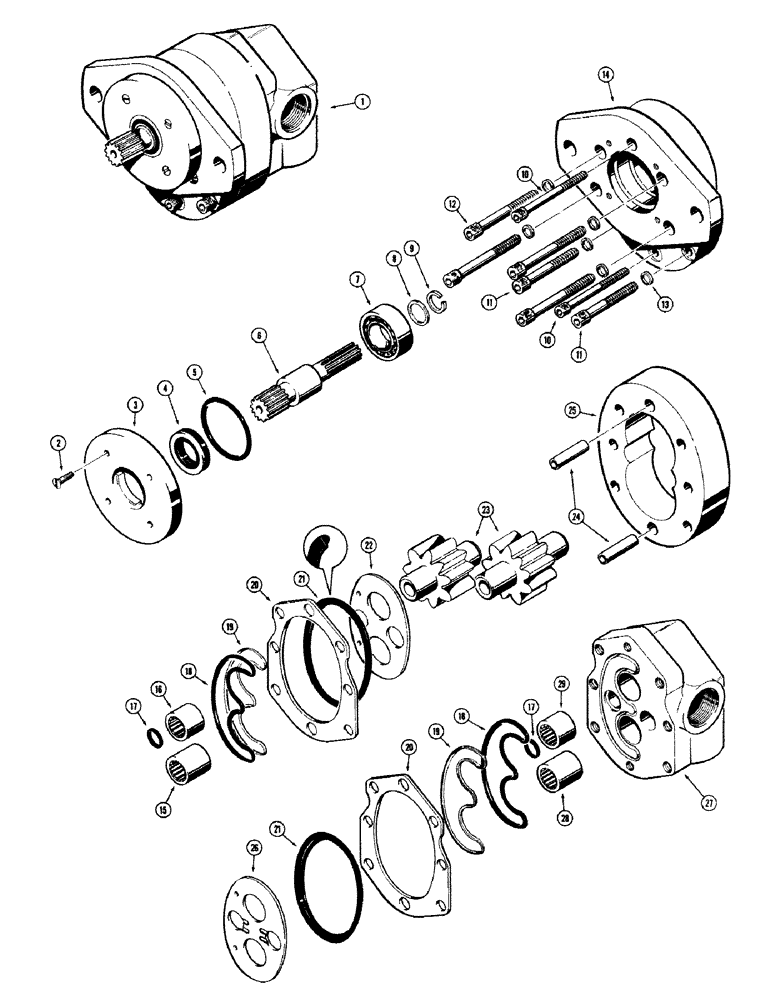

Запчасти Case 480CK (58) - D33702 LOADER PUMP (35) - HYDRAULIC SYSTEMS
№
Артикул
Название
Примечание
Количество
1
D33702
X
PUMP - hydraulic, loader models only (13.5 G.P.M at 1750 R.P.M. at 1750 P.S.I.) Webster #3JDS1-1L, Includes: Ref. 2 - 29
1шт.
2
171-212
SCREW,Sl Flat Hd, #10 - 24 x 5/8"
- flat head machine (#10 - 24 NC x 5/8")
4шт.
D33885
PLATE
ASSEMBLY - pilot, Includes: Ref. 3 and 4
1шт.
3
NSS
NOT SOLD SEPARAT
PLATE - pilot
1шт.
4
D24047
SEAL
- oil, shaft
1шт.
5
D28965
O-RING,0.103" Thk x 2.112" ID, -138, Cl 5, 75 Duro
SEAL - "O" ring, pilot plate
1шт.
6
D34216
SHAFT - drive
1шт.
7
O5903AB
BEARING, BALL
BEARING - ball
1шт.
9
14217
RING
- retaining
1шт.
10
61-448
HEX SOC SCREW,1/4"-20 x 3"
SHCS - 1/4" - 20 NC x 3"
2шт.
11
61-540
SHCS - 5/16" - 18 NC x 2-1/2"
2шт.
13
92-5
LOCK WASHER,5/16"
6шт.
D34218
COVER ASSEMBLY - pump, shaft end, Includes: Ref. 14 - 16
1шт.
14
NSS
NOT SOLD SEPARAT
COVER - pump, shaft end
1шт.
15
A28244
NEEDLE BEARING,Needle, 22.23mm ID x 28.57mm OD x 25.4mm W
BEARING - needle, driven gear
1шт.
16
G10642
NEEDLE BEARING,Needle, 22.23mm ID x 28.57mm OD x 19.05mm W
BEARING - needle, drive gear
1шт.
17
D28964
O-RING
SEAL - "O" ring, pocket
2шт.
18
D28727
SEAL - retaining plate
2шт.
19
D28730
- backup, plastic
2шт.
20
D28725
PLATE - retaining, wear plate
2шт.
21
D28726
SEAL - retaining plate
2шт.
22
D28729
WEAR PLATE
PLATE - wear, shaft end
1шт.
23
D34450
GEAR SET - drive and driven
1шт.
24
D29412
PIN - dowel
2шт.
25
D34449
HOUSING - gear
1шт.
26
D28728
WEAR PLATE
PLATE - wear, port end
1шт.
D34448
COVER ASSEMBLY - pump, port end, Includes: Ref. 27 - 29
1шт.
27
NSS
NOT SOLD SEPARAT
COVER - pump, port end
1шт.
28
A28244
NEEDLE BEARING,Needle, 22.23mm ID x 28.57mm OD x 25.4mm W
BEARING - needle, driven gear
1шт.
29
G10642
NEEDLE BEARING,Needle, 22.23mm ID x 28.57mm OD x 19.05mm W
BEARING - needle, drive gear
1шт.
