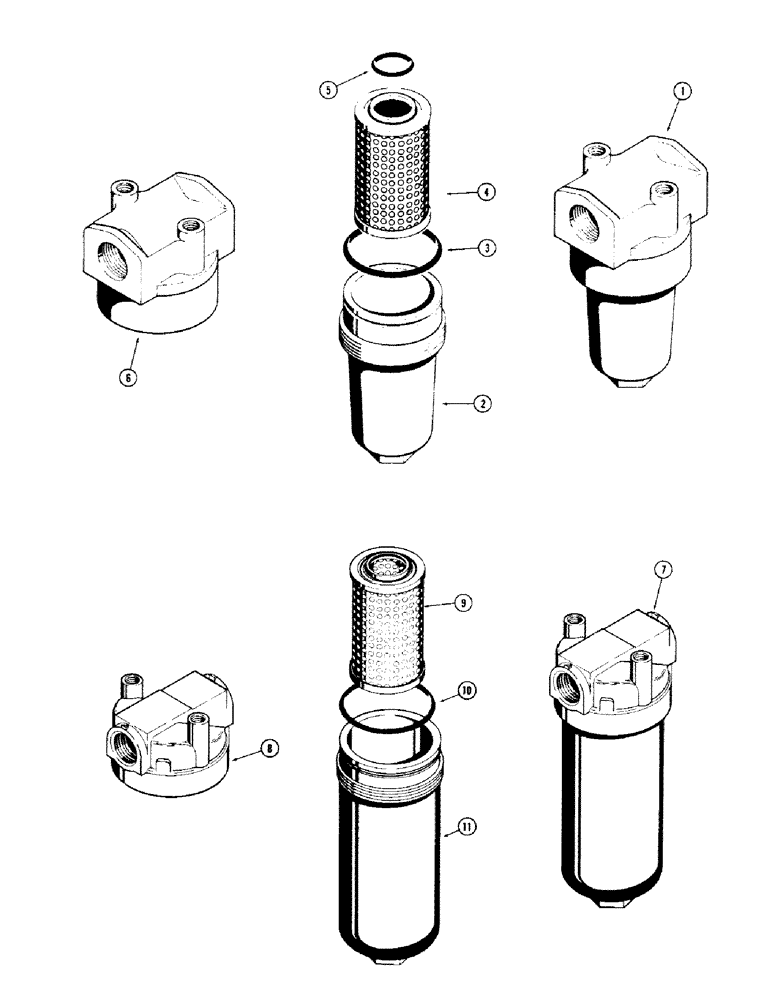

Запчасти Case 480CK (57A) - D32254 HYDRAULIC FILTER (35) - HYDRAULIC SYSTEMS

1

D32254

FILTER ASSY

- hydraulic oil (When stock is exhausted, use D43567 filter for service), Includes: Ref. 2 - 6

1шт.

2

R20645

HOUSING

- filter

1шт.

D32212

FILTER, ELEMENT

ELEMENT KIT - filter, Includes: Ref. 3 - 5

1шт.

3

A27994

O-RING,0.139" Thk x 3.234" ID, -236, Cl 5, 75 Duro

SEAL - "O" ring

1шт.

4

NSS

NOT SOLD SEPARAT

ELEMENT - filter, Includes: Ref. 5

1шт.

5

A27577

O-RING,0.139" Thk x 1.234" ID, -218, Cl 5, 75 Duro

SEAL - "O" ring

1шт.

6

D31874

HEAD

- filter

1шт.

7

D43567

FILTER ASSY

- hydraulic oil, Includes: Ref. 8 - 11

1шт.

(Under 43567 Hyd Filter) Add D49377 Valve, By-pass

1шт.

8

D42440

FILTER HEAD

HEAD - filter, D43567 hyd

1шт.

D43800

FILTER, ELEMENT

ELEMENT KIT - filter, D43567 hyd, Includes: Ref. 9 and 10

1шт.

9

NSS

NOT SOLD SEPARAT

ELEMENT - filter, D43567 hyd

1шт.

10

A27994

O-RING,0.139" Thk x 3.234" ID, -236, Cl 5, 75 Duro

SEAL - "O" ring, D43567 hyd filter

1шт.

11

D42439

HOUSING

- filter, D43567 hyd

1шт.
