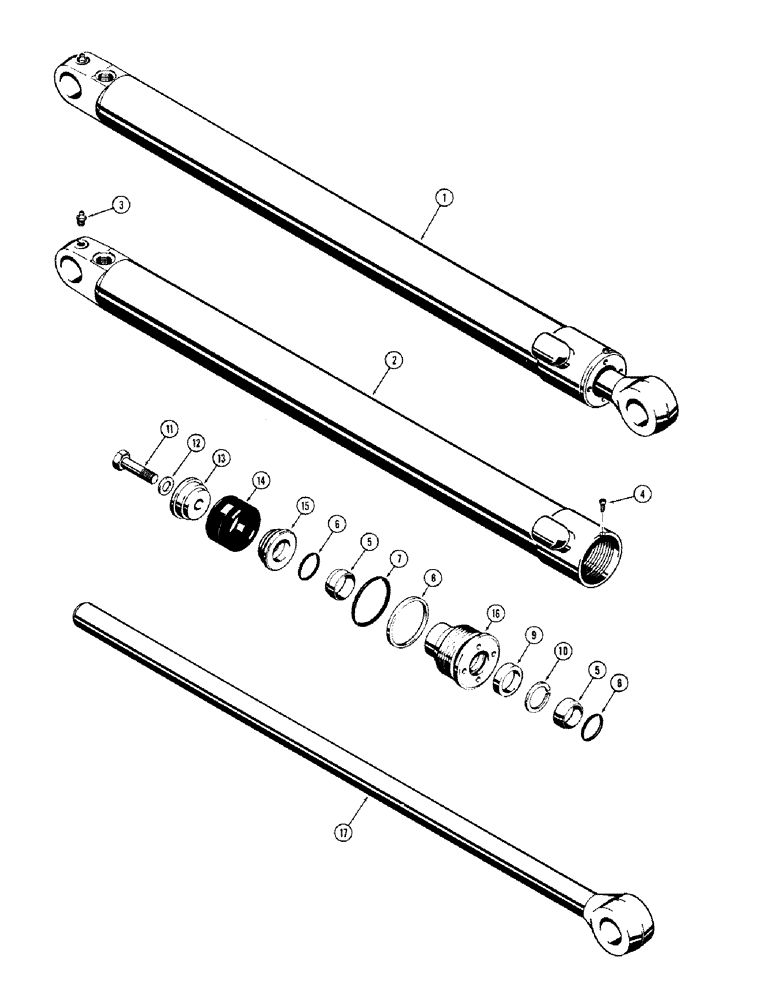

Запчасти Case 480CK (46) - D33440 AND D33441 LOADER LIFT CYLINDERS (35) - HYDRAULIC SYSTEMS

1

G33413,

CYLINDER - hydraulic, R.H. loader lift (2-1/2" dia. x 31-7/16" stroke), Includes: Ref. 2 - 17

1шт.

G33414,

CYLINDER - hydraulic, L.H. loader lift (2-1/2" dia. x 31-7/16" stroke), Includes: Ref. 2 - 17

1шт.

2

D33446

TUBE - cylinder, R.H.

1шт.

D33447

TUBE - cylinder, L.H.

1шт.

3

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - greasde, straight (1/8" NPT)

1шт.

D42869

GASKET KIT

KIT - packing, gland, Includes: Ref. 4 - 10

1шт.

4

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

SCREW - self-tapping, #8 - 32 NC x 1/4"

1шт.

5

D27706

WIPER SEAL

WIPER - rod

2шт.

6

D27878

O-RING,1.609" ID x 1.887" OD

SEAL - "O" ring, wiper (Use on D27999 gland only)

2шт.

7

A28318

O-RING,0.139" Thk x 2.484" ID, -230, Cl 5, 75 Duro

SEAL - "O" ring, gland

1шт.

8

D27856

RING

- backup, gland seal

1шт.

9

D36969

CUP

SEAL - rod

1шт.

10

D28498

RING

- backup, rod seal

1шт.

11

D29306

BOLT

- special

1шт.

12

D34666

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

- special

1шт.

13

D28364

PISTON

- split, bolt end

1шт.

14

D28373

PACKING

- piston

1шт.

15

D28363

PISTON

- split, eye end

1шт.

16

D27999

GLAND

- packing (When stock is exhausted, use D45066 gland for service)

1шт.

D45066

GLAND

- packing

1шт.

17

D33442

ROD

- piston (1-1/2")

1шт.
