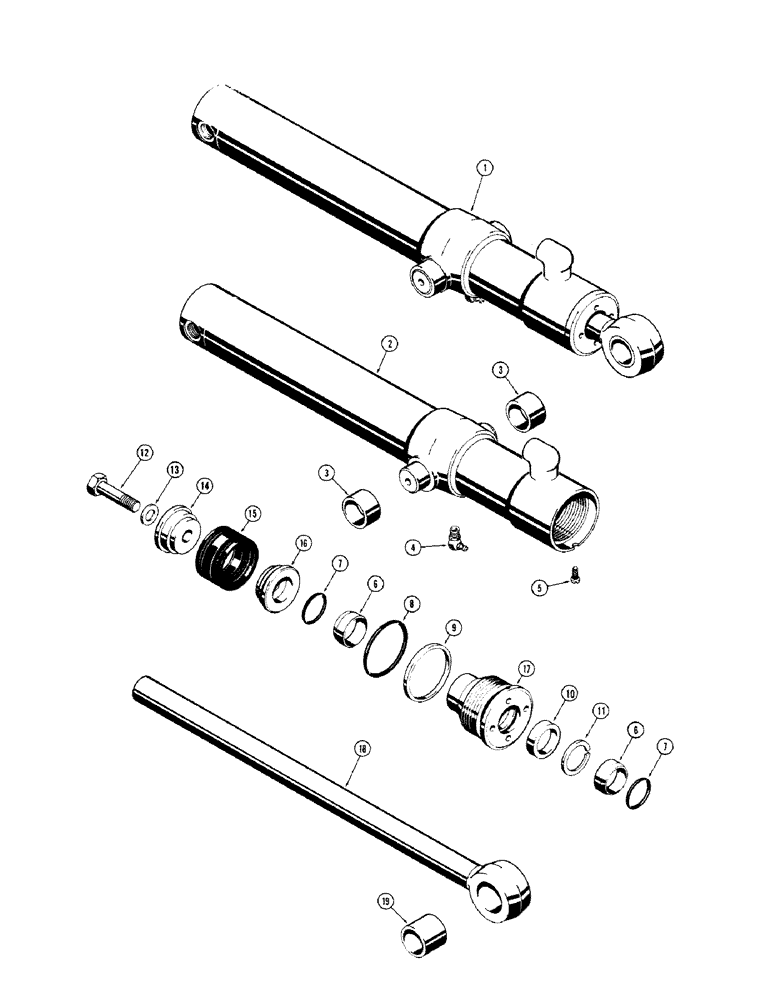

Запчасти Case 480CK (44) - D36751 LOADER DUMP CYLINDER (35) - HYDRAULIC SYSTEMS

1

D36751

CYLINDER - hydraulic, loader dump (3" dia. x 20" stroke), Includes: Ref. 2 - 19

1шт.

2

D33438

TUBE - cylinder, Includes: Ref. 3

1шт.

3

D31511

BUSHING

- tube

2шт.

4

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

NIPPLE, LUBE, 90º, 1/8" NPT x .84" lg

1шт.

D42870

GASKET KIT

KIT - packing, gland, Includes: Ref. 5 - 11

1шт.

5

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

SCREW - self-tapping, #8 - 32 NC x 1/4"

1шт.

6

D27706

WIPER SEAL

WIPER - rod

2шт.

7

D27878

O-RING,1.609" ID x 1.887" OD

SEAL - "O" ring, wiper (Use on D28048 gland only)

2шт.

8

A30095

O-RING,0.139" Thk x 2.984" ID, -234, Cl 5, 75 Duro

SEAL - "O" ring, gland

1шт.

9

D28049

RING

- backup, gland seal

1шт.

10

D36969

CUP

SEAL - rod

1шт.

11

D28498

RING

- backup, rod seal

1шт.

12

D29306

BOLT

- special

1шт.

13

D34666

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

- special

1шт.

14

D28366

PISTON

- split, bolt end

1шт.

15

D28374

PACKAGE,SERVICE

PACKING - piston

1шт.

16

D28365

PISTON

- split, eye end

1шт.

17

D28048

GLAND

- packing (When stock is exhausted, use D45067 gland for service)

1шт.

D45067

GLAND

- packing

1шт.

18

D32146

ROD

- piston (1-1/2" dia.), Includes: Ref. 19

1шт.

19

D30929

BUSHING,38.33mm ID x 47.63mm OD x 38.1mm L

- rod

1шт.
