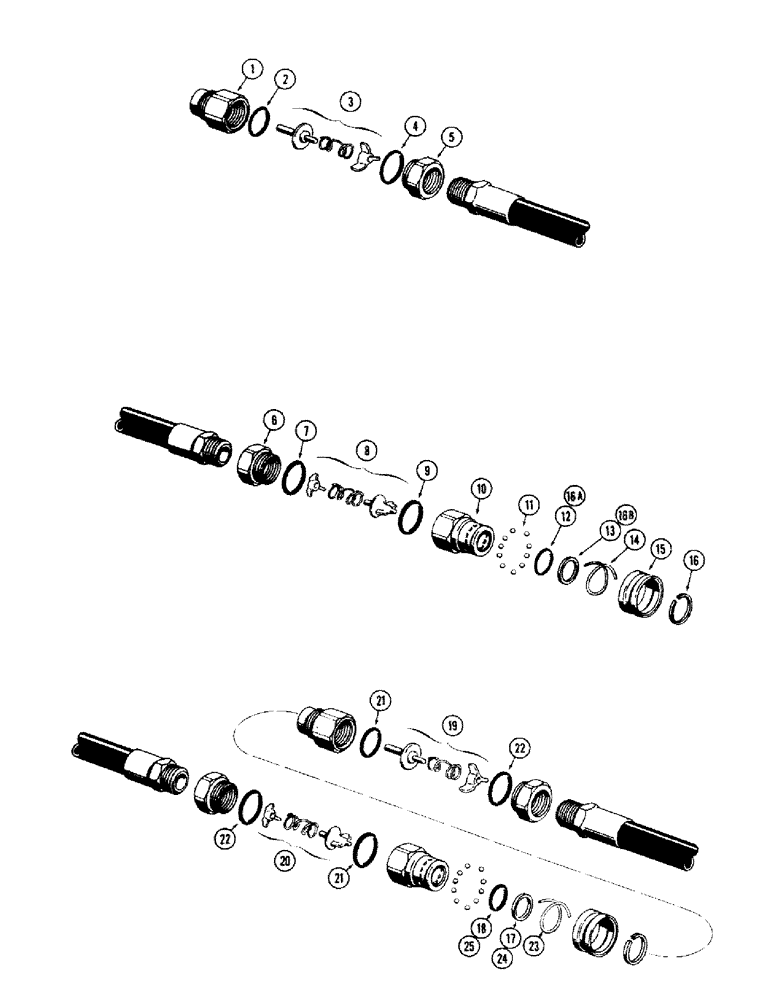

Запчасти Case 480CK (42) - HYDRAULIC COUPLINGS, D31617 HYDRAULIC COUPLING (35) - HYDRAULIC SYSTEMS

D31617

COUPLING, BREAK AWAY

COUPLING - male (Snap-tite), Includes: Ref. 1 - 5

1шт.

1

D31971

BODY

- male coupling

1шт.

2

D31984

SEAL

- valve

1шт.

3

D35658

VALVE

ASSEMBLY - male coupling

1шт.

4

D31985

SEAL,0.103" Thk x 0.987" ID, -120, Cl 5, 75 Duro

- fitting

1шт.

5

D31975

FITTING

- end

1шт.

D31618

COUPLING, BREAK AWAY

COUPLING - female (Snap-tite), hyd, Includes: Ref. 6 - 16B

1шт.

6

D31975

FITTING

- end, D31618 hyd coupling

1шт.

7

D31985

SEAL,0.103" Thk x 0.987" ID, -120, Cl 5, 75 Duro

- fitting, D31618 hyd coupling

1шт.

8

D35659

LOCK VALVE

VALVE ASSEMBLY - female coupling, D31618 hyd

1шт.

9

D31984

SEAL

- valve, D31618 hyd coupling

1шт.

10

D31976

BODY - female coupling, D31618 hyd

1шт.

11

D31982

KIT

BALL KIT - includes 10 balls, D31618 hyd coupling

1шт.

12

D31983

O-RING

SEAL - "O" ring, internal (When stock is exhausted, use D42469 kit for service), D31618 hyd coupling

1шт.

13

D31978

RING

- backup (When stock is exhausted, use D42469 kit for service), D31618 hyd coupling

1шт.

14

D31979

VALVE SPRING

SPRING - sleeve, D31618 hyd coupling

1шт.

15

D31980

SLEEVE CYLINDER

SLEEVE - ball retaining, D31618 hyd coupling

1шт.

16

D31981

RING

- retaining, D31618 hyd coupling

1шт.

D42469

SEAL

KIT - seal, "O" ring and backup ring, D31618 hyd coupling, Includes: Ref. 16A and 16B

1шт.

16a

NSS

NOT SOLD SEPARAT

SEAL - "O" ring, internal, D31618 hyd coupling

1шт.

16b

NSS

NOT SOLD SEPARAT

RING - backup, D31618 hyd coupling

1шт.

D31456

KIT

- service for hyd coupling, Includes: Ref. 17 - 25

1шт.

17

D31978

RING

- backup (When stock is exhausted, use D42469 kit for service), D31456 service kit for hyd coupling

1шт.

18

D31983

O-RING

SEAL - "O" ring, internal (When stock is exhausted, use D42469 kit for service), D31456 service kit for hyd coupling

1шт.

19

D35658

VALVE

ASSEMBLY - male coupling, D31456 service kit for hyd

1шт.

20

D35659

LOCK VALVE

VALVE ASSEMBLY - female coupling, D31456 service kit for hyd

1шт.

21

D31984

SEAL

- valve, D31456 service kit for hyd coupling

2шт.

22

D31985

SEAL,0.103" Thk x 0.987" ID, -120, Cl 5, 75 Duro

- fitting, D31456 service kit for hyd coupling

2шт.

23

D31979

VALVE SPRING

SPRING - sleeve, D31456 service kit for hyd coupling

1шт.

D42469

SEAL

KIT - seal, "O" ring and backup ring, D31456 service kit for hyd coupling, Includes: Ref. 24 and 25

1шт.

24

NSS

NOT SOLD SEPARAT

RING - backup, D31456 service kit for hyd coupling

1шт.

25

NSS

NOT SOLD SEPARAT

SEAL - "O" ring, internal, D31456 service kit for hyd coupling

1шт.
