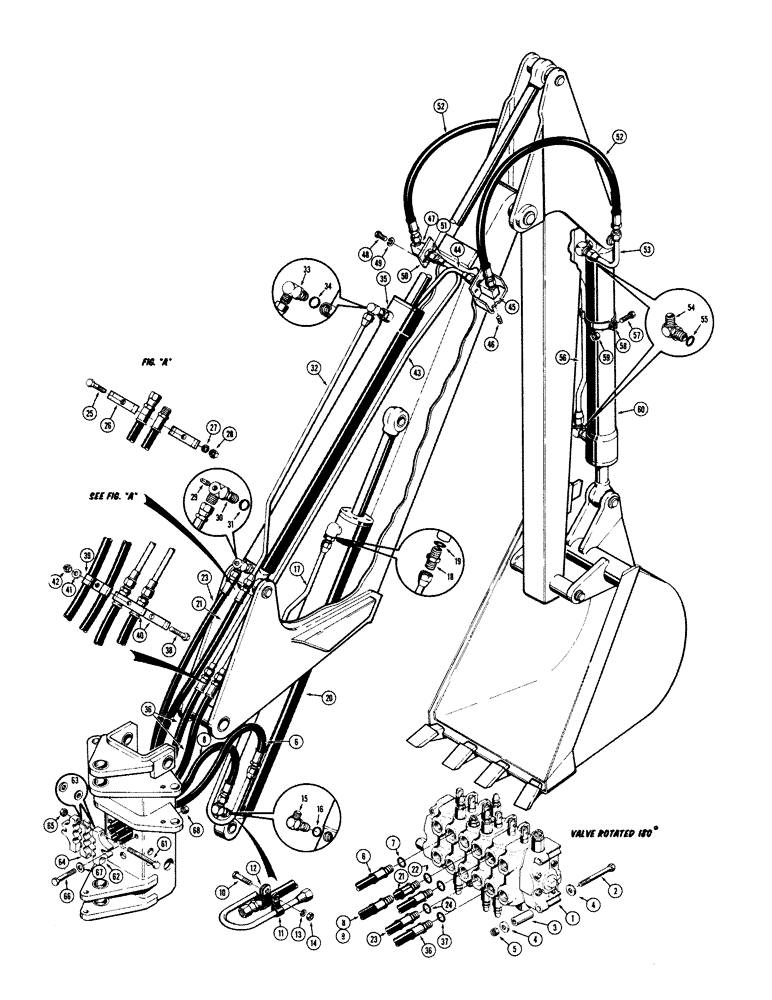

Запчасти Case 480CK (38) - BOOM, CROWD AND BUCKET CYLINDER HYDRAULICS (35) - HYDRAULIC SYSTEMS

1

D33778

VALVE - backhoe control (Parts list Figure 64)

1шт.

2

13-6104

BOLT,Hex, 3/8" - 16 x 6-1/2", Gr 5

3шт.

3

D35466

SPACER - valve

3шт.

4

95-6

WASHER,3/8"

- standard wrot () 3/8"

6шт.

5

131-6

LOCK NUT,3/8"-16, GC

NUT - hex., lock (3/8" - 16 NC)

3шт.

6

D23038

HOSE - upper section port to boom cylinder, rod end (47-1/2" long), hyd's, Includes: Ref. 7

1шт.

7

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk, Boom cyl hyd's

1шт.

8

D23036

HOSE - lower boom section port to cylinder, closed end (47-1/2" long), hyd's, Includes: Ref. 9

1шт.

9

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk, Boom cyl hyd's

1шт.

10

13-614

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

Boom cyl hyd's Hex, 3/8"-16 x 7/8", G5, Full Thd

1шт.

11

515-23143

CLAMP,9/16", Insul, 3/8" Bolt

- tube, R.H., boom cyl hyd's, hose (When stock is exhausted, use D39696)

1шт.

12

R21385

CLAMP

- tube, L.H., boom cyl hyd's

1шт.

13

95-6

WASHER,3/8"

- standard wrot (), boom cyl hyd's 3/8"

1шт.

14

25-116

NUT,Hex, 3/8"-24, G5

- hex., (3/8" - 24 NF), boom cyl hyd's

1шт.

15

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

- adjustable, 90 degrees, boom cyl hyd's, Incl. Ref. 16

1шт.

16

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk, Boom cyl hyd's

1шт.

17

D23046

TUBE - boom cylinder, rod end, hyd's

1шт.

18

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

CONNECTOR - male, straight, boom cyl hyd's, Includes: Ref. 19

1шт.

19

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk, Boom cyl hyd's

1шт.

20

D32167

CYLINDER

- hydraulic, boom (3-1/2" dia. x 31-3/4" stroke) Parts list Figure 52

1шт.

21

D23042

HOSE - upper crowd section port to crowd cylinder, rod end (58" long), hyd's, Includes: Ref. 22

1шт.

22

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk, Crowd cyl hyd's

1шт.

23

D23034

HOSE - lower crowd section port to crowd cylinder, closed end (58-3/4" long), hyd's, Includes: Ref. 24

1шт.

24

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk, Crowd cyl hyd's

1шт.

25

13-532

BOLT,Hex, 5/16" - 18 x 2", Gr 5

Crowd cyl hyd's Hex, 5/16"-18 x 2", G5

1шт.

26

D33316

CLAMP

- hose, crowd cyl hyd's

2шт.

27

195-21

WASHER,5/16"

- plain (), Crowd cyl hyd's 5/16"

1шт.

28

131-4

LOCK NUT,5/16"-18, GB

NUT - hex., lock (5/16" - 18 NC), crowd cyl hyd's

1шт.

29

221-11

PLUG,Sq Hd, 1/8"-27

- pipe, square head (1/8" NPT), crowd cyl hyd's

1шт.

30

R19576

FITTING

ELBOW - adjustable, 90 degrees (Special), crowd cyl hyd's, Includes: Ref. 31

1шт.

31

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk, Crowd cyl hyd's

1шт.

32

D28350

TUBE - crowd cylinder, rod end, hyd's

1шт.

33

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

- adjustable, 90 degrees, crowd cyl hyd's, Incl. Ref. 34

1шт.

34

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk, Crowd cyl hyd's

1шт.

35

D28314

CYLINDER ASSY.

CYLINDER - hydraulic, crow (3-1/2" dia. x 38-3/8" stroke) Parts list Figure 54

1шт.

36

D23040

HOSE - at valve bucket section (42-1/2" long),cyl hyd's, Includes: Ref. 37

2шт.

37

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk, Bucket cyl hyd's

1шт.

38

13-544

BOLT,Hex, 5/16" - 18 x 2-3/4", Gr 5

Bucket cyl hyd's Hex, 5/16"-18 x 2 3/4", G5

1шт.

39

D33316

CLAMP

- hose, bucket cyl hyd's

2шт.

40

D20302

CLAMP,7/8", Insul, 3/8" Bolt

- hose, bucket cyl hyd's

2шт.

41

195-21

WASHER,5/16"

- plain (), Bucket cyl hyd's 5/16"

1шт.

42

131-4

LOCK NUT,5/16"-18, GB

NUT - hex., lock (5/16" - 18 NC), bucket cyl hyd's

1шт.

43

D23072

TUBE - to bucket cylinder, rod end, hyd's

1шт.

44

D23071

TUBE - to bucket cylinder, closed end, hyd's

1шт.

45

D28248

ELBOW - special, R.H., bucket cyl hyd's

1шт.

46

221-12

PLUG,Sq Hd, 1/4"-18

- pipe, square head (1/4" NPT), bucket cyl hyd's

1шт.

47

D23277

ELBOW - special, L.H., bucket cyl hyd's

1шт.

48

13-614

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

Bucket cyl hyd's Hex, 3/8"-16 x 7/8", G5, Full Thd

4шт.

49

95-6

WASHER,3/8"

- standard wrot (), bucket cyl hyd's 3/8"

4шт.

50

D23054

PLATE - spacer, bucket cyl hyd's

2шт.

51

25-1514

JAM NUT,Jam, 7/8"-14, G5

- hex., jam (7/8" - 14 NF), bucket cyl hyd's

2шт.

52

D23030

HOSE

- at bucket cylinder (36-1/2" long), hyd's

2шт.

53

D23048

TUBE - bucket cylinder, closed end, hyd's

1шт.

54

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

- adjustable, 90 degrees, bucket cyl hyd's, Incl. Ref. 55

2шт.

55

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk, Bucket cyl hyd's

1шт.

56

D28354

TUBE - bucket cylinder, rod end, hyd's

1шт.

57

13-520

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

HHCS - 5/16" - 18 NC x 1-1/4", bucket cyl hyd's

2шт.

58

D28352

CLAMP - tube to cylinder, bucket hyd's

2шт.

59

131-4

LOCK NUT,5/16"-18, GB

NUT - hex., lock (5/16" - 18 NC), bucket cyl hyd's

2шт.

60

D28331

CYLINDER ASSY.

CYLINDER - hydraulic, bucket (3" dia. x 26-5/8" stroke) Parts list Figure 56

1шт.

61

13-552

BOLT,Hex, 5/16" - 18 x 3-1/4", Gr 5

HHCS - 5/16" - 18 NC x 3-1/4", bucket cyl hyd's

2шт.

62

D26125

CLAMP

- hose, outer, bucket cyl hyd's

2шт.

63

195-21

WASHER,5/16"

- plain (), Bucket cyl hyd's 5/16"

4шт.

64

D26124

HOSE

CLAMP - hose, center, bucket cyl hyd's

1шт.

65

131-4

LOCK NUT,5/16"-18, GB

NUT - hex., lock (5/16" - 18 NC), bucket cyl hyd's

2шт.

66

13-532

BOLT,Hex, 5/16" - 18 x 2", Gr 5

Bucket cyl hyd's Hex, 5/16"-18 x 2", G5

2шт.

67

195-21

WASHER,5/16"

- plain (), Bucket cyl hyd's 5/16"

2шт.

68

131-4

LOCK NUT,5/16"-18, GB

NUT - hex., lock (5/16" - 18 NC), bucket cyl hyd's

2шт.
