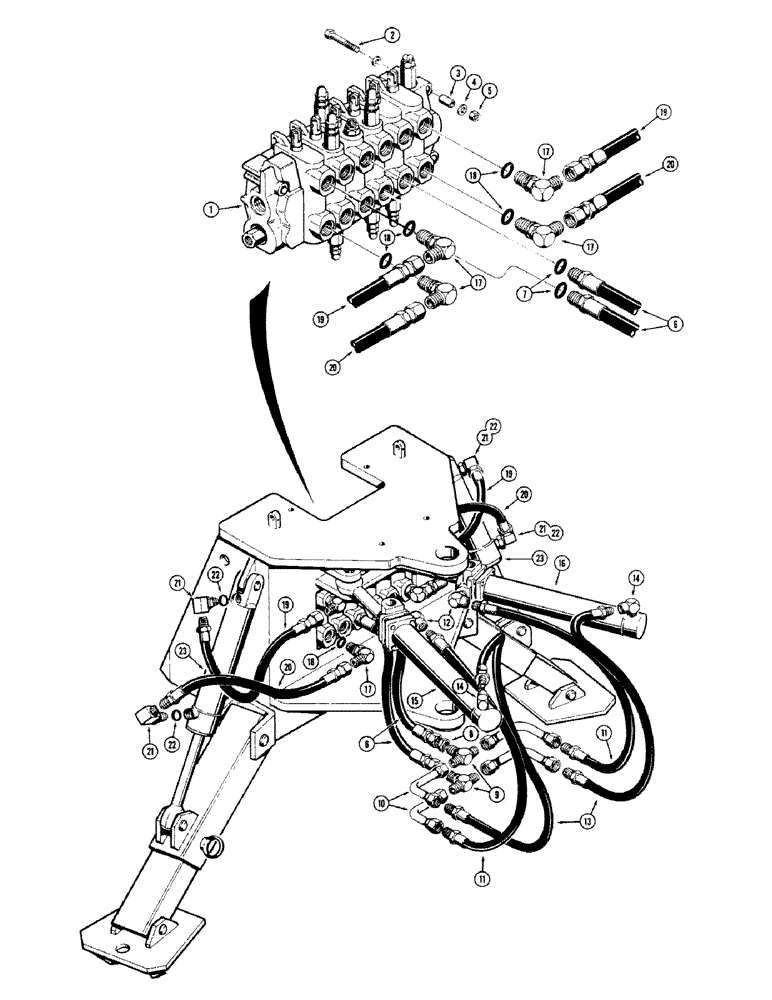

Запчасти Case 480CK (36) - SWING AND STABILIZER CYLINDER HYDRAULICS, SWING AND STABILIZER CYLINDER HYDRALICS (35) - HYDRAULIC SYSTEMS

1

D33778

VALVE - backhoe control (Parts list Figure 64)

1шт.

2

13-6104

BOLT,Hex, 3/8" - 16 x 6-1/2", Gr 5

3шт.

3

D35466

SPACER - valve

3шт.

4

95-6

WASHER,3/8"

- standard wrot () 3/8"

6шт.

5

131-6

LOCK NUT,3/8"-16, GC

NUT - hex., lock (3/8" - 16 NC)

3шт.

6

D23275

HOSE - valve to swing cylinders (18" long), swing cylinders hydraulics, Includes: Ref. 7

2шт.

7

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk, Swing cyl hyd's

1шт.

8

25-1512

JAM NUT,Jam, 3/4"-10, G5

- hex., jam (3/4" - 16 NF), swing cyl hyd's

2шт.

9

D23223

TEE - bulkhead, special, swing cyl hyd's

2шт.

10

D23290

TUBE - tee to swing cylinder hoses, hyd's

4шт.

11

D33717

HOSE - to swing cylinders, rod end (24" long), hyd's

2шт.

12

D23309

ELBOW - street, 90 degrees, swing cyl hyd's

2шт.

13

D33719

HOSE - to swing cylinders, closed end (27" long), hyd's

2шт.

14

D23540

ELBOW - Special, 90 degrees (Restrictor), swing cyl hyd's

2шт.

15

D28326

CYLINDER - hydraulic, R.H. swing (2-1/2" dia. x 15-11/16" stroke) Parts list Figure 50, swing cylinders hydraulics

1шт.

16

D28325

CYLINDER - hydraulic, L.H. swing (2-1/2" dia. x 15-11/16" stroke) Parts list Figure 50, swing cylinder hydraulics

1шт.

17

D25667

ELBOW

- adjustable, 90 degrees, stabilizer cyl hyd's, Includes: Ref. 18

4шт.

18

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk, Stabilizer cyl hyd's

1шт.

19

D33713

HOSE ASSY.

HOSE - valve to stabilizer cylinder, closed end (20" long) For service, use D45362 hose, stabilizer cylinder hydraulics

2шт.

D45362

HOSE

- valve to stabilizer cylinder, closed end (22" long), stabilizer cylinder hydraulics

2шт.

20

D33715

HOSE ASSY.

HOSE - valve to stabilizer cylinder, rod end (27" long), stabilizer cylinder hydraulics

2шт.

21

D24070

ELBOW

- adjustable, 90 degrees, stabilizer cyl hyd's, Includes: Ref. 22

4шт.

22

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk, Stabilizer cyl hyd's

1шт.

23

D28279

CYLINDER - hydraulic, stabilizer (2-1/2" dia. x 11" stroke) Parts list Figure 48, stabilizer cylinder hydraulics

2шт.
