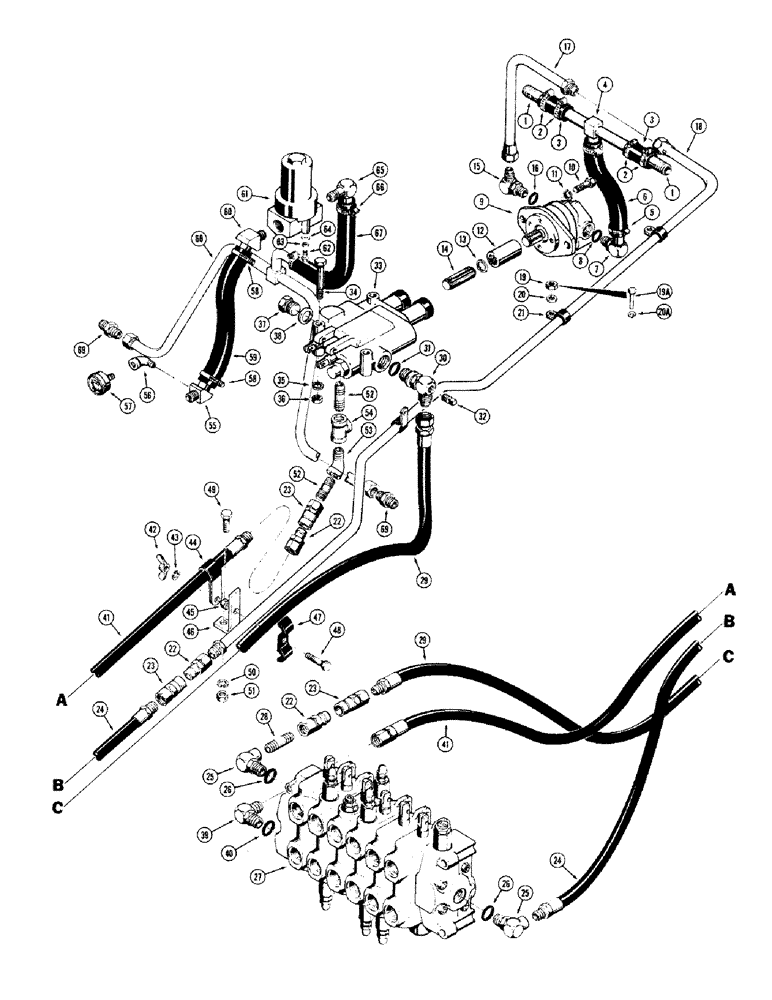

Запчасти Case 480CK (32) - BACKHOE PRIMARY HYDRAULICS (35) - HYDRAULIC SYSTEMS

1

D33363

FITTING

STEM - hose, hydraulic reservoir

2шт.

2

214-258

HOSE CLAMP,#28, 1.31" - 2.25", Type F Worm

4шт.

3

R13911

HOSE,31.80 mm ID x 101.60 mm ID, SAE 100R3

- low pressure, at reservoir 31.80 mm ID x 101.60 mm ID, SAE 100R3

2шт.

4

D38631

TEE

TUBE - special, reservoir to pump (When stock is exhausted, use D41098 tube for service)

1шт.

D41098

TEE

TUBE - special, Serial Range: reservoir-pump

1шт.

5

214-258

HOSE CLAMP,#28, 1.31" - 2.25", Type F Worm

2шт.

6

D35463

HOSE

- low pressure (When stock is exhausted, use D37188 hose for service)

1шт.

D37188

HOSE

- low pressure

1шт.

7

D33704

X

STEM - hose, 90 degrees, Includes: Ref. 8

1шт.

8

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

SEAL - "O" ring

1шт.

9

R24623

PUMP, HYDRAULIC

PUMP - hydraulic, loader backhoe models (17.5 G.P.M at 1750 R.P.M. at 1750 P.S.I.) Parts list Figure 60

1шт.

10

13-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

HHCS - 1/2" - 13 NC x 1-3/4"

2шт.

11

92-8

LOCK WASHER,1/2"

2шт.

12

D31108

SPLINED COUPLING

COUPLING - female, pump to shaft, Includes: Ref. 13

1шт.

13

G46150

SNAP RING,0.75", Int, #75

Ring, Snap, , coupling 0.75", Int, #75

1шт.

14

D30569

SHAFT

- pump drive

1шт.

15

218-5115

ELBOW,90 Degree Elbow, 1-5/16" - 12 Male JIC x 1-3/16" - 12 Male ORB

- adjustable, 90 degrees, Includes: Ref. 16

1шт.

16

218-5009

O-RING,0.116" Thk x 1.048" ID, -914, Cl 6, 90 Duro

SEAL - "O" ring

1шт.

17

D41682

TUBE ASSY.

TUBE - pump to backhoe control valve

1шт.

18

D33705

TUBE - pump to backhoe control valve

1шт.

19

131-4

LOCK NUT,5/16"-18, GB

NUT - hex., lock (5/16" - 18 NC) If used

3шт.

19a

13-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

(If used) Hex, 5/16"-18 x 1", G5, Full Thd

3шт.

20

195-21

WASHER,5/16"

- standard wrot (), if used 5/16"

3шт.

20a

92-5

LOCK WASHER,5/16"

if used 5/16"

3шт.

21

R11405

CLAMP

- tube

3шт.

22

D31617

COUPLING, BREAK AWAY

COUPLING - male, quick disconnect (Parts list Figure 42)

3шт.

23

D31618

COUPLING, BREAK AWAY

COUPLING - female, quick disconnect (Parts list Figure 42)

3шт.

24

D31474

HOSE

- to backhoe control valve (38" long)

1шт.

25

D26463

FITTING

ELBOW - adjustable, 90 degrees, Includes: Ref. 26

2шт.

26

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

SEAL - "O" ring

1шт.

27

D33778

VALVE - backhoe control (Parts list Figure 64)

1шт.

28

221-215

PIPE,Nipple, 3/4" NPT x 2"

NIPPLE - pipe (3/4" NPT x 2")

1шт.

29

D33711

HOSE - backhoe control valve to loader valve (86" long)

1шт.

30

D26360

ELBOW - adjustable, 90 degrees, Includes: Ref. 31

1шт.

31

218-5009

O-RING,0.116" Thk x 1.048" ID, -914, Cl 6, 90 Duro

SEAL - "O" ring

1шт.

32

221-12

PLUG,Sq Hd, 1/4"-18

- pipe, square head (1/4" NPT)

1шт.

33

D28489

VALVE

- loader control, 2 spool (Parts list Figure 62)

1шт.

34

13-640

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

HHCS - 3/8" - 16 NC x 2-1/2"

3шт.

35

92-6

LOCK WASHER,3/8"

3шт.

36

25-106

NUT,3/8"-16, G5

- hex. (3/8" - 16 NC)

3шт.

37

D25604

PLUG

- special

1шт.

38

D25653

GASKET

- plug

1шт.

39

D25135

X

ELBOW - adjustable, 90 degrees, Includes: Ref. 40

1шт.

40

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

SEAL - "O" ring

1шт.

41

D33707

HOSE - backhoe control valve to loader valve (65" long)

1шт.

42

129-419

WING NUT,5/16"-18

NUT - winged (5/16" - 18 NC)

1шт.

43

92-5

LOCK WASHER,5/16"

1шт.

44

R14098

CLAMP,1 1/4", Insul, 5/16" Bolt

- hose, inner

1шт.

45

131-4

LOCK NUT,5/16"-18, GB

NUT - hex., lock) (5/16" - 18 NC)

1шт.

46

D31392

CLAMP

BRACKET - clamp

1шт.

47

R15257

CLAMP

- hose, outer

1шт.

48

13-540

BOLT,Hex, 5/16" - 18 x 2-1/2", Gr 5

1шт.

49

13-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

1шт.

50

92-8

LOCK WASHER,1/2"

1шт.

51

25-108

NUT,1/2"-13, G5

- hex. (1/2" - 13 NC)

1шт.

52

221-215

PIPE,Nipple, 3/4" NPT x 2"

NIPPLE - pipe (3/4" NPT x 2")

2шт.

53

221-1405

ELBOW,45 Degree, 3/4"-14, NPT

- strret, 45 degrees (3/4" NPT)

1шт.

54

221-425

FITTING,3/4" NPT

TEE - female () 3/4" NPT

1шт.

55

D33588

STEM - hose, 45 degrees

1шт.

56

221-411

ELBOW,90 Degree, 1/8"-27, NPT

Street 90º, 1/8"-27, NPT

1шт.

57

D29650

ELECTRICAL GAUGE

GAUGE - filter condition indicator

1шт.

58

214-256

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

CLAMP - hose

2шт.

59

D36798

HOSE

- low pressure, Serial Range: valve-filter

1шт.

60

217-146

ELBOW,45 Degree Elbow, 1" Hose Barb x 1" Male NPTF

STEM - hose, 45 degrees

1шт.

61

D32254

FILTER ASSY

- hydraulic oil, Marvel No. 33425 (When stock is exhausted, use D43567 filter for service) Parts list Figure 57A

1шт.

D43567

FILTER ASSY

- hydraulic, Marvel No. 2735A (Parts list Figure 57A)

1шт.

62

13-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5, Full Thd

2шт.

63

92-8

LOCK WASHER,1/2"

2шт.

64

195-33

WASHER,1/2"

- plain () 1/2"

2шт.

65

217-136

ELBOW,90 Degree Elbow, 1" Hose Barb x 1" Male NPTF

STEM - hose, 90 degrees

1шт.

66

214-256

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

CLAMP - hose

2шт.

67

D28238

HOSE

- low pressure, Serial Range: filter-reservoir

1шт.

68

D39843

TUBE - crossover, Serial Range: filter-reservoir

1шт.

69

218-446

HYD CONNECTOR,1-1/16" - 12 Male JIC x 3/4" - 14 Male NPTF

CONNECTOR - straight, male

2шт.
