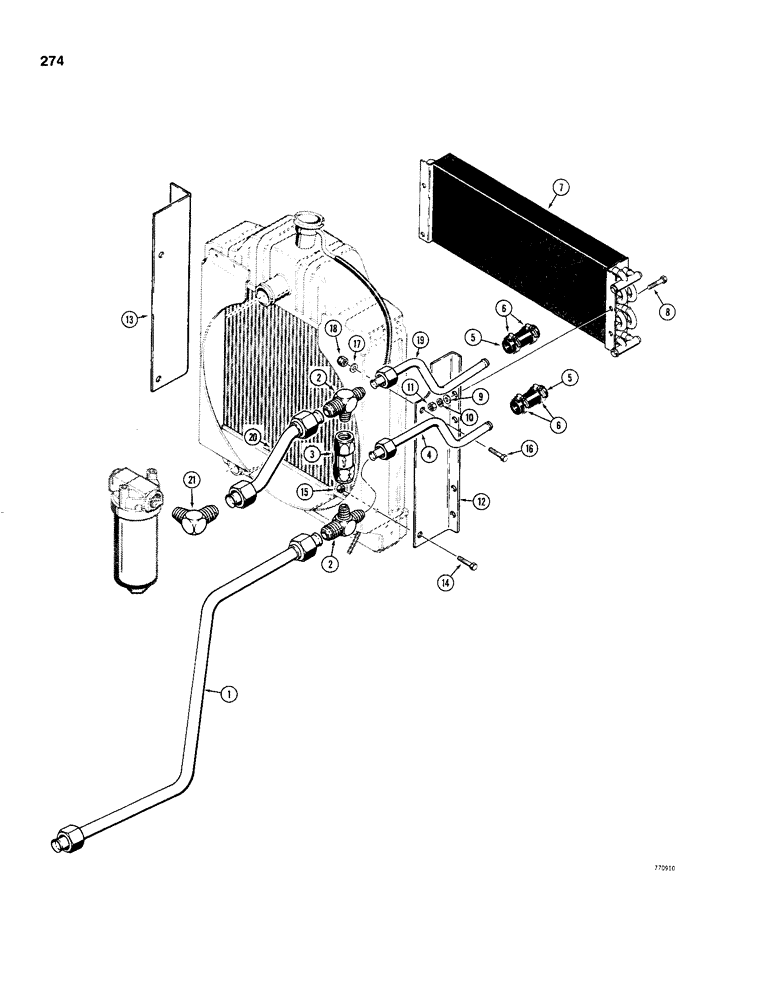

Запчасти Case 480C (274) - PTO HYDRAULIC COOLING SYSTEM, TRACTOR SERIAL NUMBER 8967327 AND AFTER (35) - HYDRAULIC SYSTEMS

1

D72130

HYD TUBE,1" OD x 17.68, 20.32" L

TUBE - return, from rear equipment hydraulic circuit

1шт.

2

218-1109

TEE,1 5/16"-12, 37 Degree x 1/16"-12, 37 Degree x 3/4"-14, NPTF Br

- male, check valve

2шт.

3

D68804

CHECK VALVE - hydraulic oil

1шт.

4

D77837

TUBE ASSY.

TUBE - to cooler lower tube

1шт.

5

R14170

HOSE

- cooler tubes, 3/4" (19 mm) ID x 5" (127 mm) long

2шт.

6

214-256

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

CLAMP - hose

4шт.

7

D76544

COOLER

- PTO hydraulic oil

1шт.

8

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd

4шт.

9

195-521

WASHER,5/16", SAE

- flat, 5/16", plated

4шт.

10

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

4шт.

11

9635082

NUT,5/16" - 18, Gr 5

4шт.

12

D76570

BRACKET

- cooler mounting, right-hand

1шт.

13

D76569

STABILIZER

BRACKET - cooler mounting, left-hand

1шт.

14

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

2шт.

15

131-666

LOCK NUT,3/8"-16, GB

NUT - hex, self-locking, 3/8" - 16 NC, plated

2шт.

16

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.

17

95-6

WASHER,3/8"

- flat, 3/8"

2шт.

18

131-666

LOCK NUT,3/8"-16, GB

NUT - hex, self-locking, 3/8" - 16 NC, plated

2шт.

19

D77835

TUBE

- from cooler upper tube

1шт.

20

D77945

TUBE,1" OD x 9.67, 2.91" L

- to filter

1шт.

21

D71940

ELBOW

- 90 degree, special, at filter

1шт.
