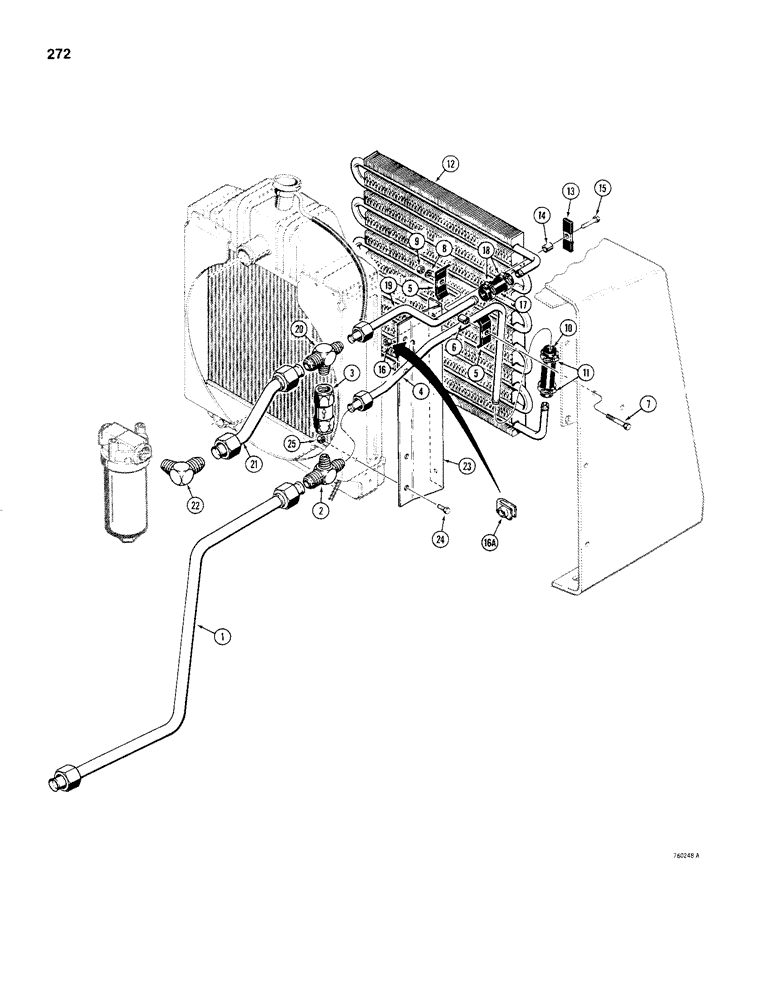

Запчасти Case 480C (272) - PTO HYDRAULIC COOLING SYSTEM, BEFORE TRACTOR SERIAL NUMBER 8967327 (35) - HYDRAULIC SYSTEMS

1

D72130

HYD TUBE,1" OD x 17.68, 20.32" L

TUBE - return, from rear equipment hydraulics

1шт.

2

218-1109

TEE,1 5/16"-12, 37 Degree x 1/16"-12, 37 Degree x 3/4"-14, NPTF Br

- male, check valve lower port

1шт.

3

D68804

CHECK VALVE - hydraulic oil

1шт.

4

D72066

TUBE - to cooler lower tube

1шт.

5

D40236

CLAMP

- tube

2шт.

6

D76195

SPACER,10.31mm ID x 15.88mm OD x 17.78mm L

- clamp

1шт.

7

113-213

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 5

1шт.

8

92-6

LOCK WASHER,3/8"

1шт.

9

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

1шт.

10

D24728

HOSE

- cooler tubes, lower, 3/4" (19 mm) ID x 4-1/2" (114 mm) long

1шт.

11

214-256

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

CLAMP - hose

2шт.

12

D72041

COOLER

- PTO hydraulic oil

1шт.

13

D54416

CLAMP

PLATE - mounting

4шт.

14

D75075

SPACER

- mounting plate

4шт.

15

113-122

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

4шт.

16

131-665

LOCK NUT,5/16"-18, GB

NUT - hex, self-locking, 5/16" - 18 NC, plated, if used

4шт.

16a

131-639

SPRING NUT,U, Rtnr, 5/16" - 18

- J-type, 5/16" - 18 NC, if used

4шт.

17

R20804

HOSE,19.00 mm ID x 76.20 mm, SAE 100R3

Cooler Tubes, Upper 19.00 mm ID x 76.20 mm, SAE 100R3

1шт.

18

214-256

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

CLAMP - hose

2шт.

19

D72064

TUBE - from cooler top tube

1шт.

20

218-1109

TEE,1 5/16"-12, 37 Degree x 1/16"-12, 37 Degree x 3/4"-14, NPTF Br

- male, check valve upper port

1шт.

21

D77945

TUBE,1" OD x 9.67, 2.91" L

- to filter

1шт.

22

D71940

ELBOW

- 90 degree, special, at filter

1шт.

23

D75234

BRACKET

- cooler, when replacing brackets using loose hex nuts (Ref. 16) or welded on square nuts, also order (2) 131-639 (Ref. 16A) J-type nuts

2шт.

24

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

2шт.

25

131-666

LOCK NUT,3/8"-16, GB

NUT - hex, self-locking, 3/8" - 16 NC, plated

2шт.
