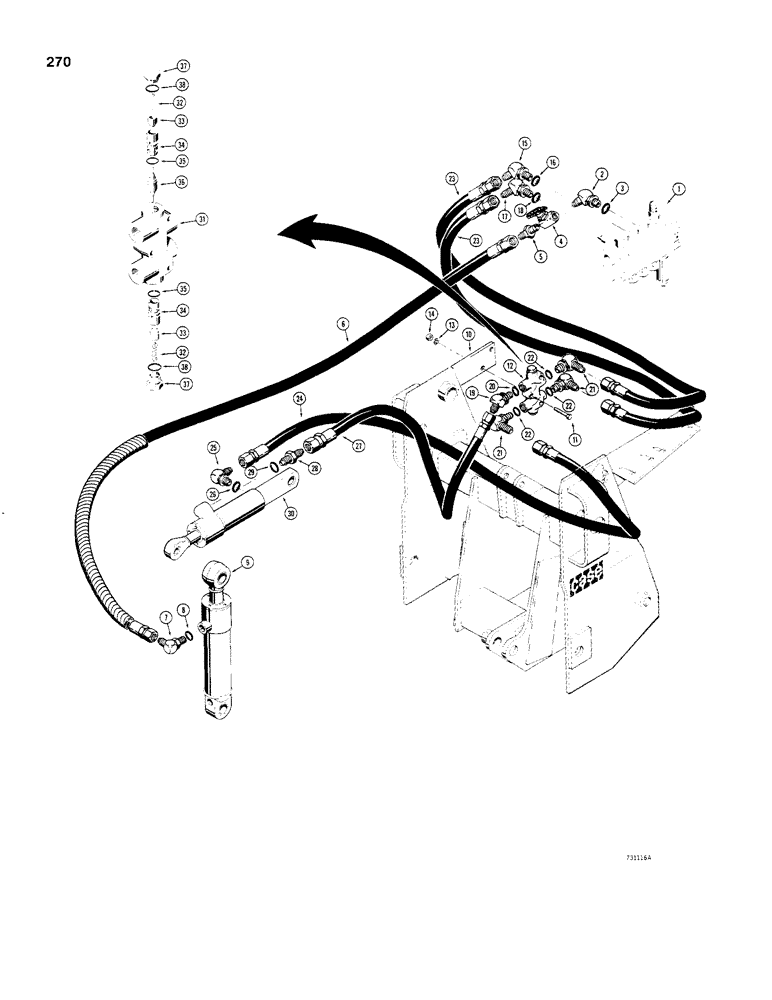

Запчасти Case 480C (270) - THREE-POINT HITCH ANTI-LEAKDOWN KIT (35) - HYDRAULIC SYSTEMS

1

D52970

CONTROL VALVE

- three-point hitch, parts list Figure 322

1шт.

2

D60015

FITTING

ELBOW - 45 degree, adjustable, Includes: Ref. 3

1шт.

Part of Anti-leakdown Kit P/N D17196

1шт.

4

D60016

BALL

SHUTOFF VALVE - hydraulic oil

1шт.

Part of Anti-leakdown Kit P/N D17196

1шт.

5

218-444

HYD CONNECTOR,3/4" - 16 Male JIC x 3/8" - 18 Male NPTF

ADAPTER - straight, male

1шт.

Part of Anti-leakdown Kit P/N D17196

1шт.

6

D52256

HOSE

- shutoff valve to lift cylinder, rod end, 45" (1142 mm) long

1шт.

7

218-5121

ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 7/8" - 14 Male ORB

- 90 degree, adjustable, Includes: Ref. 8

1шт.

8

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- elbow

1шт.

9

REF

INSTRUCTION

CYLINDER - lift, see Figures 378 and 380

1шт.

10

D59772

PLATE

- valve mounting, welded to hitch frame

1шт.

Part of Anti-leakdown Kit P/N D17196

1шт.

11

113-121

BOLT,Hex, 5/16" - 18 x 2", Gr 5

2шт.

Part of Anti-leakdown Kit P/N D17196

1шт.

12

D47256

VALVE

- check, pilot operated, parts list below

1шт.

Part of Anti-leakdown Kit P/N D17196

1шт.

13

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

2шт.

Part of Anti-leakdown Kit P/N D17196

1шт.

14

9635082

NUT,5/16" - 18, Gr 5

2шт.

Part of Anti-leakdown Kit P/N D17196

1шт.

15

D52943

ELBOW

- 45 degree, restrictor, upper port of pitch section, Includes: Ref. 16

1шт.

17

218-5136

ELBOW,45 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

- 45 degree, adjustable, lower port of pitch section, Incl. Ref 18

1шт.

19

D59773

FITTING

ELBOW - 45 degree, restrictor, at check valve, Includes: Ref. 20

1шт.

Part of Anti-leakdown Kit P/N D17196

1шт.

21

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

- 90 degree, adjustable, at check valve, Includes: Ref. 22

3шт.

Part of Anti-leakdown Kit P/N D17196

1шт.

23

D59771

HOSE

- pitch section of control valve to top and bottom ports of check valve, 27" (686 mm) long

2шт.

Part of Anti-leakdown Kit P/N D17196

1шт.

24

T40301

HOSE,0.38" ID x 17.00", SAE 100R1

Rear Bottom Port of Check Valve to Closed End of Pitch Cylinder 0.38" ID x 17.00", SAE 100R1

1шт.

Part of Anti-leakdown Kit P/N D17196

1шт.

25

218-5121

ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 7/8" - 14 Male ORB

- 90 degree, adjustable, Includes: Ref. 26

1шт.

26

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- elbow

1шт.

27

D56128

HOSE

- rear top port of check valve to rod end of pitch cylinder, 25" (635 mm) long

1шт.

Part of Anti-leakdown Kit P/N D17196

1шт.

28

218-5060

HYD CONNECTOR,3/4" - 16 Male JIC x 7/8" - 14 Male ORB

Adapter, straight, male, Incl. Ref 29 3/4"-16, 37º x 7/8"-14, O-Ring

1шт.

29

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- adapter

1шт.

30

REF

INSTRUCTION

CYLINDER - pitch, see Figure 386

1шт.

D47256

VALVE

- check, Parker VCPD8B11T, Includes: Ref. 31 - 38

1шт.

31

NSS

NOT SOLD SEPARAT

BODY - check valve, D47256

1шт.

32

D48818

SPRING

- poppet, D47256 check valve

2шт.

D48819

VALVE POPPET

POPPET AND SLEEVE ASSEMBLY - check valve, D47256, Includes: Ref. 33 - 35

2шт.

33

NSS

NOT SOLD SEPARAT

POPPET - check valve, D47256

1шт.

34

NSS

NOT SOLD SEPARAT

SLEEVE - poppet, D47256 check valve

1шт.

35

D48820

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

- sleeve, D47256 check valve

1шт.

36

D48821

TRANSMISSION

SHUTTLE - valve, D47256 check

1шт.

37

D48822

PLUG

- special, D47256 check valve

2шт.

D17196

KIT

- anti-leakdown, Includes: Ref. 2, 4, 5, 10-14, 19, 21, 23, 24 and 27, D47256 check valve

1шт.

3

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

- elbow

1шт.

16

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

- elbow

1шт.

18

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

- elbow

1шт.

20

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

- elbow

1шт.

22

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

- elbow

1шт.

38

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

- plug, D47256 check valve

2шт.
