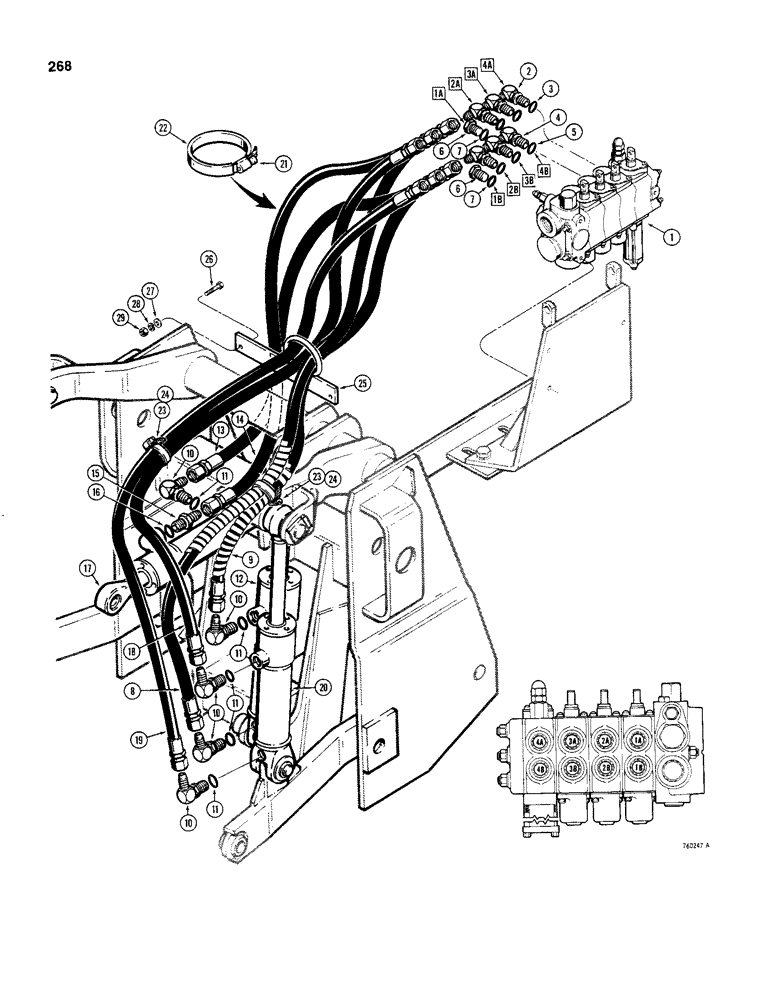

Запчасти Case 480C (268) - THREE-POINT HITCH CYLINDER HYDRAULIC CIRCUIT (35) - HYDRAULIC SYSTEMS

1

D52970

CONTROL VALVE

- three-point hitch, parts list Figure 322

1шт.

2

D52943

ELBOW

- restrictor, 45 degree, upper ports, Includes: Ref. 3

3шт.

4

218-5136

ELBOW,45 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

- 45 degree, adjustable, lower ports, Incl. Ref 5

3шт.

6

214389

PLUG,3/4" - 16 ORB

Socket, Control valve ports, If used, Includes Ref. 7 Hex Hd, 3/4"-16 ORB

2шт.

8

D51683

HOSE

- valve to closed end of lift cylinder, 56" (1422 mm) long

1шт.

9

D52256

HOSE

- valve to rod end of lift cylinder, 45" (1143 mm) long

1шт.

10

218-5121

ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 7/8" - 14 Male ORB

- 90 degree, adjustable, Includes: Ref. 11

5шт.

11

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- elbow

1шт.

12

REF

INSTRUCTION

CYLINDER - lift, parts list Figures 378 and 380

1шт.

13

D51688

HOSE

- valve to closed end of pitch cylinder, 42" (1067 mm) long

1шт.

14

D52256

HOSE

- valve to rod end of pitch cylinder, 45" (1143 mm) long

1шт.

15

218-5060

HYD CONNECTOR,3/4" - 16 Male JIC x 7/8" - 14 Male ORB

Adapter, straight, male, Incl. Ref 16 3/4"-16, 37º x 7/8"-14, O-Ring

1шт.

16

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- adapter

1шт.

17

REF

INSTRUCTION

CYLINDER - pitch, parts list Figure 386

1шт.

18

D51686

HOSE

- valve to rod end of tilt cylinder, 54" (1372 mm) long

1шт.

19

D51685

HOSE

- valve to closed end of tilt cylinder, 66" (1676 mm) long

1шт.

20

REF

INSTRUCTION

CYLINDER - tilt, parts list Figures 382 and 384

1шт.

21

214-261

HOSE CLAMP,#40, 2.06" - 3", Type F Worm

CLAMP - hose

1шт.

22

D95252

TUBE

GUARD - hose

1шт.

23

214-256

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

CLAMP - hose

2шт.

24

D95251

TUBE

GUARD - hose

2шт.

25

D72680

BRACKET

- hose guide, Serial Range: attaches-floorplate

1шт.

26

113-103

BOLT,Hex, 5/16" - 18 x 1", Gr 5

2шт.

27

195-521

WASHER,5/16", SAE

- flat, 5/16", plated

2шт.

28

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

2шт.

29

9635082

NUT,5/16" - 18, Gr 5

2шт.

3

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

- elbow

1шт.

5

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

- plug

1шт.

7

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

- plug

1шт.
