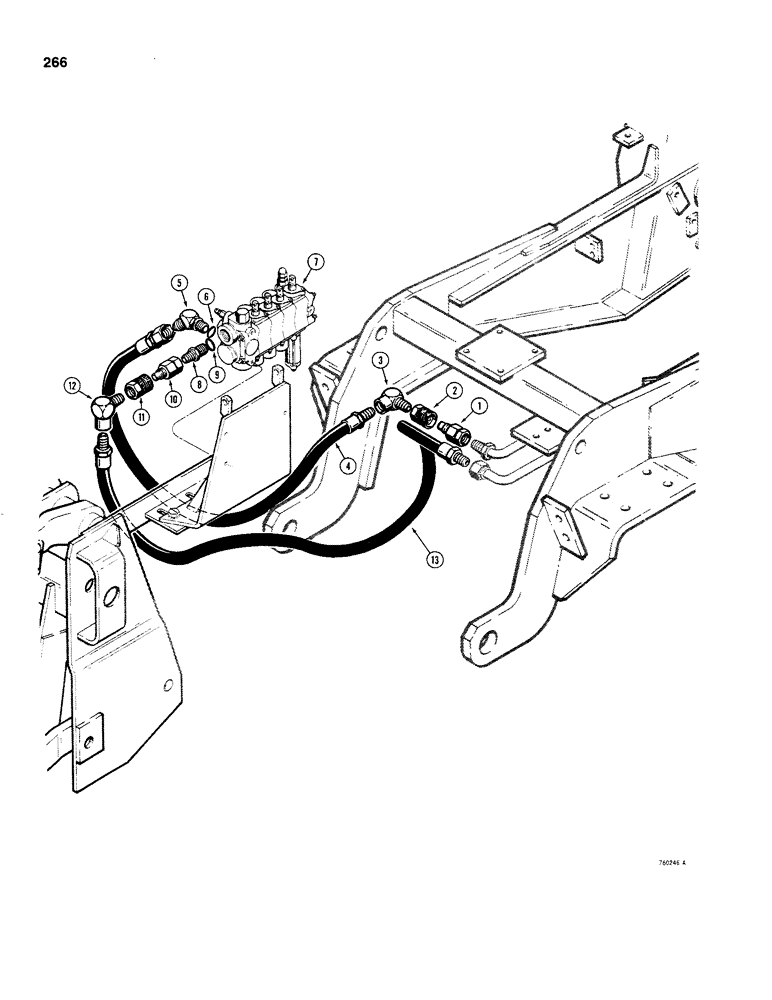

Запчасти Case 480C (266) - THREE-POINT HITCH VALVE HYDRAULIC CIRCUIT (35) - HYDRAULIC SYSTEMS

1

D52694

QUICK MALE COUPLING

QUICK DISCONNECT - coupling, male, parts list Figure 340

1шт.

2

D52800

COUPLING, QUICK, FEM

QUICK DISCONNECT - coupling, female, parts list Figure 340

1шт.

3

217-1020

90 ELBOW,3/4" - 14 Female x 3/4" - 14 Male

Street 90º, 3/4"-14 Female x 3/4"-14 Male

1шт.

4

D52667

HOSE

- tractor to three-point hitch valve, 36" (914 mm) long

1шт.

5

218-5147

ELBOW,45 Degree Elbow, 1-5/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

Adjustable, Includes: Ref. 6 45º, 1 5/16"-12 x 1 1/16"-12, 37º

1шт.

6

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- elbow

1шт.

7

D52970

CONTROL VALVE

- three-point hitch, parts list Figure 322, valve mounting nd levers on Figure 432

1шт.

8

218-5022

HYD CONNECTOR,1 1/16"-12, O-Ring x 3/4"-16, Pipe

ADAPTER - straight, male, Includes: Ref. 9

1шт.

9

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- adapter

1шт.

10

D52694

QUICK MALE COUPLING

QUICK DISCONNECT - coupling, male, parts list Figure 340

1шт.

11

D52800

COUPLING, QUICK, FEM

QUICK DISCONNECT - coupling, female, parts list Figure 340

1шт.

12

217-1020

90 ELBOW,3/4" - 14 Female x 3/4" - 14 Male

Street 90º, 3/4"-14 Female x 3/4"-14 Male

1шт.

13

D49118

HOSE

- three-point hitch valve to tractor, 33" (838 mm) long

1шт.
