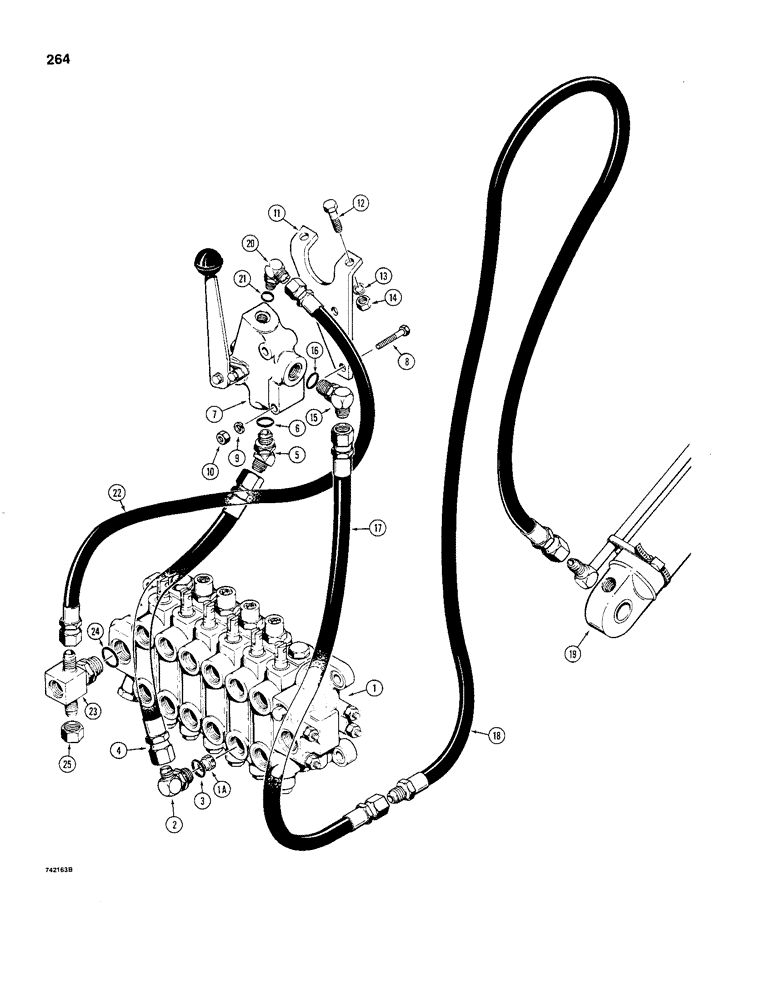

Запчасти Case 480C (264) - BOOM LOCK HYDRAULIC CIRCUIT (35) - HYDRAULIC SYSTEMS
№
Артикул
Название
Примечание
Количество
1
REF
INSTRUCTION
CONTROL VALVE - backhoe, parts list Figure 305
1шт.
1a
D54236
VALVE, CHECK
RESTRICTOR - boom drop, lower port boom section
1шт.
2
218-5231
ELBOW,90 Degree, 1 1/16"-12, 37 Degree x 1 1/16"-12, 37 Degree Fem Sw
Adjustable, Includes: Ref. 3 90º, 1 1/16"-12, 37º x 1 1/16"-12, 37º Fem Sw
1шт.
3
218-5008
O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro
- elbow
1шт.
4
L18776
HOSE
- backhoe valve to lock valve, 22" (559 mm) long
1шт.
5
218-5138
ELBOW,45 Degree Elbow, 1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB
- 45 degree, adjustable, Includes: Ref. 6
1шт.
6
218-5008
O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro
- elbow
1шт.
7
D56102
VALVE
- boom lock, parts list Figure 316
1шт.
8
113-241
BOLT,Hex, 3/8" - 16 x 3", Gr 5
2шт.
9
92-6
LOCK WASHER,3/8"
2шт.
10
129-103
NUT,Hex, 3/8" - 16, Gr 5
NUT, 3/8"-16, G5
2шт.
11
D58824
BRACKET - valve mounting
1шт.
12
113-410
BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd
2шт.
13
92-8
LOCK WASHER,1/2"
2шт.
14
129-105
NUT,Hex, 1/2" - 13, Gr 5
2шт.
15
218-5108
ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB
90º, adjustable, Incl. Ref. 16
1шт.
16
218-5008
O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro
- elbow
1шт.
17
D45358
HOSE ASSY.
HOSE - lock valve to boom cylinder, 39" (991 mm) long
1шт.
18
D38124
HOSE
- boom cylinder rod end, 57" (1448 mm) long
1шт.
19
REF
INSTRUCTION
CYLINDER - boom, see Figure 362 and 364
1шт.
20
218-5106
90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB
- 90 degree, adjustable, Includes: Ref. 21
1шт.
22
D58825
HOSE
- lock valve to backhoe valve, 32" (913 mm) long
1шт.
23
D57736
FITTING - special, 4-way, Includes: Ref. 24
1шт.
24
218-5010
O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro
- fitting
1шт.
21
218-5006
O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro
- elbow
1шт.
Выбрано товаров: 26
