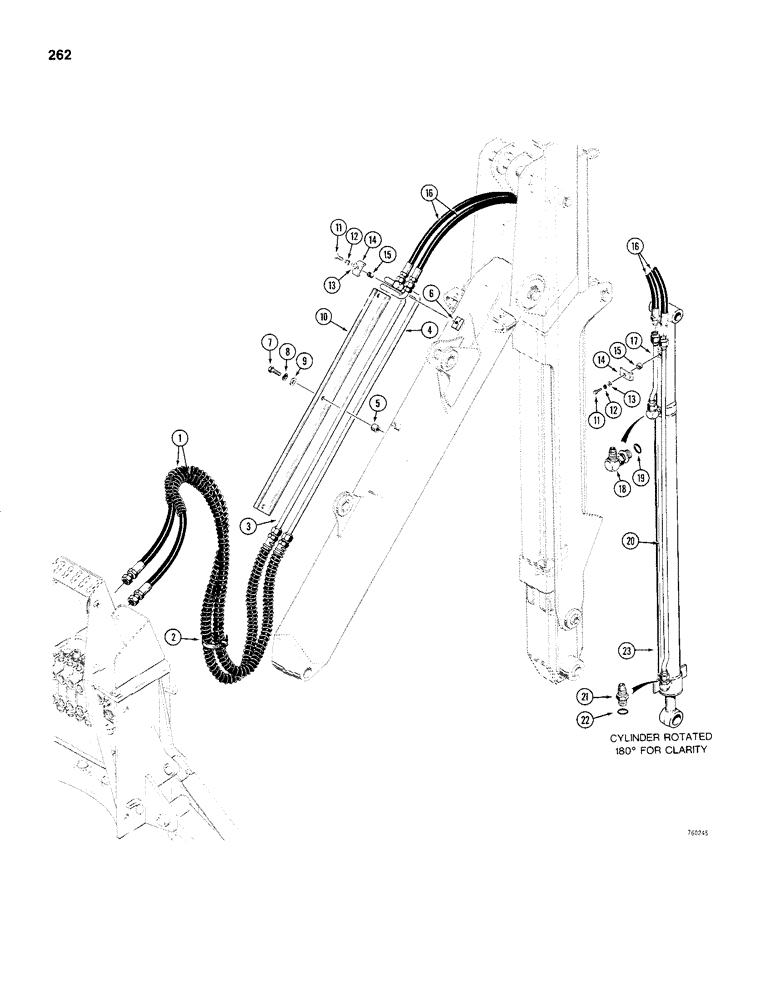

Запчасти Case 480C (262) - BACKHOE EXTENDABLE DIPPER HYDRAULIC CIRCUIT, COUPLINGS TO DIPPER EXTENSION CYLINDER (35) - HYDRAULIC SYSTEMS

1

D44035

HOSE

- valve to boom, 64" (1626 mm) long

2шт.

2

214-261

HOSE CLAMP,#40, 2.06" - 3", Type F Worm

CLAMP - hose

1шт.

3

D54350

TUBE - upper, at boom

1шт.

4

D54352

TUBE - lower, at boom

1шт.

5

D42505

BLOCK

- tapped, tube guard, boom side

3шт.

6

D52569

BLOCK

- tapped, tube clamp, boom top

1шт.

7

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

3шт.

8

92-6

LOCK WASHER,3/8"

3шт.

9

195-525

WASHER,3/8", SAE

- tube 3/8", SAE

3шт.

10

D54358

GUARD - tube

1шт.

11

113-209

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

2шт.

12

92-6

LOCK WASHER,3/8"

2шт.

13

195-525

WASHER,3/8", SAE

- flat, 3/8" , plated

1шт.

14

D42504

CLAMP

- tube

2шт.

15

D33552

BUSHING

SPACER - tube clamp

2шт.

16

D52565

HOSE

- to dipper extension cylinder, 43" (1067 mm) long

2шт.

17

D52572

TUBE

- cylinder, closed end

1шт.

18

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

- 90 degree, adjustable, Incl. Ref. 19

1шт.

19

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- elbow

1шт.

20

D54362

TUBE

- extension cylinder, rod end

1шт.

21

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

ADAPTER - straight, male, Includes: Ref. 22

1шт.

22

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- adapter

1шт.

23

REF

INSTRUCTION

CYLINDER - dipper extension, see Figures 374 and 376

1шт.
