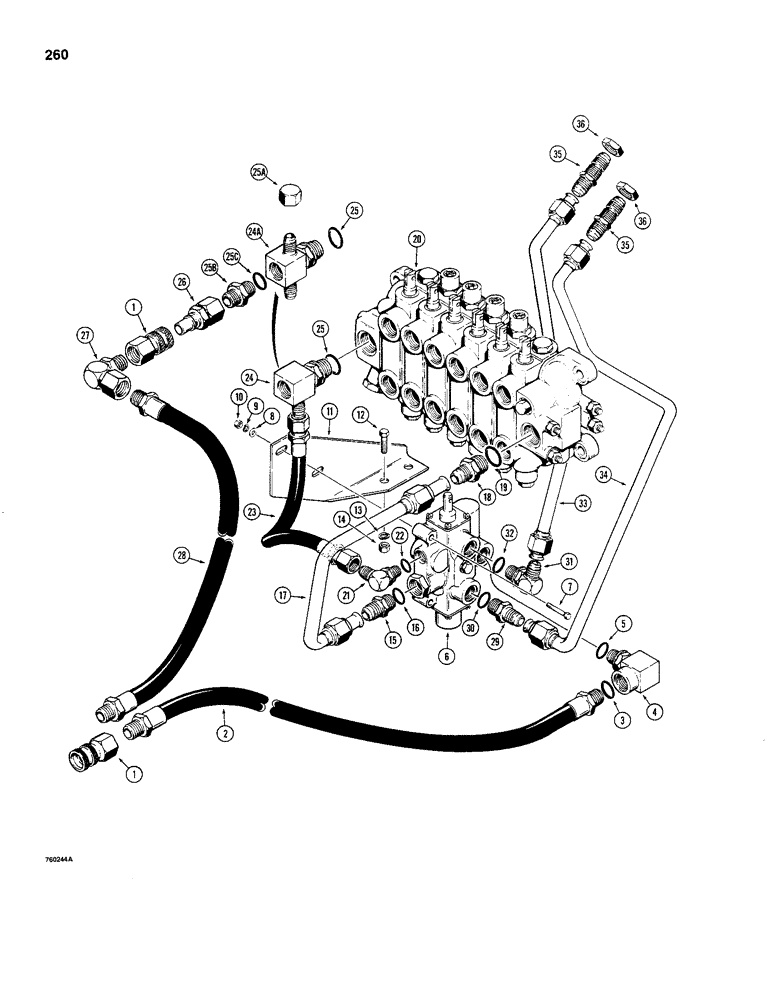

Запчасти Case 480C (260) - BACKHOE EXTENDABLE DIPPER HYDRAULIC CIRCUIT, BACKHOE VALVE TO COUPLINGS (35) - HYDRAULIC SYSTEMS

1

D52800

COUPLING, QUICK, FEM

QUICK DISCONNECT - coupling, female, parts list Figure 340

2шт.

2

D39543

HOSE

- to valve, 41" (1041 mm) long, Includes: Ref. 3

1шт.

3

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- hose

1шт.

4

D57233

ELBOW - special, 90 degree, Includes: Ref. 5

1шт.

5

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- elbow

1шт.

6

D65588

VALVE

CONTROL VALVE ASSEMBLY - extendable dipper, parts list Figure 330

1шт.

7

113-219

BOLT,Hex, 3/8" - 16 x 2", Gr 5

Valve to mounting bracket Hex, 3/8"-16 x 2", G5

2шт.

8

195-525

WASHER,3/8", SAE

- flat, 2/8", plated

2шт.

9

92-6

LOCK WASHER,3/8"

2шт.

10

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

2шт.

11

D57110

BRACKET - valve mounting

1шт.

12

113-412

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

Bracket to frame Hex, 1/2"-13 x 1 3/4", G5

2шт.

13

92-8

LOCK WASHER,1/2"

2шт.

14

129-105

NUT,Hex, 1/2" - 13, Gr 5

2шт.

15

218-5050

HYD CONNECTOR,1-5/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

CONNECTOR, HYD., straight, male, Incl. Ref. 16

1шт.

16

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- adapter

1шт.

17

D57075

TUBE - pressure, backhoe valve to extendable dipper valve

1шт.

18

218-5069

HYD CONNECTOR,1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

Adapter - straight, male, Incl. Ref. 19

1шт.

19

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- adapter

1шт.

20

REF

INSTRUCTION

CONTROL VALVE - backhoe, parts list Figure 305

1шт.

21

218-5121

ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 7/8" - 14 Male ORB

- adjustable, 90 degree, Includes: Ref. 22

1шт.

22

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- elbow

1шт.

23

36210

HOSE

- return, 21-1/2" (546 mm) long

1шт.

24

D54377

FITTING - adjustable, special, extendable dipper models without boom lock, Includes: Ref. 24A

1шт.

24a

D57736

O-RING - D54377 or D57736 fitting

1шт.

25a

218-755

CAP,37 Degree, 3/4"-16

Used with D57736 fitting only, if boom lock is removed 37º, 3/4"-16

1шт.

25b

218-5017

ADAPTER

- straight, male, Includes: Ref. 25C

1шт.

25c

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- adapter

1шт.

26

D52694

QUICK MALE COUPLING

QUICK DISCONNECT - coupling, male, parts list Figure 340

1шт.

27

217-1020

90 ELBOW,3/4" - 14 Female x 3/4" - 14 Male

Street 90º, 3/4"-14 Female x 3/4"-14 Male

1шт.

28

D49118

HOSE

- to tractor, 33" (838 mm) long

1шт.

29

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

ADAPTER - straight, male, Includes: Ref. 30

1шт.

30

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- adapter

1шт.

31

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

- adjustable, 90 degree, Incl. Ref. 32

1шт.

32

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- elbow

1шт.

33

D56488

TUBE - valve to cylinder, upper

1шт.

34

D56490

TUBE - valve to cylinder, lower

1шт.

35

218-675

FITTING,Blkhd, 7/8"-14, 37 Degree x 7/8"-14, 37 Degree

FIT STL BULKHD .625MJ .625MJ

2шт.

36

218-1251

BHD LOCK NUT,Blkhd, 7/8"-14

NUT, LOCK, Blkhd, 7/8"-14

2шт.
