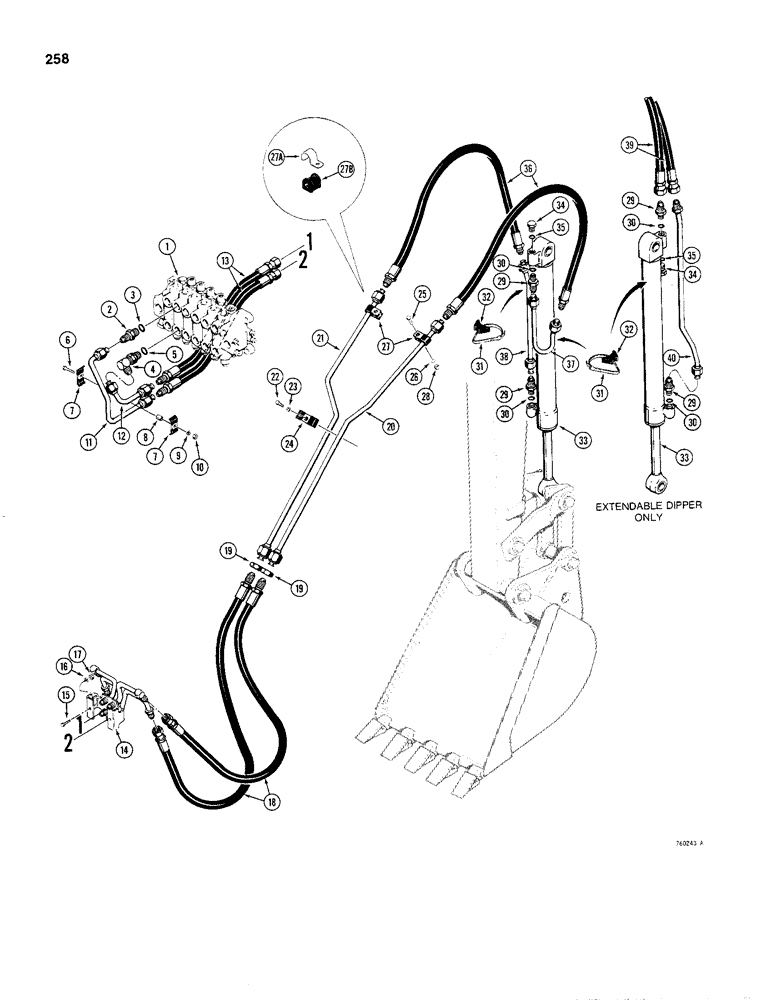

Запчасти Case 480C (258) - BACKHOE BUCKET CYLINDER HYDRAULIC CIRCUIT (35) - HYDRAULIC SYSTEMS

1

REF

INSTRUCTION

CONTROL VALVE - backhoe, parts list Figure 305

1шт.

2

218-5077

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

ADAPTER - straight, male, Incl. Ref. 3

1шт.

3

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- adapter

1шт.

4

218-5118

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

Adjustable, male, Includes: Ref. 5 90º, 1 1/16"-12, 37º x 1 5/16"-12, O-Ring

1шт.

5

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- elbow

1шт.

6

113-233

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

1шт.

7

D40236

CLAMP

- tube

2шт.

8

D76212

BUSHING

SPACER - tube clamp

1шт.

9

92-6

LOCK WASHER,3/8"

1шт.

10

131-52

NUT,3/8"-16, GC

NUT - hex, self-locking, 3/8" - 16 NC, plated

1шт.

11

D54220

TUBE

- upper valve port

1шт.

12

D54222

TUBE - lower valve port

1шт.

13

D42601

HOSE ASSY.

HOSE - valve to manifold, 18-1/2" (470 mm) long

2шт.

14

D44652

MANIFOLD

- hydraulic routing

1шт.

15

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.

16

92-6

LOCK WASHER,3/8"

2шт.

17

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

2шт.

18

D45359

HOSE

- manifold to cylinder, rod end, 47" (1194 mm) long

2шт.

19

218-1256

BHD LOCK NUT,Blkhd, 1 1/16"-12

NUT - hex, bulkhead, 1-1/16" - 12 NF

2шт.

20

D54322

TUBE

- right-hand, Serial Range: valve-cylinder

1шт.

21

D54324

TUBE

- left-hand, Serial Range: valve-cylinder

1шт.

22

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

1шт.

23

92-6

LOCK WASHER,3/8"

1шт.

24

D40236

CLAMP

- tube

1шт.

25

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.

26

195-525

WASHER,3/8", SAE

- flat, 3/8", plated

2шт.

27

515-23190

CLAMP,3/4", Insul, 3/8" Bolt

- tube, if used

2шт.

27a

D74192

CLAMP

- tube, if used

2шт.

27b

D74182

GROMMET,3/4" ID x 1.46" L

SPACER - tube clamp, used with Ref. 27A

2шт.

28

131-52

NUT,3/8"-16, GC

NUT - hex, self-locking, 3/8" - 16 NC, plated

2шт.

29

218-5065

HYD CONNECTOR,1-1/16" - 12 Male JIC x 7/8" - 14 Male ORB

ADAPTER - straight, male, Includes: Ref. 30

2шт.

30

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- adapter

1шт.

31

214-267

HOSE CLAMP,#64, 3.56" - 4.5", Type F Worm

CLAMP - tube to cylinder

2шт.

32

D38648

BLOCK

SPACER - clamp

1-2шт.

33

REF

INSTRUCTION

CYLINDER - bucket, see Figures 370 and 372

1шт.

34

86512512

PLUG,7/8" - 14 ORB

Incl. Ref. 35 Hex Hd, 7/8"-14 ORB

1шт.

35

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- plug

1шт.

36

D39802

TUBE

HOSE - tube to cylinder, 32-1/2" (826 mm) long, used on models w/o extendable dipper

2шт.

37

D46679

TUBE

- cylinder, closed end, used on models w/o extendable dipper

1шт.

38

D40647

TUBE

- cylinder, rod end, used on models w/o extendable dipper

1шт.

39

D52566

HOSE

- tube to cylinder, 70" (2779 mm) long, used on models w/extendable dipper

2шт.

40

D54360

TUBE

- bucket cylinder, rod end, used on models w/extendable dipper

1шт.
