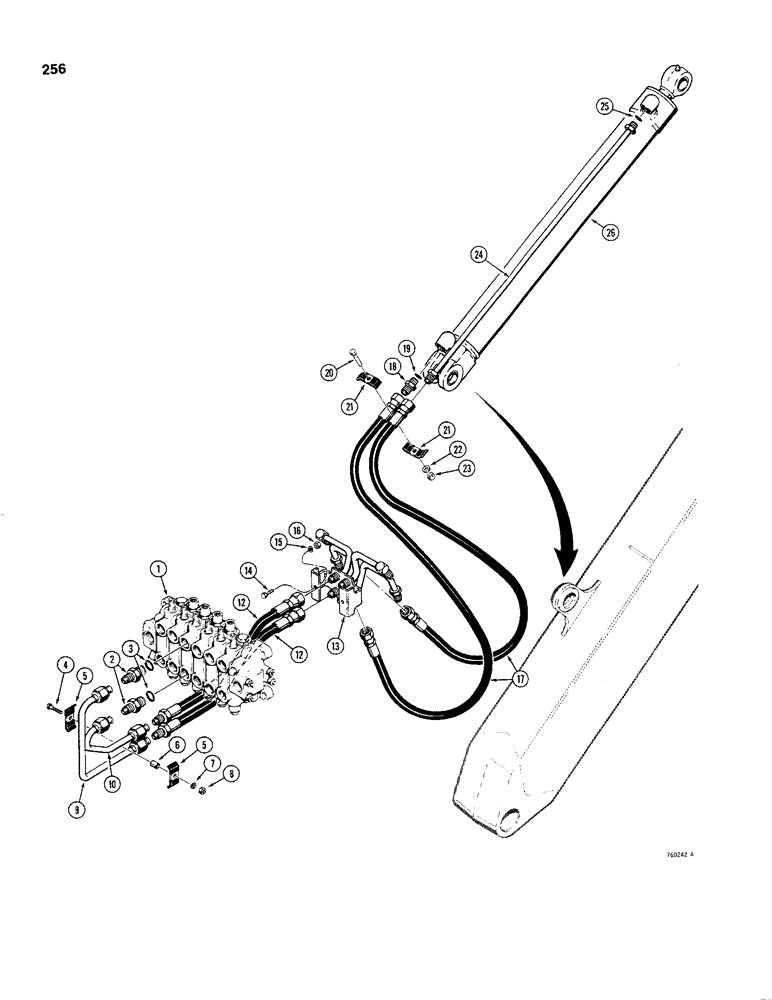

Запчасти Case 480C (256) - BACKHOE DIPPER CYLINDER HYDRAULIC CIRCUIT (35) - HYDRAULIC SYSTEMS

1

REF

INSTRUCTION

CONTROL VALVE - backhoe, parts list Figure 305

1шт.

2

218-5077

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

ADAPTER - straight, male, Incl. Ref. 3

2шт.

3

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- adapter

1шт.

4

113-233

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

1шт.

5

D40236

CLAMP

- tube

2шт.

6

D76212

BUSHING

SPACER - tube clamp

1шт.

7

92-6

LOCK WASHER,3/8"

1шт.

8

131-52

NUT,3/8"-16, GC

NUT - hex, self-locking, 3/8" - 16 NC, plated

1шт.

9

D54224

TUBE - upper valve port

1шт.

10

D54226

TUBE

- lower valve port

1шт.

11

RESERVED

1шт.

12

D42601

HOSE ASSY.

HOSE - valve to manifold, 18-1/2" (470 mm) long

2шт.

13

D44652

MANIFOLD

- hydraulic routing

1шт.

14

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.

15

92-6

LOCK WASHER,3/8"

2шт.

16

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

2шт.

17

D45358

HOSE ASSY.

HOSE - manifold to dipper cylinder, 39" (991 mm) long

2шт.

18

218-5065

HYD CONNECTOR,1-1/16" - 12 Male JIC x 7/8" - 14 Male ORB

ADAPTER - straight, male, Includes: Ref. 19

1шт.

19

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- adapter

1шт.

20

113-219

BOLT,Hex, 3/8" - 16 x 2", Gr 5

1шт.

21

D40236

CLAMP

- hose

2шт.

22

195-525

WASHER,3/8", SAE

- flat, 3/8", plated

1шт.

23

131-52

NUT,3/8"-16, GC

NUT - hex, self-locking, 3/8" - 16 NC, plated

1шт.

24

D43637

TUBE

- cylinder, rod end, Includes: Ref. 25

1шт.

25

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- tube

1шт.

26

REF

INSTRUCTION

CYLINDER - dipper arm, see Figures 366 and 368

1шт.
