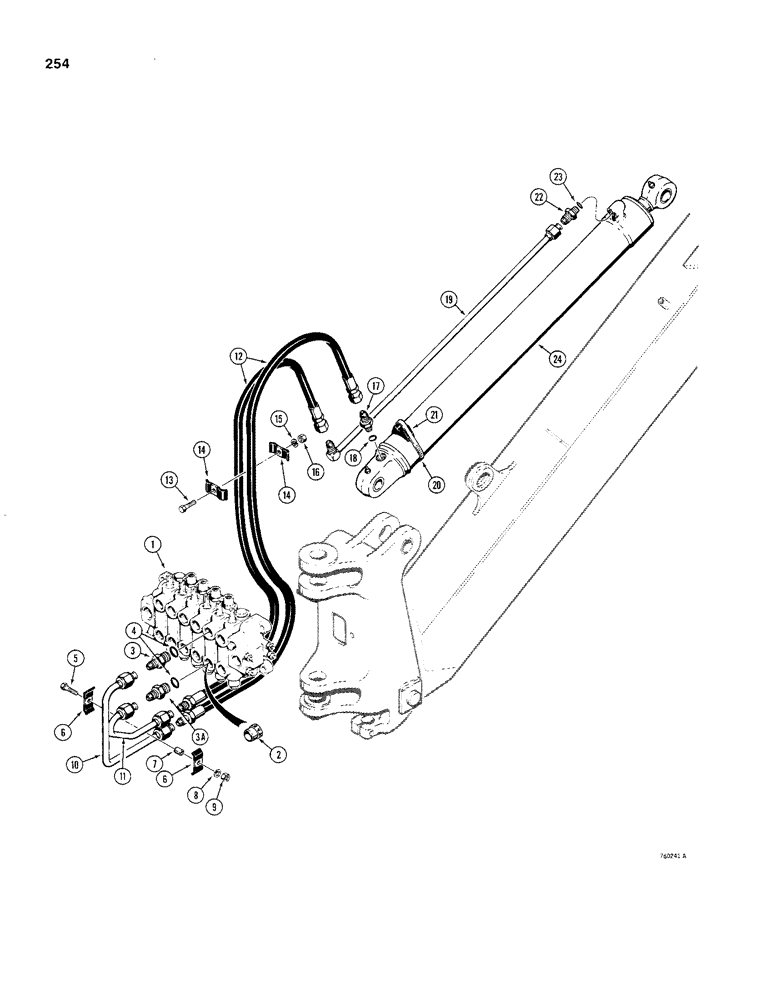

Запчасти Case 480C (254) - BACKHOE BOOM CYLINDER HYDRAULIC CIRCUIT (35) - HYDRAULIC SYSTEMS

1

REF

INSTRUCTION

CONTROL VALVE - backhoe, parts list Figure 305

1шт.

2

D54236

VALVE, CHECK

RESTRICTOR - boom drop, lower port boom section

1шт.

3

218-5077

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

ADAPTER - straight, male

1шт.

3a

L55143

FITTING

ADAPTER - special, lower port, Includes: Ref. 4

1шт.

4

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- 218-5077 and L55143 adapter

1шт.

5

113-233

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

1шт.

6

D40236

CLAMP

- tube

2шт.

7

D76212

BUSHING

SPACER - tube clamp

1шт.

8

92-6

LOCK WASHER,3/8"

1шт.

9

131-52

NUT,3/8"-16, GC

NUT - hex, self-locking, 3/8" - 16 NC, plated

1шт.

10

D54224

TUBE - upper valve port

1шт.

11

D54226

TUBE

- lower valve port

1шт.

12

D38124

HOSE

- valve to cylinder, 57" (1448 mm) long

2шт.

13

113-311

BOLT,Hex, 7/16" - 14 x 1-1/2", Gr 5

1шт.

14

D42833

CLAMP

- hose

2шт.

15

92-7

LOCK WASHER,7/16"

1шт.

16

131-8

LOCK NUT,7/16"-14, GB

NUT, LOCK, 7/16"-14, GB

1шт.

17

218-5065

HYD CONNECTOR,1-1/16" - 12 Male JIC x 7/8" - 14 Male ORB

ADAPTER - straight, male, Includes: Ref. 18

1шт.

18

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- adapter

1шт.

19

D43631

TUBE

- cylinder, rod end

1шт.

20

214-269

HOSE CLAMP,#72, 4.06" - 5", Type F Worm

CLAMP - tube to cylinder

1шт.

21

D38648

BLOCK

SPACER - clamp

1шт.

22

218-5065

HYD CONNECTOR,1-1/16" - 12 Male JIC x 7/8" - 14 Male ORB

ADAPTER - straight, male, Includes: Ref. 23

1шт.

23

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- adapter

1шт.

24

REF

INSTRUCTION

CYLINDER - boom, see Figures 362 and 364

1шт.
