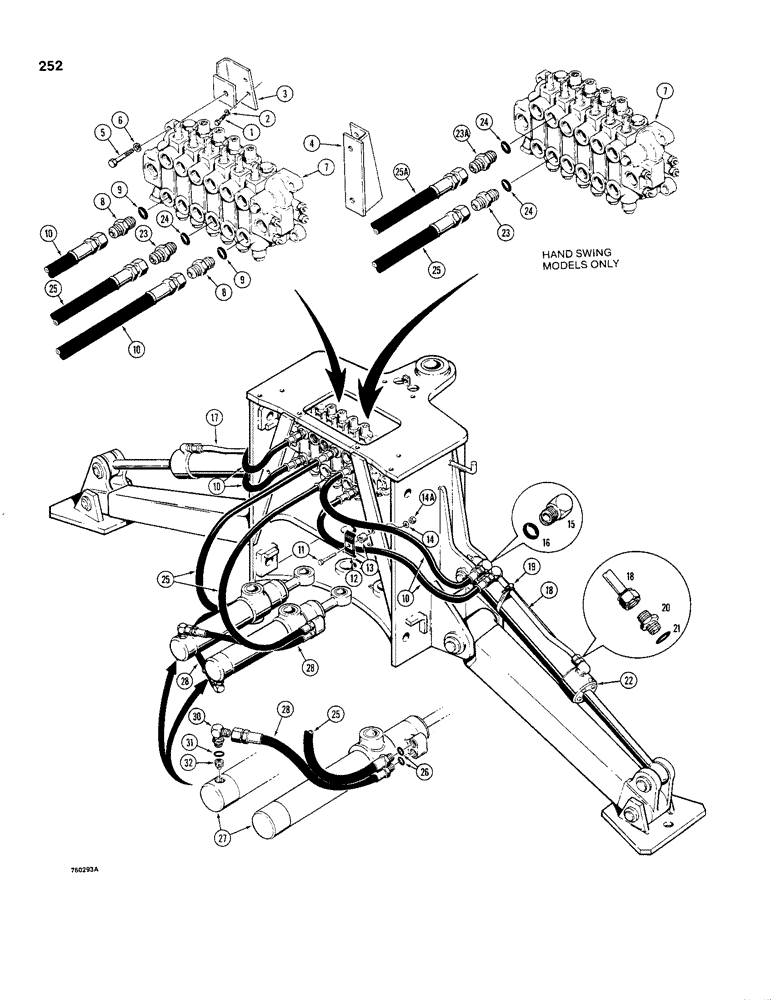

Запчасти Case 480C (252) - BACKHOE SWING AND STABILIZER CYLINDER, HYDRAULIC CIRCUIT (35) - HYDRAULIC SYSTEMS

1

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

4шт.

2

92-6

LOCK WASHER,3/8"

4шт.

3

D53984

BRACKET - valve mounting, left-hand

1шт.

4

D53987

BRACKET - valve mounting, right-hand

1шт.

5

113-412

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

3шт.

6

92-8

LOCK WASHER,1/2"

3шт.

7

REF

INSTRUCTION

CONTROL VALVE - backhoe, parts list page 305

1шт.

8

218-5078

HYD CONNECTOR,7/8" - 14 Male JIC x 1-5/16" - 12 Male ORB

ADAPTER - straight, male, stabilizer cyl hyd circuit, Includes: Ref. 9

4шт.

9

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- adapter, stabilizer cyl hyd circuit

1шт.

10

D50751

HOSE

- valve to cylinders, 33" (838 mm) long, stabilizer hyd circuit

4шт.

11

113-213

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 5

Stabilizer cyl hyd circuit Hex, 3/8"-16 x 2 1/4", G5

2шт.

12

D40236

CLAMP

- hose, stabilizer cyl hyd circuit

2шт.

13

D33829

BUSHING

SPACER - clamp, stabilizer cyl hyd circuit

2шт.

14

195-525

WASHER,3/8", SAE

- flat, 3/8", plated, stabilizer cyl hyd circuit

2шт.

14a

131-52

NUT,3/8"-16, GC

NUT - hex, self-locking, 3/8" - 16 NC, plated, stabilizer cyl hyd circuit

2шт.

15

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

- 90 degree, male, stabilizer cyl hyd circuit, Incl. Ref. 16

2шт.

16

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- elbow, stabilizer cyl hyd circuit

1шт.

17

D75341

HYD TUBE,0.625" OD x 1.42, 16.4" L

TUBE - valve to left-hand cylinder, rod end, stabilizer hyd circuit

1шт.

18

D75321

HYD TUBE,0.625" OD x 1.42, 16.4" L

TUBE - valve to right-hand cylinder, rod end, stabilizer hyd circuit

1шт.

19

214-267

HOSE CLAMP,#64, 3.56" - 4.5", Type F Worm

CLAMP - tube to cylinder, stabilizer hyd circuit

2шт.

20

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

ADAPTER - straight, male, stabilizer cyl hyd circuit, Includes: Ref. 21

2шт.

21

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- adapter, stabilizer cyl hyd circuit

1шт.

22

REF

INSTRUCTION

CYLINDER - standard backhoe stabilizer, see Figures 350 and 352, cyl hyd circuit

2шт.

22

REF

INSTRUCTION

CYLINDER - extendahoe stabilizer, see Figures 354 and 356, cyl hyd circuit

2шт.

23

218-5071

HYD CONNECTOR,3/4" - 16 Male JIC x 1-5/16" - 12 Male ORB

ADAPTER - straight, male, two used on models with foot swing, one used on models with hand swing, cyl hyd circuit

1-2шт.

23a

218-5078

HYD CONNECTOR,7/8" - 14 Male JIC x 1-5/16" - 12 Male ORB

ADAPTER - straight, male, used on models with hand swing, cyl hyd circuit, Includes: Ref. 24

1шт.

24

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- 218-5071 or 218-5078 adapter, swing cyl hyd circuit

1шт.

25

D37219

HOSE

- valve to cylinders, 30" (762 mm) long, two used on models with foot swing, one used on models with hand swing, hyd circuit

1-2шт.

25a

D55716

HOSE

- valve to cylinders, 34" (864 mm) long, used on models with hand swing, hyd circuit, Includes: Ref. 26

1шт.

27

REF

INSTRUCTION

CYLINDER - swing, see Figures 358 and 360, swing hyd circuit

2шт.

28

D39140

HOSE,12.7mm ID x 609.6mm L, SAE 100R2

- crossover, cylinders, 23-1/2" (597 mm) long, swing hyd circuit, Includes: Ref. 29

2шт.

30

218-5121

ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 7/8" - 14 Male ORB

- adjustable, 90 degree, swing cyl hyd circuit, Includes: Ref. 31

2шт.

31

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- elbow, swing cyl hyd circuit

1шт.

32

D45555

FITTING

RESTRICTOR - flow control, swing cyl hyd circuit

2шт.

26

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

- D37219 or D55716 hose, swing cyl hyd circuit

1шт.

29

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

- hose, at cylinder ports, not shown, swing hyd circuit

1шт.
