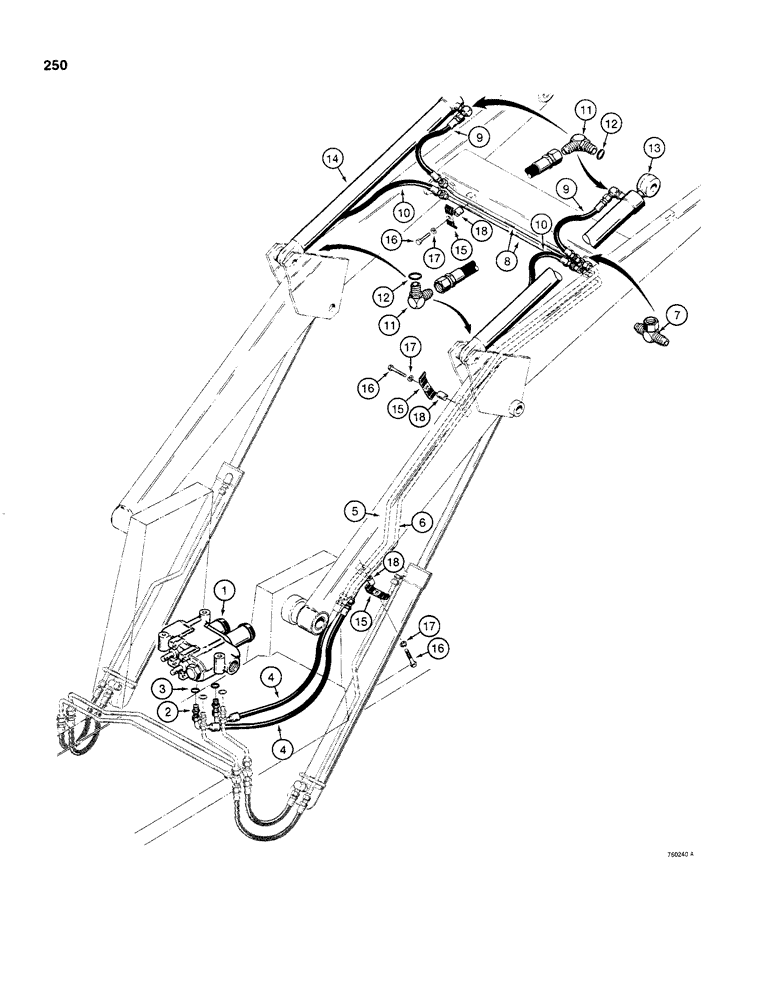

Запчасти Case 480C (250) - LOADER BUCKET CYLINDER HYDRAULIC CIRCUIT (35) - HYDRAULIC SYSTEMS

1

REF

INSTRUCTION

CONTROL VALVE - loader, see Figures 293 and 295 for correct assembly and components

1шт.

2

218-5060

HYD CONNECTOR,3/4" - 16 Male JIC x 7/8" - 14 Male ORB

Adapter, straight, male, Incl. Ref 3 3/4"-16, 37º x 7/8"-14, O-Ring

2шт.

3

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- adapter

1шт.

4

D69455

HOSE

- from valve, special, 36" (914 mm) long

2шт.

5

D69206

HYD TUBE,0.5" OD

TUBE - to rod end of cylinders

1шт.

6

D69208

HYD TUBE,0.5" OD x 61.95, 9.59" L

TUBE - to closed end of cylinders

1шт.

7

218-840

TEE,37 Degree, 3/4"-16 x 3/4"-16, Fem Sw Br

- right-hand to left-hand cylinders

2шт.

8

D68439

TUBE

- to left-hand cylinders

2шт.

9

D69204

HOSE

- to rod end of cylinders, 20" (508 mm) long

2шт.

10

D73244

HOSE

- to closed end of cylinders, 30-1/2" (775 mm) long

2шт.

11

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

- 90 degree, adjustable, Incl. Ref. 12

4шт.

12

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- elbow

1шт.

13

REF

INSTRUCTION

CYLINDER - bucket, right-hand, see Figures 346 and 348

1шт.

14

REF

INSTRUCTION

CYLINDER - bucket, left-hand, see Figures 346 and 348

1шт.

15

R17319

CLAMP

- tube

4шт.

16

113-104

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

4шт.

17

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

4шт.

18

D33551

BUSHING

SPACER - tube clamp

4шт.
