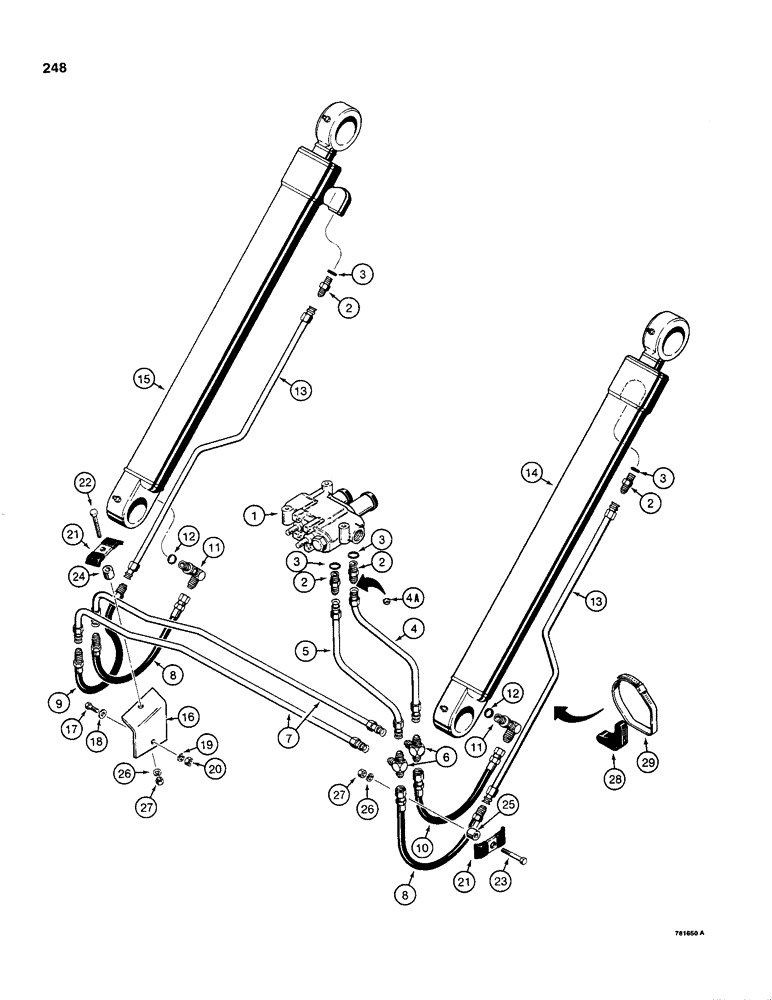

Запчасти Case 480C (248) - LOADER LIFT CYLINDER HYDRAULIC CIRCUIT, TRACTOR SERIAL NUMBER 8968653 AND AFTER (35) - HYDRAULIC SYSTEMS

1

REF

INSTRUCTION

CONTROL VALVE - loader, see Figures 293 and 295 for correct assembly and components

1шт.

2

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

ADAPTER - straight, male, Includes: Ref. 3

4шт.

3

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- adapter

1шт.

4

D74778

TUBE

- Gresen control valve to closed end of cylinders

1шт.

4

D88996

TUBE

- Parker control valve to closed end of cylinders, not shown

1шт.

4a

D74624

RESTRICTOR

- D74778 or D88996 tube

1шт.

5

D74776

TUBE

- Gresen control valve to rod end of cylinders

1шт.

5

D88994

TUBE ASSY.

TUBE - Parker control valve to rod end of cylinders, not shown

1шт.

6

218-595

TEE,7/8"-14, 37 Degree

- right-hand to left-hand cylinders

2шт.

7

D68600

HYD TUBE,0.625" OD x 35.2, 5.23" L

TUBE - to left-hand cylinders

2шт.

8

35646

HOSE

- to closed end to left-hand cylinder and rod end of right- hand cylinder, 22-3/4" (578 mm) long

2шт.

9

D38485

HOSE,12.7mm ID x 571.5mm L, SAE 100R2

- to rod end of left-hand cylinder, 22-1/2" (572 mm) long

1шт.

10

D27478

HOSE ASSY.

HOSE - to closed end of right-hand cylinder, 22" (559 mm) long

1шт.

11

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

- 90 degree, adjustable, Incl. Ref. 12

2шт.

12

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- elbow

1шт.

13

D69415

HYD TUBE,0.625" OD x 35, 3.4" L

TUBE - rod end of lift cylinders

2шт.

14

REF

INSTRUCTION

CYLINDER - lift, right-hand, see Figures 342 and 344

1шт.

15

REF

INSTRUCTION

CYLINDER - lift, left-hand, see Figures 342 and 344

1шт.

16

D72449

BRACKET

- tube clamp

1шт.

17

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

1шт.

18

195-525

WASHER,3/8", SAE

- flat, 3/8", plated

1шт.

19

92-6

LOCK WASHER,3/8"

1шт.

20

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

1шт.

21

D40236

CLAMP

- tube

2шт.

22

113-209

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

1шт.

23

113-219

BOLT,Hex, 3/8" - 16 x 2", Gr 5

1шт.

24

D76209

SPACER

- tube clamp

1шт.

25

D76210

SPACER

- tube clamp

1шт.

26

92-6

LOCK WASHER,3/8"

2шт.

27

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

2шт.

28

D38648

BLOCK

SPACER - tube clamp

2шт.

29

214-264

HOSE CLAMP,#52, 2.81" - 3.75", Type F Worm

CLAMP - cylinder tube

2шт.
