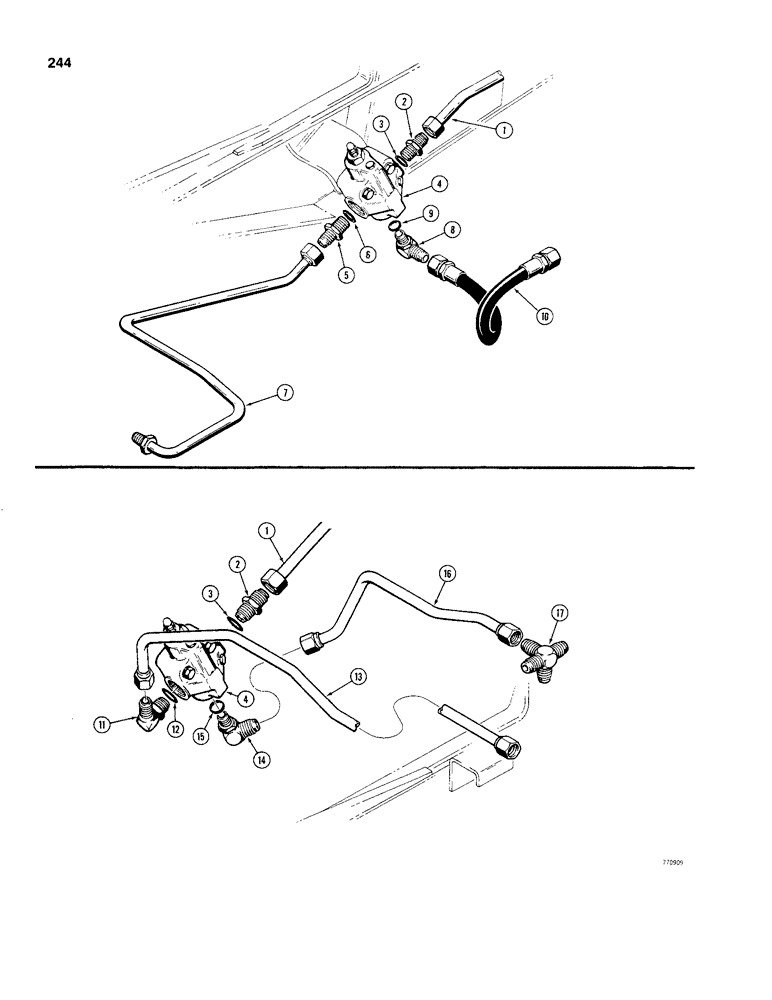

Запчасти Case 480C (244) - EQUIPMENT HYDRAULIC CIRCUIT, SPECIAL PARTS USED WITHOUT LOADER OR WITH PTO (35) - HYDRAULIC SYSTEMS

1

D72161

HYD TUBE,1" OD x 13.43, 38.51" L

TUBE - pressure, to relief valve

1шт.

2

218-5046

HYD CONNECTOR,1-5/16" - 12 Male JIC x 7/8" - 14 Male ORB

ADAPTER - straight, male, Includes: Ref. 3

1шт.

3

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- adapter

1шт.

4

REF

INSTRUCTION

RELIEF VALVE - see Figure 320

1шт.

5

218-5046

HYD CONNECTOR,1-5/16" - 12 Male JIC x 7/8" - 14 Male ORB

ADAPTER - straight, male, parts used on models w/o loader, Includes: Ref. 6

1шт.

6

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- adapter, parts used on models w/o loader

1шт.

7

D72159

HYD TUBE,1" OD

TUBE - pressure, rear equipment, parts used on models w/o loader

1шт.

8

218-5124

ELBOW,90 Degree Elbow, 1-5/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

Adjustable, Parts used on models w/o loader, Includes: Ref. 9 90º, 1 5/16"-12, 37º x 1 1/16"-12, O-Ring

1шт.

9

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- elbow, parts used on models w/o loader

1шт.

10

D49224

HOSE

- return, from relief valve, 28" (483 mm) long, parts used on models w/o loader

1шт.

11

218-5164

ELBOW,90 Degree Elbow, 1-5/16" - 12 Male JIC x 7/8" - 14 Male ORB

- 90 degree, adjustable, parts used on models w/ pto, Includes: Ref. 12

1шт.

12

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- elbow, parts used on models w/ pto

1шт.

13

D93586

HYD TUBE,1" OD x 29.2, 10.3" L

TUBE - pressure, to loader valve, parts used on models w/ pto

1шт.

14

218-5124

ELBOW,90 Degree Elbow, 1-5/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

Adjustable, Parts used on models w/ pto, Includes: Ref. 15 90º, 1 5/16"-12, 37º x 1 1/16"-12, O-Ring

1шт.

15

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- elbow, parts used on models w/ pto

1шт.

16

D78655

TUBE

- return from relief valve, parts used on models w/ pto

1шт.

17

D75275

TEE

FITTING - 4-way, return lines, parts used on models w/ pto

1шт.
