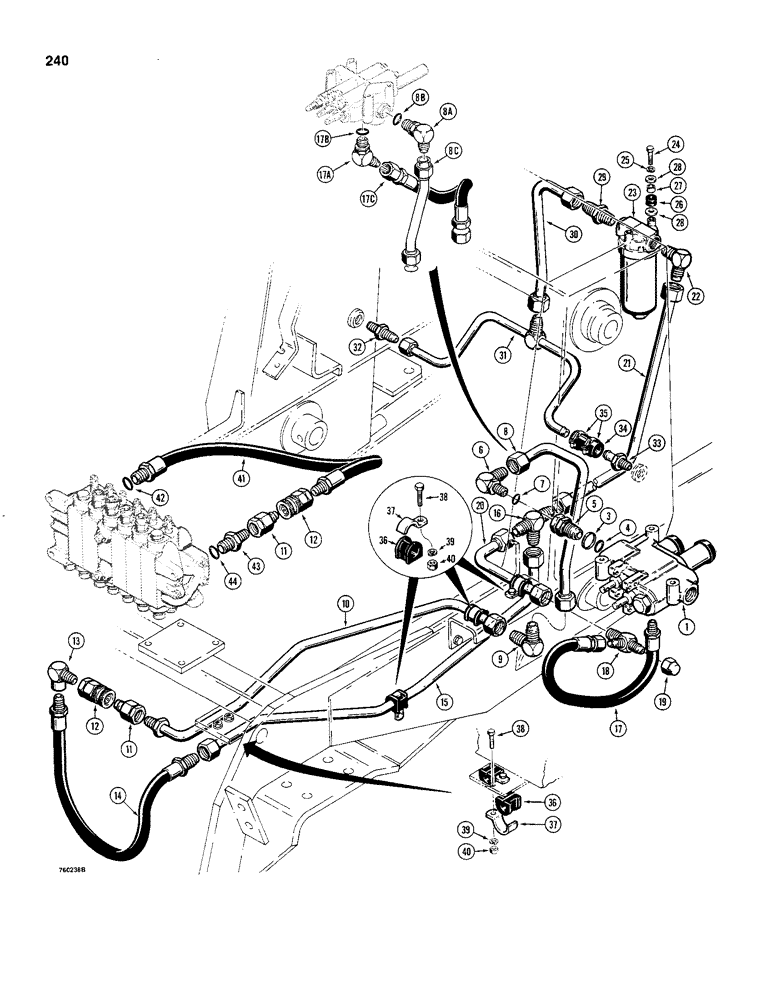

Запчасти Case 480C (240) - EQUIPMENT HYDRAULIC CIRCUIT, REAR EQUIPMENT AND RETURN LINES (35) - HYDRAULIC SYSTEMS

1

REF

INSTRUCTION

CONTROL VALVE - loader, see Figures 293 and 295

1шт.

2

RESERVED

1шт.

3

D48086

SEAL,1.358" ID

SEAL - ring, square section, sleeve

1шт.

4

N6306

O-RING

- special Teflon replaces section seal on some models

1шт.

5

D48085

SLEEVE

- power beyond

1шт.

6

218-5115

ELBOW,90 Degree Elbow, 1-5/16" - 12 Male JIC x 1-3/16" - 12 Male ORB

- 90 degree, adjustable, used with Gresen control valve, Includes: Ref. 7

1шт.

7

218-5009

O-RING,0.116" Thk x 1.048" ID, -914, Cl 6, 90 Duro

- 218-5115 elbow

1шт.

8

D74768

TUBE

- from Gresen loader control valve

1шт.

8a

218-5124

ELBOW,90 Degree Elbow, 1-5/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

Used with Parker control valve, Includes: Ref. 8B 90º, 1 5/16"-12, 37º x 1 1/16"-12, O-Ring

1шт.

8b

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- 218-5124 elbow

1шт.

8c

D88998

HYD TUBE,1" OD x 11.62, 1.18" L

TUBE - from Parker loader control valve

1шт.

9

218-478

ELBOW,90 Degree Elbow, 1-5/16" - 12 Male JIC x 1-5/16" - 12 Male JIC

- 90 degree

1шт.

10

D74770

HYD TUBE,1" OD x 15.8, 33.25" L

TUBE - to hydraulic coupling

1шт.

11

D52694

QUICK MALE COUPLING

QUICK DISCONNECT - coupling, male, parts list Figure 340

1-2шт.

12

D52800

COUPLING, QUICK, FEM

QUICK DISCONNECT - coupling, female, parts list Figure 340

1-2шт.

13

217-1020

90 ELBOW,3/4" - 14 Female x 3/4" - 14 Male

Street 90º, 3/4"-14 Female x 3/4"-14 Male

1шт.

14

D49118

HOSE

- return, 33" (838 mm) long

1шт.

15

D75526

TUBE

- return, rear equipment

1шт.

16

218-598

TEE,1 5/16"-12 37 Degree

- return lines

1шт.

17

D75042

HOSE

- from Gresen loader control valve, 19" (483 mm) long

1шт.

17a

218-5138

ELBOW,45 Degree Elbow, 1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

- 45 degree, Parker loader control valve outlet, Includes: Ref. 17B

1шт.

17b

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- 218-5138 elbow

1шт.

17c

R25267

HOSE

- from Parker loader control valve, 12" (305 mm) long

1шт.

18

218-589

TEE,37 Degree, 1 1/16"-12 x 1 5/16"-12, Run

- control valve hose to tube

1шт.

19

218-335

CAP,37 Degree, 1 1/16"-12

Tee 37º, 1 1/16"-12

1шт.

20

D74772

TUBE

-, Serial Range: tee-tee

1шт.

21

D69643

TUBE

- filter inlet, models without PTO, for models with PTO see Figure 272 or 274

1шт.

22

D65646

FITTING

ELBOW - 90 degree, models without PTO, for models with PTO see Figure 272 or 274

1шт.

23

REF

INSTRUCTION

FILTER - hydraulic oil, see Figure 338

1шт.

24

113-410

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

2шт.

25

92-8

LOCK WASHER,1/2"

2шт.

26

D67915

GROMMET

- rubber mounting

2шт.

27

D65660

BUSHING

SPACER - filter mouning

2шт.

28

195-536

WASHER,1/2" x 1 7/8" x .109"

- flat, 1/2", plated

4шт.

29

218-448

HYD CONNECTOR,1-5/16" - 12 Male JIC x 1" - 11-1/2 Male NPTF

CONNECTOR - filter outlet, male

1шт.

30

D68532

TUBE - return from filter

1шт.

31

D68536

TUBE

- return to tank, models without PTO, for models with PTO see Figure 277

1шт.

32

218-446

HYD CONNECTOR,1-1/16" - 12 Male JIC x 3/4" - 14 Male NPTF

ADAPTER - male, straight

1шт.

33

217-155

FITTING,3/4" Hose Barb x 3/4" Male NPTF

STEM FITTING -at right-hand reservoir

1шт.

34

R20804

HOSE,19.00 mm ID x 76.20 mm, SAE 100R3

Return Tube 19.00 mm ID x 76.20 mm, SAE 100R3

1шт.

35

214-255

HOSE CLAMP,#16, 0.81" - 1.5", Type F Worm

2шт.

36

D67297

BLOCK

INSULATOR - tube clamp

5шт.

37

D68846

CLAMP

- tube

5шт.

38

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

5шт.

39

92-6

LOCK WASHER,3/8"

5шт.

40

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

5шт.

41

D39543

HOSE

- tractor to backhoe, 41" (1041 mm) long, Includes: Ref. 42

1шт.

42

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- hose

1шт.

43

218-5017

ADAPTER

- straight, male, backhoe valve outlet port, Includes: Ref. 44

1шт.

44

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- adapter

1шт.
