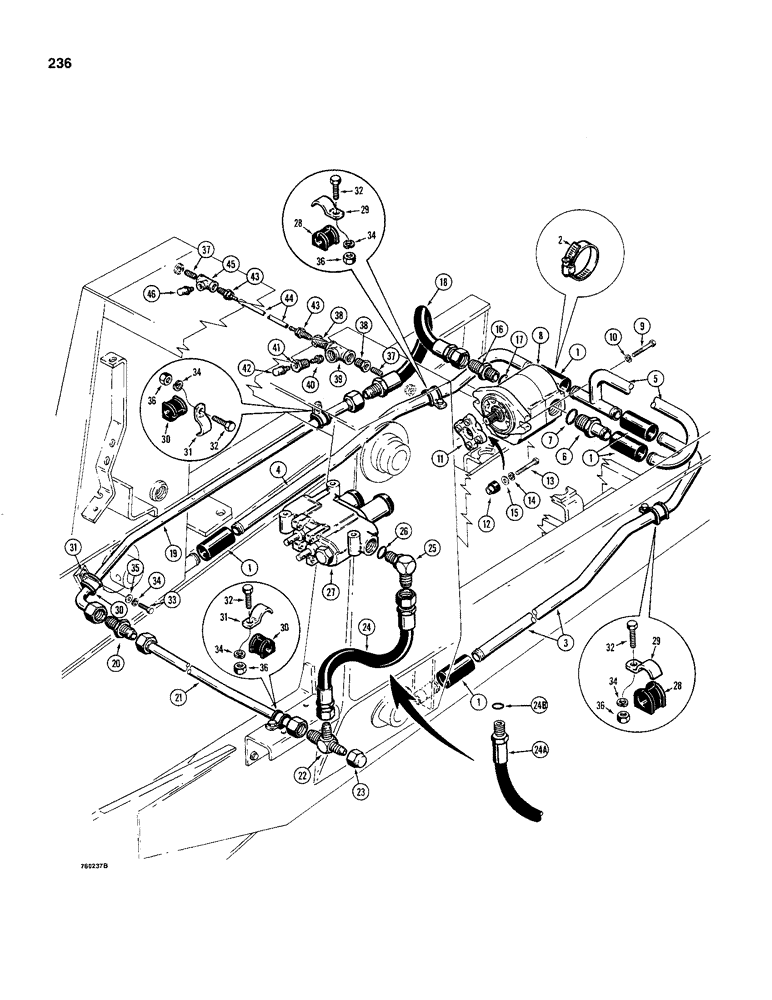

Запчасти Case 480C (236) - EQUIPMENT HYDRAULIC CIRCUIT, RESERVOIR TO LOADER VALVE (35) - HYDRAULIC SYSTEMS

1

R13911

HOSE,31.80 mm ID x 101.60 mm ID, SAE 100R3

- suction tubes 31.80 mm ID x 101.60 mm ID, SAE 100R3

5шт.

2

214-257

HOSE CLAMP,#24, 1.06" - 2", Type F Worm

10шт.

3

D71972

HYD TUBE,1.25" OD x 7.55, 39.12" L

TUBE - suction, right-hand

1шт.

4

D71974

HYD TUBE,1.25" OD x 7.55, 32.34" L

TUBE - suction, left-hand

1шт.

5

D65691

TUBE

- manifold, suction

1шт.

6

217-178

FITTING,1-1/4" Hose Barb x 1-5/8" - 12 Male ORB

STEM FITTING - hose stem, at pump, Incl. Ref. 7

1шт.

7

218-5011

O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro

- stem fitting

1шт.

8

REF

INSTRUCTION

HYDRAULIC PUMP - equipment, see Figures 284-290 for correct pump and parts lists

1шт.

9

113-410

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

2шт.

10

92-8

LOCK WASHER,1/2"

2шт.

11

D90883

SPLINED COUPLING

COUPLING - hydraulic pump, Includes: Ref. 12

1шт.

12

A45216

BUSHING

- pump coupling

4шт.

13

113-311

BOLT,Hex, 7/16" - 14 x 1-1/2", Gr 5

4шт.

14

92-7

LOCK WASHER,7/16"

4шт.

15

A30013

WASHER,11.51mm ID x 19.05mm OD x 1.59mm Thk

- flat, special

4шт.

16

218-5069

HYD CONNECTOR,1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

Adapter - straight, male, Incl. Ref. 17

1шт.

17

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- adapter

1шт.

18

D68547

HOSE,19.05mm ID x 200mm L, SAE 100R2

- pump pressure, 20" (508 mm) long

1шт.

19

D70411

HYD TUBE,1" OD

TUBE - pressure, loader models

1шт.

20

218-739

UNION,1 5/16"-12, 37 Degree x 1 5/16"-12, 37 Degree

ADAPTER - straight, male

1шт.

21

D73061

TUBE

- pressure, to loader control valve

1шт.

22

218-589

TEE,37 Degree, 1 1/16"-12 x 1 5/16"-12, Run

- male

1шт.

23

218-335

CAP,37 Degree, 1 1/16"-12

Tee 37º, 1 1/16"-12

1шт.

24

D74750

HOSE

- to Gresen loader control valve, 18" (457 mm) long

1шт.

24a

D73319

HOSE

- to Parket loader control valve, 14" (356 mm) long, Includes: Ref. 24B

1шт.

24b

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- D73319 hose, at control valve port

1шт.

25

218-5115

ELBOW,90 Degree Elbow, 1-5/16" - 12 Male JIC x 1-3/16" - 12 Male ORB

- 90 degree, adjustable, used with Gresen control valve only, Includes: Ref. 26

1шт.

26

218-5009

O-RING,0.116" Thk x 1.048" ID, -914, Cl 6, 90 Duro

- elbow

1шт.

27

REF

INSTRUCTION

CONTROL VALVE - loader, see Figures 293 and 295

1шт.

28

D67298

INSULATOR

- suction tube

2шт.

29

D68845

MOUNTING CLIP

CLAMP - suction tube

2шт.

30

D67297

BLOCK

INSULATOR - pressure tube

3шт.

31

D68846

CLAMP

- pressure tube

3шт.

32

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

4шт.

33

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

1шт.

34

92-6

LOCK WASHER,3/8"

5шт.

35

195-525

WASHER,3/8", SAE

- flat, 3/8", plated

1шт.

36

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

4шт.

37

221-130

PIPE,Nipple, 1/4" NPT x 7/8"

NIPPLE - 1/4" NPT, do not use plated nipple this location

2шт.

38

221-88

REDUCER,Hex, 1/2" x 1/4" NPT

BUSHING - reducer, do not use plated bushing this location

2шт.

39

221-441

TEE,1/2" NPT x 3/4 NPT Br

- right-hand side, female

1шт.

40

D63543

BREATHER

FILTER - relief valve

1шт.

41

D63506

ADAPTER

- relief valve

1шт.

42

R15538

VALVE

RELIEF VALVE - air inlet

1шт.

43

220-502

COUPLING, BREAK AWAY

ADAPTER - hose coupling

2шт.

44

D72098

HOSE,0.25" ID x 17.00", SAE 30R6 or SAE 30R7

Relief Valve 0.25" ID x 17.00", SAE 30R6 or SAE 30R7

1шт.

45

221-430

TEE,1/4" NPT x 1/4 NPT Br

- relief valve, female

1шт.

46

R15536

VALVE

RELIEF VALVE - air outlet

1шт.
