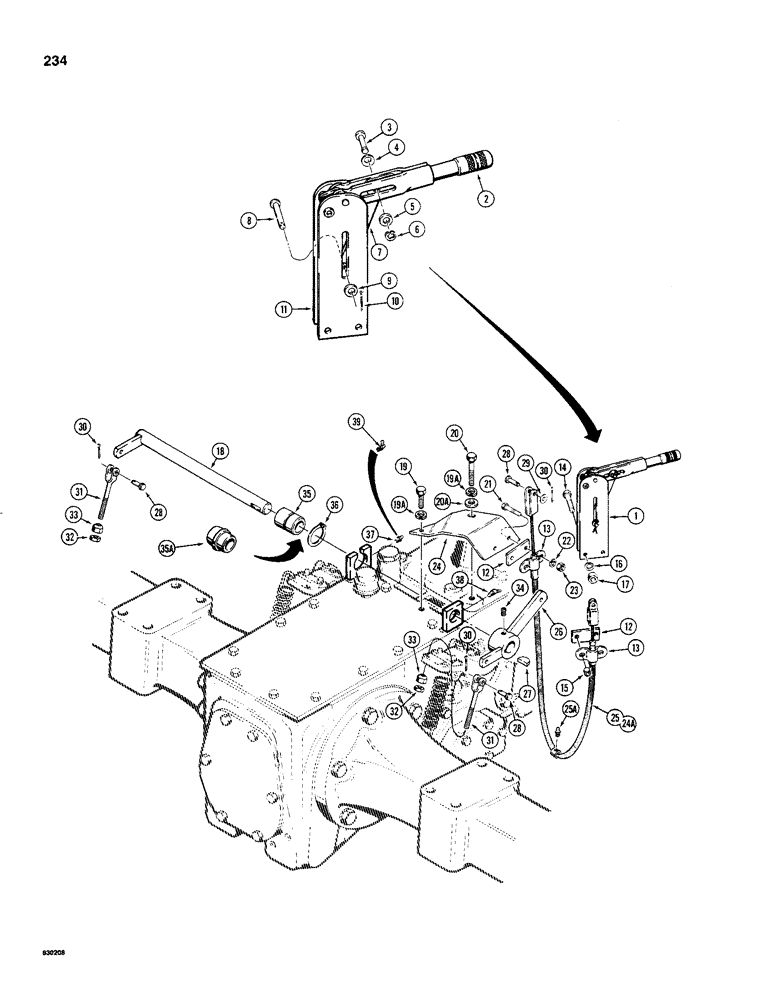

Запчасти Case 480C (234) - PARKING BRAKE (33) - BRAKES & CONTROLS

1

D75370

LEVER

ASSEMBLY - hand brake, Includes: Ref. 2 - 11

1шт.

2

NSS

NOT SOLD SEPARAT

HANDLE - brake lever

1шт.

3

A42204

PIN

- handle to link, if used

1шт.

4

A55934

WASHER

- wave, if used

1шт.

5

195-103

WASHER,5/16"

- flat, , plated, if used 5/16"

1шт.

6

C14652

RING

- retaining, if used

1шт.

7

NSS

NOT SOLD SEPARAT

LINK - brake lever

1шт.

8

L30975

AXLE PIN,7.82mm OD x 39.69mm L

PIN -, Serial Range: link-bracket

1шт.

9

195-103

WASHER,5/16"

- flat, , plated 5/16"

1шт.

10

132-320

COTTER PIN,3/32" x 3/4"

PIN, SPLIT (COTTER), 3/32" x 3/4"

1шт.

11

NSS

NOT SOLD SEPARAT

BRACKET - brake lever

1шт.

12

D92089

SPACER

PLATE - spacer

2шт.

13

D121608

CLAMP

- cable, 1/2"

2шт.

14

113-121

BOLT,Hex, 5/16" - 18 x 2", Gr 5

2шт.

15

D69991

SPACER

- clamp

2шт.

16

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

2шт.

17

9635082

NUT,5/16" - 18, Gr 5

2шт.

18

D69400

SHAFT

- hand brake

1шт.

19

113-209

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

1шт.

19a

92-6

LOCK WASHER,3/8"

2шт.

20

113-219

BOLT,Hex, 3/8" - 16 x 2", Gr 5

1шт.

20a

195-525

WASHER,3/8", SAE

- flat, 3/8", plated

1шт.

21

113-122

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

2шт.

22

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

2шт.

23

9635082

NUT,5/16" - 18, Gr 5

2шт.

24

D69997

BRACKET

- cable mounting

1шт.

24a

D69994

CABLE

- hand brake, without grease fitting, no longer used, order Ref. 25

1шт.

25

D122264

CABLE

- hand brake, Includes: Ref. 25A

1шт.

25a

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, (straight) 1/4"-28 NPT x .54" lg

1шт.

26

D69995

LEVER

ARM - hand brake

1шт.

27

126-24

WOODRUFF KEY,#15, 1/4" x 1"

1шт.

28

141-53

CLEVIS PIN,5/16" x .940"

plated 5/16" x .940"

3шт.

29

195-521

WASHER,5/16", SAE

- flat, 5/16", plated

1шт.

30

132-330

COTTER PIN,3/32" x 1/2"

PIN, SPLIT (COTTER), 3/32" x 1/2"

3шт.

31

D69411

ROD

- hand brake

2шт.

32

9635082

NUT,5/16" - 18, Gr 5

2шт.

33

D69410

NUT

- hand brake, 5/16" - 18 NC, special

2шт.

34

85-610

SET SCREW,Sq Hd, 3/8"-16 x 5/8"

- 3/8" - 16 NC x 5/8"

1шт.

35

D69982

BUSHING

- spacer, with snap ring groove, if used

1шт.

35a

D74218

BUSHING

- spacer, does not use snap ring, if used

1шт.

36

D25279

SNAP RING,M35, Int

RING - retaining, used with D69982 bushing only

1шт.

37

86636814

LUBE NIPPLE,1/4"-28 x .52" lg

GREASE FITTING - straight, 1/4" - 28 NF, Used on some models before tractor S/N 8981136

1шт.

38

219-38

LUBE NIPPLE,45 Degree Elbow, 1/4" - 28 NPTF

GREASE FITTING - 45 degree, 1/4" - 28 taper, used on some models before tractor SN 8981136

1шт.

39

219-57

LUBE NIPPLE,90 Degree Elbow, 1/4" - 28 NPTF

GREASE FITTING - 90 degree, 1/4" - 28 taper, used on tractor SN 9006842 and after, used in place of Refs. 37 and 38 on some models with grease gun access holes in floor plate

2шт.
