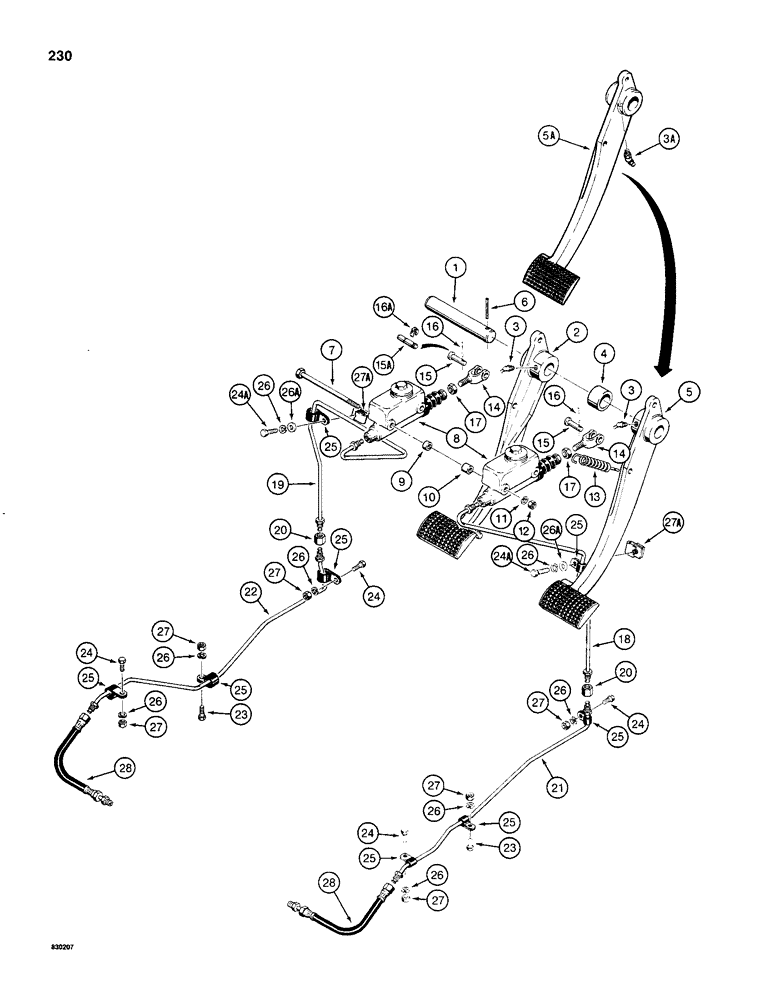

Запчасти Case 480C (230) - BRAKE PEDALS AND BRAKE SYSTEM, MECHANICAL SHUTTLE MODELS ONLY (33) - BRAKES & CONTROLS

1

D67983

SHAFT

- brake pedals

1шт.

2

D67993

PEDAL

- brake, left-hand, used with Ref. 3, no longer available, order Refs. 2A and 3A

1шт.

2a

D90751

PEDAL

- brake, left-hand, not shown

1шт.

3

219-40

LUBE NIPPLE,65 Degree Elbow, 1/8" - 27 NPTF

GREASE FITTING - 65 degree, 1/8" NPT, if used

2шт.

3a

219-31

LUBE NIPPLE,30 Degree Elbow, 1/8" - 27 NPTF

GREASE FITTING - 30 degree, 1/8" NPT

2шт.

4

D88906

SPACER - brake

1шт.

5

D67988

PEDAL

- brake, right-hand, used with Ref. 3, no longer available, order Refs. 3A and 5A

1шт.

5a

D90654

PEDAL

- brake, right-hand

1шт.

6

138-177

LOCK PIN,3/8" x 2", Slotted

PIN, 3/8" x 2", Slotted

1шт.

7

113-254

BOLT,Hex, 3/8" - 16 x 6-1/2", Gr 5

- hex head, 3/8" - 16 NC x 6-1/2", plated

2шт.

8

REF

INSTRUCTION

CYLINDER - master, brake, parts list Figure 232

2шт.

9

D76211

SPACER

- master cylinder, left-hand

2шт.

10

D76207

BUSHING

SPACER - master cylinder, right-hand

2шт.

11

92-6

LOCK WASHER,3/8"

2шт.

12

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

2шт.

13

D129921

SPRING

- brake pedal return

2шт.

14

D38620

YOKE

CLEVIS - threaded, master cylinder

2шт.

15

141-64

CLEVIS PIN,7/16" x 1.190"

plated, used on units without brake lamps 7/16" x 1.190"

2шт.

15a

D68737

PIN

- brake lamp switch actuating, if used

2шт.

16

132-320

COTTER PIN,3/32" x 3/4"

PIN, SPLIT (COTTER), , If used 3/32" x 3/4"

2шт.

16a

G32429

RING

- retaining, if used

4шт.

17

129-164

JAM NUT,Hex, 7/16" - 20, Gr 5

Jam, 7/16"- 20, G5

2шт.

18

D68117

TUBE - brake, right-hand, upper

1шт.

19

D68119

TUBE

- brake, left-hand, upper

1шт.

20

222-1053

HYD CONNECTOR,1/4" Inv Fl

ADAPTER - female, tube union

2шт.

21

D69282

HYD TUBE,0.25" OD x 25.06, 4.96" L

TUBE - brake, right-hand, lower

1шт.

22

D68280

TUBE - brake, left-hand, lower

1шт.

23

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

2шт.

24

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

4шт.

24a

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

2шт.

25

515-2363

CLAMP,M6.3, Insul, 3/8" Bolt

- P-type

8шт.

26

92-6

LOCK WASHER,3/8"

8шт.

26a

195-525

WASHER,3/8", SAE

- flat, 3/8", plated

2шт.

27

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

6шт.

27a

131-634

SPRING NUT,J, Ret, 3/8"-16

- speed, J-type, 3/8" - 16 NC

2шт.

28

D66741

HOSE,6.35mm ID x 270mm L

- brake

2шт.
