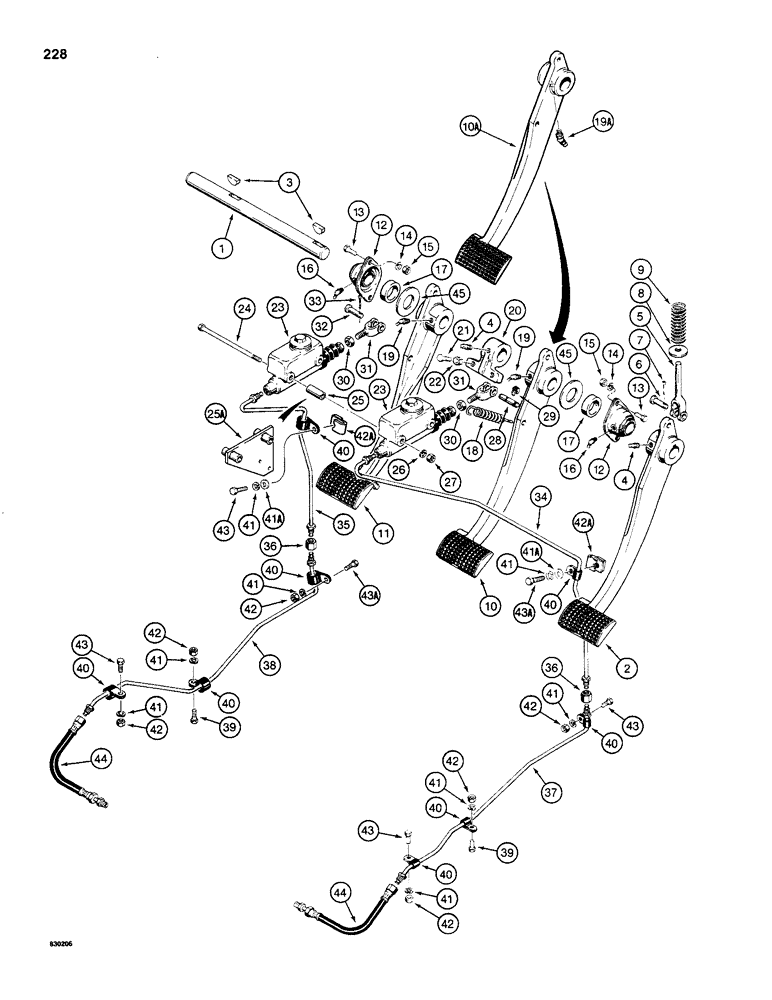

Запчасти Case 480C (228) - BRAKE PEDALS AND BRAKE SYSTEM, POWER SHUTTLE MODELS ONLY (33) - BRAKES & CONTROLS

1

D66125

SHAFT

- brake pedals

1шт.

2

D67987

PEDAL

- brake, right-hand

1шт.

3

126-33

WOODRUFF KEY,#D, 5/16" x 1 1/4"

#D, 5/16" x 1-1/4"

2шт.

4

85-612

SET SCREW,Sq Hd, 3/8"-16 x 3/4"

- square head, 3/8" - 16 NC x 3/4"

2шт.

5

D66142

YOKE

CLEVIS - brake, right-hand pedal

1шт.

6

141-64

CLEVIS PIN,7/16" x 1.190"

plated 7/16" x 1.190"

1шт.

7

132-320

COTTER PIN,3/32" x 3/4"

PIN, SPLIT (COTTER), 3/32" x 3/4"

1шт.

8

195-105

WASHER,7/16"

- flat, , plated 7/16"

1шт.

9

D72404

SPRING

- brake pedal, right-hand

1шт.

10

D67988

PEDAL

- brake, center, used with Ref. 19, no longer available, order Refs. 10A and 19A

1шт.

10a

D90654

PEDAL

- brake, center

1шт.

11

D67993

PEDAL

- brake, left-hand, used with Ref. 19, no longer available, order Refs. 11A and 19A

1шт.

11a

D90751

PEDAL

- brake, left-hand, not shown

1шт.

12

D77731

FLANGED BEARING

BEARING - flanged, brake pedal mounting

2шт.

13

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

4шт.

14

92-6

LOCK WASHER,3/8"

4шт.

15

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

4шт.

16

219-36

LUBE NIPPLE,45 Degree Elbow, 1/8" - 27 NPTF

GREASE FITTING - 45 degree, 1/8" NPT

2шт.

17

D89715

SPACER

- brake

2шт.

18

D129921

SPRING

- brake return

2шт.

19

219-40

LUBE NIPPLE,65 Degree Elbow, 1/8" - 27 NPTF

GREASE FITTING - 65 degree, 1/8" NPT, if used

2шт.

19a

219-31

LUBE NIPPLE,30 Degree Elbow, 1/8" - 27 NPTF

GREASE FITTING - 30 degree, 1/8" NPT

2шт.

20

D68123

STOP

- brake

1шт.

21

113-242

BOLT

BOLT - hex head, 3/8" - 16 NC x 1-1/4"

2шт.

22

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

2шт.

23

REF

INSTRUCTION

CYLINDER - master, brake, parts list Figure 232

2шт.

24

113-251

BOLT,Hex, 3/8" - 16 x 7-1/2", Gr 5

- hex head, 3/8" - 16 NC x 7-1/2", plated

2шт.

25

D76196

SPACER

- brake lamp switch, without rear lamps, if used

2шт.

25a

D84103

PLATE - brake lamp switch, with rear lamps, if used

1шт.

26

92-6

LOCK WASHER,3/8"

2шт.

27

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

2шт.

28

D68737

PIN

- actuating, used before SN 8980956, if used

1-2шт.

29

G32429

RING

- retaining, if used

2-4шт.

30

129-164

JAM NUT,Hex, 7/16" - 20, Gr 5

Jam, 7/16"- 20, G5

2шт.

31

D38620

YOKE

CLEVIS - threaded, brake master cylinder

2шт.

32

141-64

CLEVIS PIN,7/16" x 1.190"

plated, if used 7/16" x 1.190"

1-2шт.

33

132-320

COTTER PIN,3/32" x 3/4"

PIN, SPLIT (COTTER), , If used 3/32" x 3/4"

1-2шт.

34

D75774

TUBE

- brake, right-hand, upper

1шт.

35

D75776

TUBE,0.25" OD

- brake, left-hand, upper

1шт.

36

222-1053

HYD CONNECTOR,1/4" Inv Fl

ADAPTER - female, tube union

2шт.

37

D69282

HYD TUBE,0.25" OD x 25.06, 4.96" L

TUBE - brake, right-hand, lower

1шт.

38

D69280

HYD TUBE,0.25" OD x 25.06, 4.96" L

TUBE - brake, left-hand, lower

1шт.

39

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

2шт.

40

49851

SHIELD

- tube

8шт.

41

92-6

LOCK WASHER,3/8"

8шт.

41a

195-525

WASHER,3/8", SAE

- flat, 3/8", plated

2шт.

42

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

6шт.

42a

131-634

SPRING NUT,J, Ret, 3/8"-16

- speed, J-type, 3/8" - 16 NC

2шт.

43

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

4шт.

43a

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

2шт.

44

D66741

HOSE,6.35mm ID x 270mm L

- brake

2шт.

45

195-2125

WASHER,1 5/16" x 2" x .109"

- flat, 2"

1шт.
