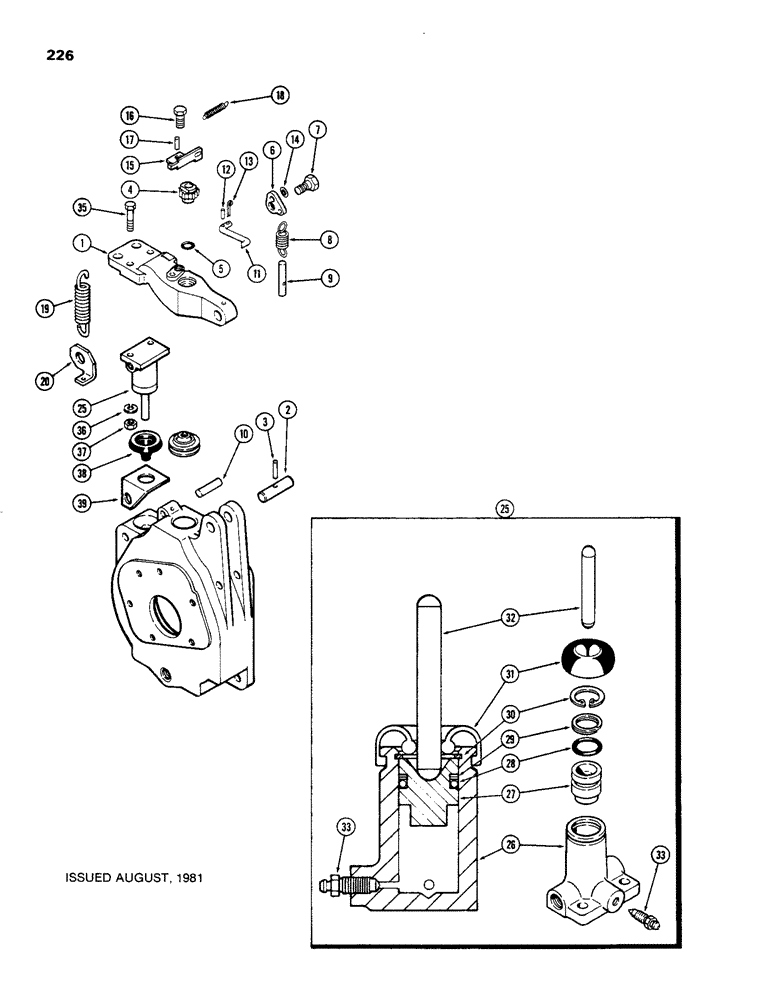

Запчасти Case 480C (226) - DIFFERENTIAL BRAKE LEVER AND LOCK, TRANSAXLE (33) - BRAKES & CONTROLS

1

A51969

LEVER

- brake

2шт.

2

A154569

PIN

- brake lever pivot

2шт.

3

138-98

LOCK PIN,3/16" x 1 1/4", Slotted

PIN, , Pivot pin 3/16" x 1 1/4", Slotted

2шт.

4

A148118

NUT

- ratchet, brake adjusting

2шт.

5

A27891

O-RING,0.103" Thk x 0.362" ID, -110, Cl 5, 75 Duro

- adjusting nut, 3/8 x 9/16 x 3/32" (9.53 x 14.29 x 2.38 mm)

2шт.

6

A64490

CAM

- self adjusting brake

2шт.

7

A64490

CAM

BOLT - cam pivot

2шт.

8

A60489

SPRING

- self adjusting brake cam

2шт.

9

A51971

ROD

PIN - spring limit, 5/16 x 2-1/4" (7.94 x 57.15 mm)

2шт.

10

REF

INSTRUCTION

PIN - spring anchor (See Figure 224)

2шт.

11

A51970

ROD

- ratchet lock

2шт.

12

138-20

LOCK PIN,5/64" x 1/2", Slotted

PIN - rod retaining, inside (1/16 x 1/2" roll)

2шт.

13

132-5

COTTER PIN,1/16" x 1/2"

Pin, Split (Cotter), , Rod, outer 1/16" x 1/2"

2шт.

14

S67607

SNAP RING,#25, Ext

Ring, Snap, , grip, brake rod to cam #25, Ext

2шт.

15

A59609

BRACKET

- self adjusting brake

2шт.

16

61-68

HEX SOC SCREW,3/8"-16 x 1/2"

BOLT - bracket (3/8 x 1/2" NC hex socket head)

2шт.

17

138-92

LOCK PIN,3/16" x 3/4", Slotted

PIN, , Bracket anchor 3/16" x 3/4", Slotted

2шт.

18

A60555

SPRING

- ratchet rod return

2шт.

19

A35789

SPRING

- bracke return, 4" free length (101.6 mm)

2шт.

20

A51974

BRACKET

- anchor, return spring, right hand

1шт.

20

A51975

BRACKET

- anchor, return spring, left hand

1шт.

25

A51976

CYLINDER

ASSEMBLY - brake, differential, Includes: Ref. 26 - 33

2шт.

26

NSS

NOT SOLD SEPARAT

BODY - cylinder, differential brake

1шт.

A45383

PISTON

ASSEMBLY, differential brake cyl, Includes: Ref. 27 - 29

1шт.

27

NSS

NOT SOLD SEPARAT

PISTON, differential brake cyl

1шт.

28

L32132

O-RING,0.679" ID x 0.106" Width

- piston, 11/16 x 7/8 x 3/32" (17.46 x 22.23 x 2.38 mm), differential brake cyo

1шт.

Part of Repair Kit, P/N A45387

1шт.

29

A42252

SEALING RING

RING - o-ring backup, differential brake cyl

1шт.

Part of Repair Kit, P/N A45387

1шт.

30

A42256

SNAP RING,0.901", Int, #90

piston, differential brake cylinder 0.901", Int, #90

1шт.

PLUG FOR UNUSED PORT IN REF 30, A51976 IS 222-1062 PER NOT IN HARD COPY CATALOG.

1шт.

Part of Repair Kit, P/N A45387

1шт.

31

A45382

COVER

- cylinder weatherseal (Rubber Boot), differential brake

1шт.

Part of Repair Kit, P/N A45387

1шт.

32

A42254

ROD

- push, differential brake cyl

1шт.

Part of Repair Kit, P/N A45387

1шт.

33

A41491

BLEEDER,1/4" - 28 x 23.37mm

- cylinder bleeder, differential brake

1шт.

A45387

KIT

REPAIR KIT - wheel cylinder, Includes Refs., 28, 29, 30, 31 and 32, differential brake

2шт.

35

13-420

BOLT,Hex, 1/4" - 20 x 1-1/4", Gr 5

Brake cylinder to lever, Differential Hex, 1/4"-20 x 1 1/4", G5

4шт.

36

92-4

LOCK WASHER,1/4"

WASHER, LOCK, , Differential brake cylinder 1/4"

4шт.

37

25-104

NUT,1/4"-20, G5

Differential brake cylinder 1/4"-20, G5

4шт.

38

A41490

BOOT

COVER - dirt, brake cylinder (Rubber Boot), differential

2шт.

39

A154558

BRACKET

- cover, right hand, differential brake cyl

1шт.

39

A154557

BRACKET

- cover, left hand, differential brake cyl

1шт.
