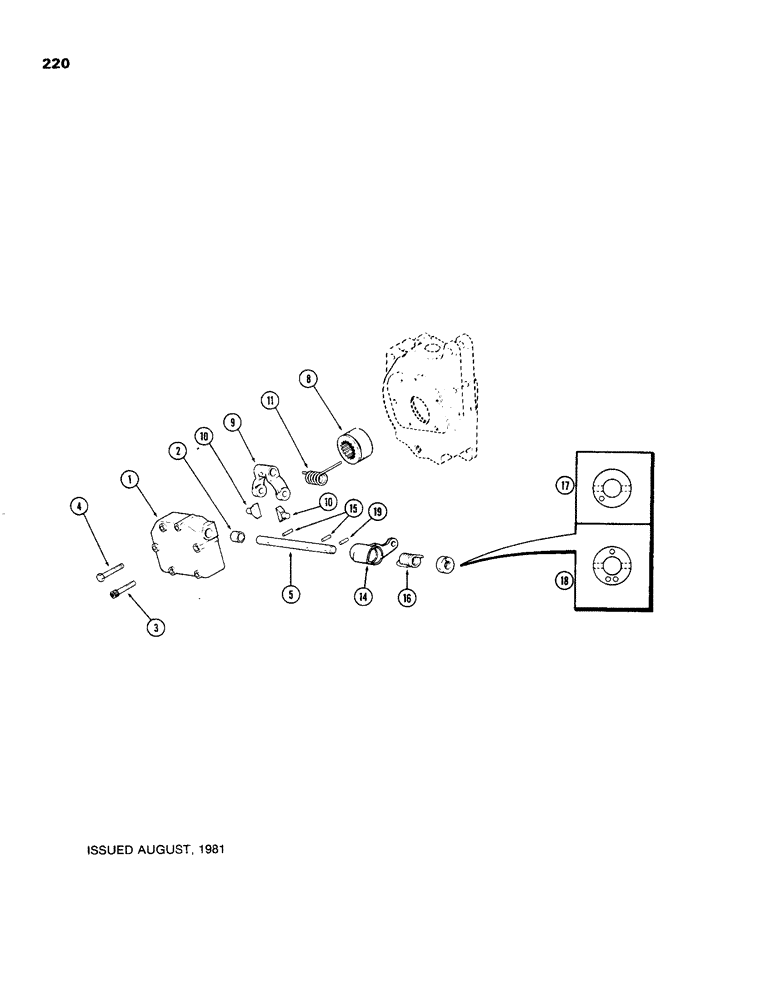

Запчасти Case 480C (220) - DIFFERENTIAL LOCK, TRANSAXLE (27) - REAR AXLE SYSTEM

1

A155606

COVER

ASSEMBLY - lock (on right hand brake housing), Includes: Ref. 2

1шт.

2

A35925

BUSHING

- cover, 5/8 x 3/4 x 3/4" (15.88 x 19.05 x 19.05 mm)

1шт.

3

61-536

HEX SOC SCREW,5/16"-18 x 2 1/4"

SCREW - cover, 5/16 x 2-1/4" NC hex socket head

5шт.

4

13-540

BOLT,Hex, 5/16" - 18 x 2-1/2", Gr 5

Cover Hex, 5/16"-18 x 2 1/2", G5

5шт.

7

A37564

SHAFT

- actuating

1шт.

8

A142029

COLLAR

- differential lock

1шт.

9

A38749

LEVER

- collar throw-out

1шт.

10

A65101

FINGER

S - lever to collar (Replaces A38750)

2шт.

11

A35933

SPRING

- throw-out lever

1шт.

14

A148426

LEVER

- actuating (Replaces A51977)

1шт.

15

138-96

LOCK PIN,3/16" x 1", Slotted

PIN, , Levers to shaft 3/16" x 1", Slotted

2шт.

16

A36446

SPRING

- actuating lever

1шт.

17

A36447

RETAINER

- actuating lever spring (with 1 hole) (Used prior to transmission serial no. 10046712)

1шт.

18

A148619

RETAINER

- actuating lever spring (with 3 holes) (Used transmission serial no. 10046712 and after)

1шт.

19

138-98

LOCK PIN,3/16" x 1 1/4", Slotted

PIN, , Retainer to shaft 3/16" x 1 1/4", Slotted

1шт.
