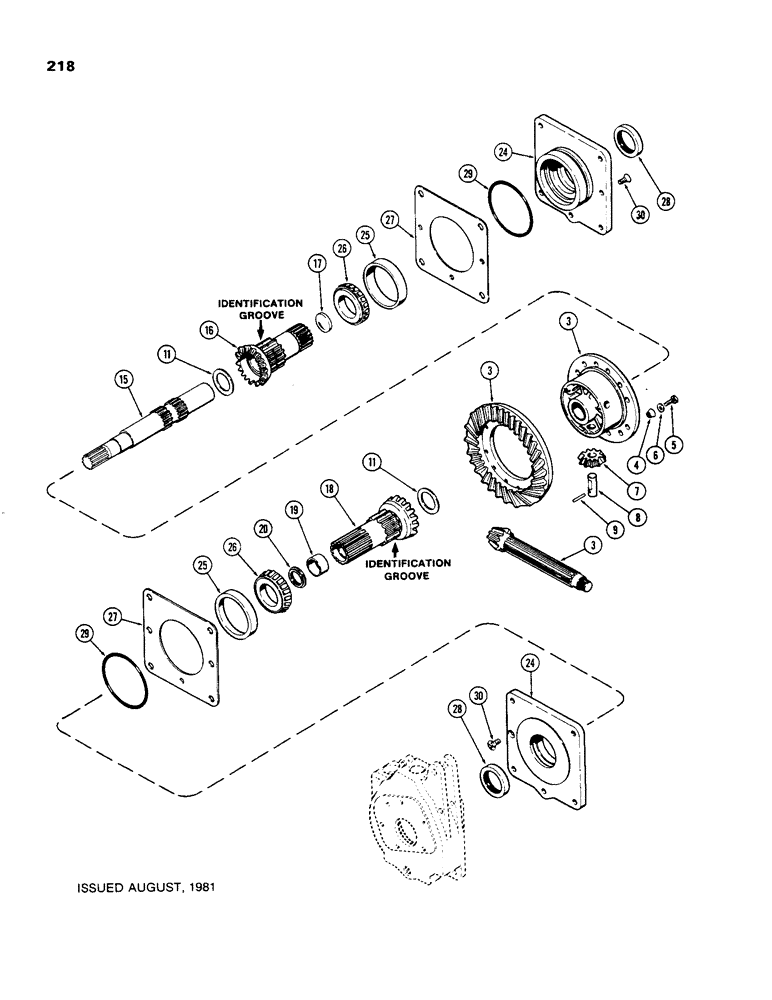

Запчасти Case 480C (218) - DIFFERENTIAL, TRANSAXLE, POWER SHUTTLE (27) - REAR AXLE SYSTEM

3

A51990

GEAR SET

PINION AND WHEEL ASSEMBLY - (Matched Set), Includes: Ref. 4 - 6

1шт.

NSS

NOT SOLD SEPARAT

PINION - bevel, 12-1/4" long (311.15 mm)

1шт.

NSS

NOT SOLD SEPARAT

WHEEL ASSEMBLY, Includes: Ref. 4 - 6

1шт.

4

NSS

NOT SOLD SEPARAT

DOWEL - center wheel (split and tapered)

12шт.

5

NSS

NOT SOLD SEPARAT

BOLT - center wheel, 3/8 x 7/8" NF hex

12шт.

6

NSS

NOT SOLD SEPARAT

WASHER - wheel bolt, 3/8 x 3/4 x 1/32" (9.53 x 19.05 x 0.79 mm)

12шт.

NSS

NOT SOLD SEPARAT

GEAR

1шт.

NSS

NOT SOLD SEPARAT

WHEEL

1шт.

NSS

NOT SOLD SEPARAT

DOWEL

4шт.

7

A142676

PINION

GEAR - pinion

3шт.

8

A146541

PIN

- pinion gear

3шт.

9

A140705

PIN

- 3/16 x 2" (4.76 x 50.8 mm) Groove

3шт.

11

A39012

WASHER,42.04mm ID x 60.2mm OD x 2.32mm Thk

- thrust, center wheel, 0.089" (2.26 mm)

1шт.

11

A39007

WASHER

- thrust, center wheel, 0.094" (2.40 mm)

1шт.

11

A39008

WASHER

- thrust, center wheel, 0.099" (2.52 mm)

1шт.

11

A39009

WASHER

- thrust, center wheel, 0.104" (2.66 mm)

1шт.

11

A39010

WASHER

- thrust, center wheel, 0.109" (2.78 mm)

1шт.

11

A39011

WASHER

- thrust, center wheel, 0.119" (3.04 mm)

1шт.

15

A144266

SHAFT

- cross

1шт.

16

A50990

GEAR

ASSEMBLY - side, left hand, with identification groove on spur gear, Includes: Ref. 17

1шт.

17

A29902

PLUG

- 1-5/8" expansion (41.28 mm)

1шт.

18

A50989

SIDE ASSY.

GEAR ASSEMBLY - side, right hand, with identification groove on spur gear, Includes: Ref. 19

1шт.

19

A35921

BUSHING,34.89mm ID x 39.83mm OD x 20.65mm L

- 1-3/8 x 1-9/16 x 13/16" (34.93 x 39.68 x 20.64 mm)

1шт.

20

A49795

OIL SEAL

SEAL - oil, right hand side gear, 1-3/8 x 1-5/8 x 3/16" (34.93 x 41.28 x 4.76 mm)

1шт.

24

A140869

HOUSING

CARRIER ASSEMBLY - side gear bearing, Includes: Ref. 25

2шт.

25

A26744

BEARING CUP,110.025 mm OD x 18.875 mm

CUP - bearing, 4-11/32" OD (110.33 mm)

1шт.

26

A30114

CONE

- bearing, 2-1/4" ID (57.15 mm)

2шт.

27

A39289

SHIM,.007" Thk

Bearing carrier (0.20 mm) .007" Thk

1шт.

27

G10719

SHIM,.005" Thk

Bearing carrier (0.14 mm) .005" Thk

1шт.

27

G10720

SHIM,.010" Thk

Bearing carrier (0.26 mm) .010" Thk

1шт.

28

A39273

OIL SEAL

- oil, 2-1/4 x 3 x 1/2" (57.15 x 76.2 x 12.7 mm)

2шт.

29

G10347

O-RING,0.139" Thk x 4.984" ID, -250, Cl 5, 75 Duro

- 5 x 5-1/4 x 1/8" (127 x 133.35 x 3.18 mm)

2шт.

30

73-616

SCREW,Slotted Flat Hd, 3/8"-16 x 1"

- carrier to transmission housing, 3/8-16 x 1" flat slotted head

2шт.
