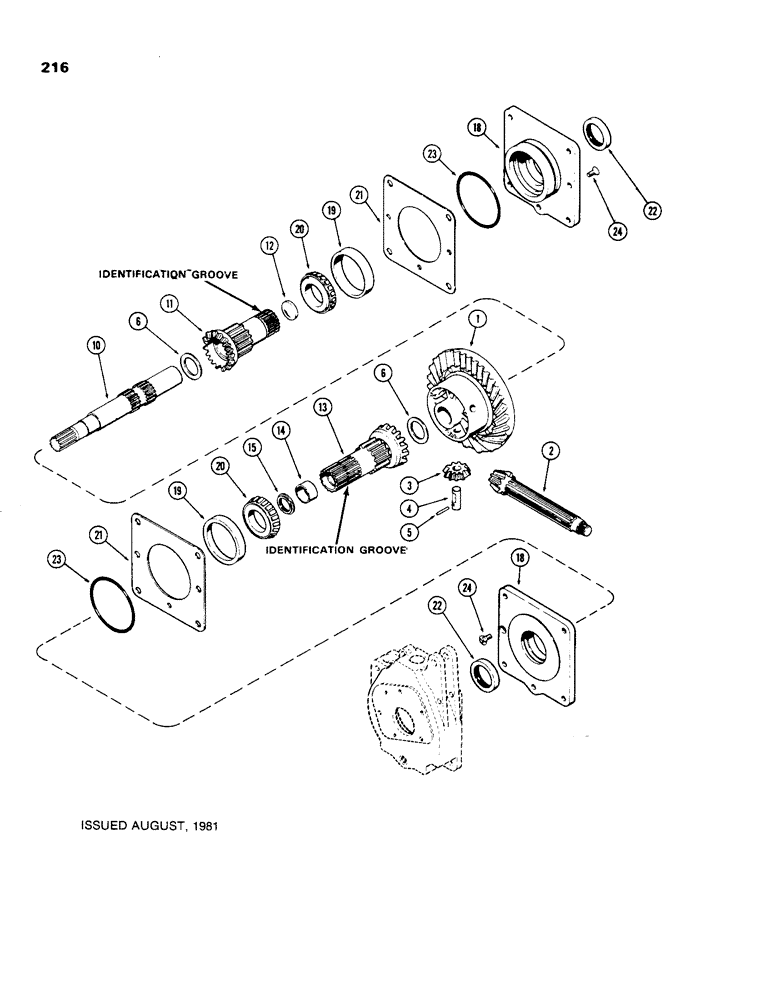

Запчасти Case 480C (216) - DIFFERENTIAL, TRANSAXLE, MECHANICAL SHUTTLE (27) - REAR AXLE SYSTEM

A50996

GEAR, BEVEL

PINION AND RING GEAR - (Matched set), Includes: Ref. 1 and 2

1шт.

Ref A50996 pinion and ring gear assy - This part uses 45-620 rivets to attach center wheel to ring gear.

1шт.

1

NSS

NOT SOLD SEPARAT

WHEEL AND GEAR ASSEMBLY - (rivet type)

1шт.

2

NSS

NOT SOLD SEPARAT

PINION - bevel, 12" long (304.8 mm) (See Figure 214)

1шт.

3

A142676

PINION

GEAR - pinion

3шт.

4

A146541

PIN

- pinion gear

3шт.

5

A140705

PIN

- 3/16 x 2" (4.76 x 50.8 mm) Groove

3шт.

6

A39012

WASHER,42.04mm ID x 60.2mm OD x 2.32mm Thk

- thrust, ring gear, 0.089" (2.26 mm)

1шт.

6

A39007

WASHER

- thrust, ring gear, 0.094" (2.38 mm)

1шт.

6

A39008

WASHER

- thrust, ring gear, 0.099" (2.51 mm)

1шт.

6

A39009

WASHER

- thrust, ring gear, 0.104" (2.64 mm)

1шт.

6

A39010

WASHER

- thrust, ring gear, 0.109" (2.76 mm)

1шт.

6

A39011

WASHER

- thrust, ring gear, 0.119" (3.02 mm)

1шт.

10

A144266

SHAFT

- cross

1шт.

11

A144337

GEAR

ASSEMBLY - side, left hand (with identification groove on spline gear), Includes: Ref. 12

1шт.

12

A29902

PLUG

- left hand side gear, 1-5/8" (41.27 mm) expansion

1шт.

13

A144339

GEAR

ASSEMBLY - side, right hand (with identification groove on spline gear), Includes: Ref. 14

1шт.

14

A35921

BUSHING,34.89mm ID x 39.83mm OD x 20.65mm L

- right hand side gear, 1-3/8 x 1-9/16 x 13/16" (34.92 x 39.68 x 20.63 mm)

1шт.

15

A49795

OIL SEAL

SEAL - oil, right hand side gear, 1-3/8 x 1-5/8 x 3/16" (34.92 x 41.27 x 4.76 mm)

1шт.

18

A140869

HOUSING

CARRIER ASSEMBLY - side gear bearing, Includes: Ref. 19

2шт.

19

A26744

BEARING CUP,110.025 mm OD x 18.875 mm

CUP - bearing, side gear, 4-11/32" O.D. (110.33 mm)

1шт.

20

A30114

CONE

- bearing, side gear, 2-1/4" ID (57.15 mm)

2шт.

21

A39289

SHIM,.007" Thk

Bearing carrier (0.20 mm) .007" Thk

1шт.

21

G10719

SHIM,.005" Thk

Bearing carrier (0.127 mm) .005" Thk

1шт.

21

G10720

SHIM,.010" Thk

Bearing carrier (0.254 mm) .010" Thk

1шт.

22

A39273

OIL SEAL

- oil, carrier, 2-1/4 x 3 x 1/2" (57.15 x 76.2 x 12.7 mm)

2шт.

23

G10347

O-RING,0.139" Thk x 4.984" ID, -250, Cl 5, 75 Duro

- carrier seal, 5 x 5-1/4 x 1/8" (127.0 x 133.35 x 3.18 mm)

2шт.

24

73-616

SCREW,Slotted Flat Hd, 3/8"-16 x 1"

- carrier to transmission housing (3/8-16 x 1" flat head, slotted)

2шт.
