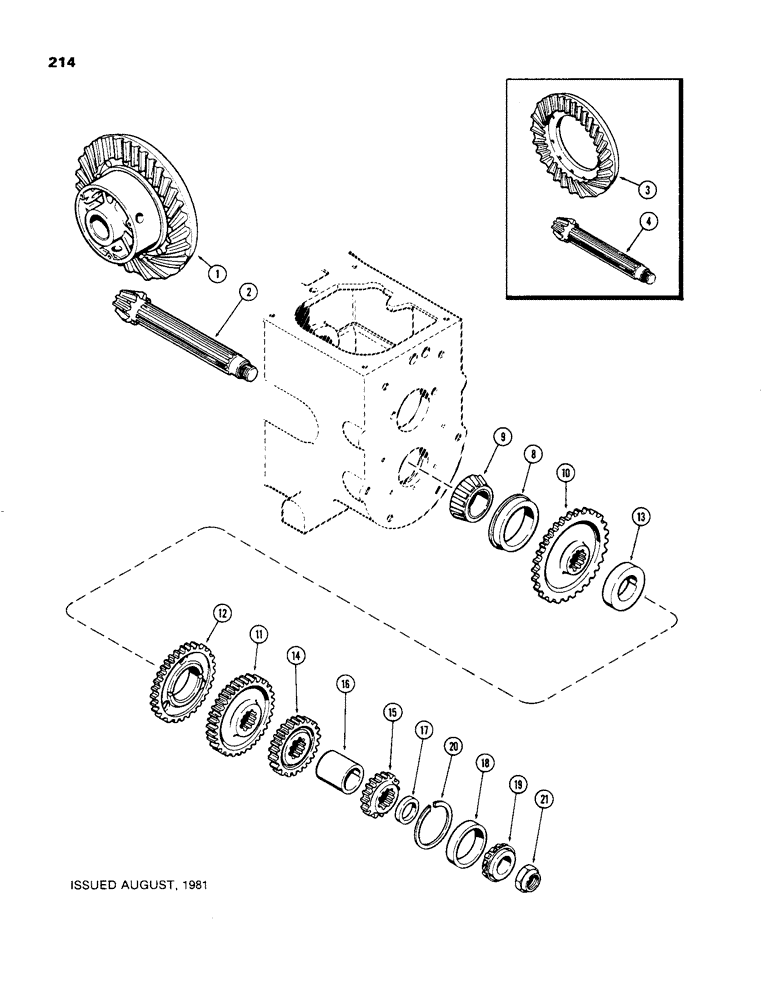

Запчасти Case 480C (214) - COUNTERSHAFT, TRANSAXLE (27) - REAR AXLE SYSTEM
№
Артикул
Название
Примечание
Количество
A50996
GEAR, BEVEL
PINION AND RING GEAR - (Matched Set) (Mechanical Shuttle) (See Figure 216), Includes: Ref. 1 and 2
1шт.
1
NSS
NOT SOLD SEPARAT
WHEEL AND GEAR ASSEMBLY - (Rivet type)
1шт.
2
NSS
NOT SOLD SEPARAT
PINION - bevel, 12" long (304.8 mm)
1шт.
A51990
GEAR SET
PINION AND RING GEAR - (Matched Set) (Power Shuttle) (See Figure 218), Includes: Ref. 3 and 4
1шт.
3
NSS
NOT SOLD SEPARAT
GEAR - ring (bolt type)
1шт.
4
NSS
NOT SOLD SEPARAT
PINION - bevel, 12-1/4" long (311.15 mm)
1шт.
8
A30115
CUP
- bearing, rear, with snap ring, 3-1/2" OD (88.9 mm)
1шт.
9
A30116
ROLLER BEARING,1.625" ID x 1.1875"
CONE - bearing, rear, 1-5/8" ID (41.28 mm)
1шт.
10
CASA38157
GEAR
- first (47 external and 10 internal teeth)
1шт.
11
A51961
GEAR
- second (38 external and 10 internal teeth)
1шт.
12
A51962
GEAR
- oil slinger (38 external teeth)
1шт.
13
A138847
SPACER
- first and second gear, 1-5/8 x 3 x 3/4" (41.28 x 76.2 x 19.05 mm)
1шт.
14
A51960
GEAR
- third (28 external and 10 internal teeth)
1шт.
15
A150248
PINION
GEAR - fourth (19 external and 10 internal teeth) (Replaces A148195)
1шт.
16
A51959
SPACER
- third and fourth gears, 1-5/8 x 2-5/16 x 2-3/16" (41.28 x 58.74 x 55.56 mm)
1шт.
17
A38751
SPACER
- thrust, 0.254" (6.46 mm)
1шт.
17
A38752
SPACER
- thrust, 0.244" (6.20 mm)
1шт.
17
A38753
SPACER
- thrust, 0.239" (6.08 mm)
1шт.
17
A38754
SPACER
- thrust, 0.234" (5.95 mm)
1шт.
17
A38755
SPACER
- thrust, 0.229" (5.82 mm)
1шт.
17
A38756
SPACER
- thrust, 0.224" (5.70 mm)
1шт.
17
A38757
SPACER
- thrust, 0.219" (5.58 mm)
1шт.
17
A38758
SPACER
- thrust, 0.214" (5.44 mm)
1шт.
17
A38760
SPACER
- thrust, 0.218" (5.55 mm)
1шт.
17
A38759
SPACER
- thrust, 0.209" (5.32 mm)
1шт.
17
A38761
SPACER
- thrust, 0.204" (5.20 mm)
1шт.
17
A38762
SPACER
- thrust, 0.199" (5.06 mm)
1шт.
17
A38763
SPACER
- thrust, 0.194" (4.94 mm)
1шт.
17
A38764
SPACER
- thrust, 0.189" (4.82 mm)
1шт.
17
A38765
SPACER
- thrust, 0.184" (4.68 mm)
1шт.
17
A38766
SPACER
- thrust, 0.179" (4.56 mm)
1шт.
17
A38767
SPACER
- thrust, 0.174" (4.42 mm)
1шт.
17
A38768
SPACER
- thrust, 0.169" (4.30 mm)
1шт.
17
A38769
SPACER
- thrust, 0.164" (4.18 mm)
1шт.
18
A29977
BEARING CUP
CUP - bearing, front, 2-3/4" OD (69.85 mm)
1шт.
19
A30072
ROLLER BEARING,1.19" ID x 0.771"
CONE - bearing, front, 13/16" ID (20.64 mm)
1шт.
20
A29971
RING
- snap, front bearing retaining
1шт.
21
G49010
LOCK NUT
- adjusting, countershaft
1шт.
Выбрано товаров: 38
