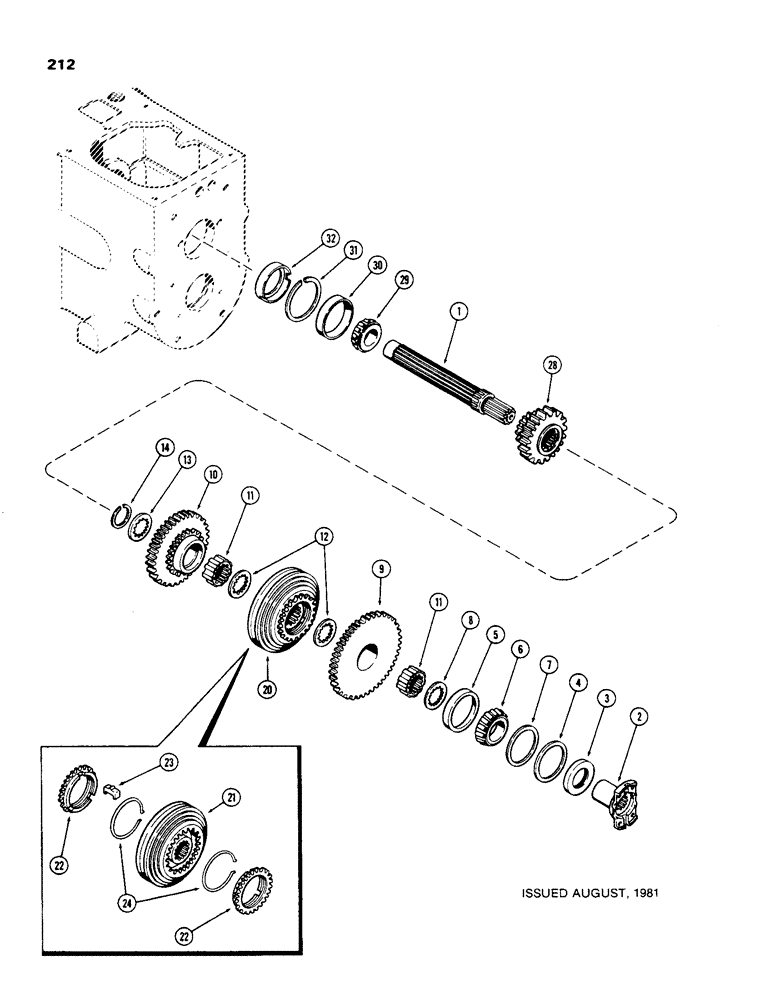

Запчасти Case 480C (212) - MAINSHAFT, TRANSAXLE (27) - REAR AXLE SYSTEM

1

A148508

SHAFT

MAINSHAFT

1шт.

2

A51954

FORK

YOKE - power input

1шт.

3

G10422

OIL SEAL

- oil, front, 1-9/16 x 2-7/16 x 1/2" (39.69 x 61.91 x 12.7 mm) Order A155950

1шт.

4

A39184

COLLAR

- pilot, front cover, 2-9/16 x 2-7/8 x 5/16" (65.09 x 73.03 x 7.94 mm)

1шт.

5

G10425

CUP

- bearing, front, 2-7/8" OD (73.03 mm)

1шт.

6

G10424

CONE

- bearing, front, 1-9/16" ID (39.69 mm)

1шт.

7

A51527

SHIM,.035" Thk

Front bearing (0.89 mm) .035" Thk

1шт.

7

G10341

SHIM,.005" Thk

Front bearing (0.13 mm) .005" Thk

1шт.

7

G10340

SHIM,.007" Thk

(0.18 mm), Front bearing .007" Thk

1шт.

8

A136386

COLLAR

- thrust, front bearing, 1-7/16 x 2 x 3/16" (36.51 x 50.8 x 4.76 mm)

1шт.

9

A148194

GEAR

- sliding, fourth (27 and 44 external teeth)

1шт.

10

A136597

GEAR

- sliding, third (27 and 35 external teeth)

1шт.

11

A51956

SYNCHRONIZER,24T

- third and fourth gears (24 internal teeth)

2шт.

12

A138572

WASHER

- thrust, third and fourth gears (1/8" thick with 24 internal teeth)

2шт.

13

A140239

COLLAR,24T

COLLAR - thrust, third and fourth gears (24 internal teeth)

1шт.

14

A26946

RING

- snap, thrust washers and gears retaining

1шт.

20

A138655

GEAR

SYNCHRONIZER ASSEMBLY, Includes: Ref. 21 - 24

1шт.

21

NSS

NOT SOLD SEPARAT

HUB AND SLEEVE ASSEMBLY

1шт.

22

A45568

SPECIAL RING

RING - blocking

2шт.

23

G46078

PLATE

- shifter

3шт.

24

A40766

SPRING

- lock ring

2шт.

28

A168172

GEAR

S - sliding, first and second (16 and 25 external and 24 internal teeth)

1шт.

29

T20939

ROLLER BEARING,1.25" ID x 0.771"

CONE - bearing, rear, 1-1/4" ID (31.75 mm)

1шт.

30

A29977

BEARING CUP

CUP - bearing, rear, 2-3/4" OD (69.85 mm)

1шт.

31

A29971

RING

- snap, rear bearing retaining

1шт.

32

G10616

CUP

- oiling, mainshaft, rear

1шт.
