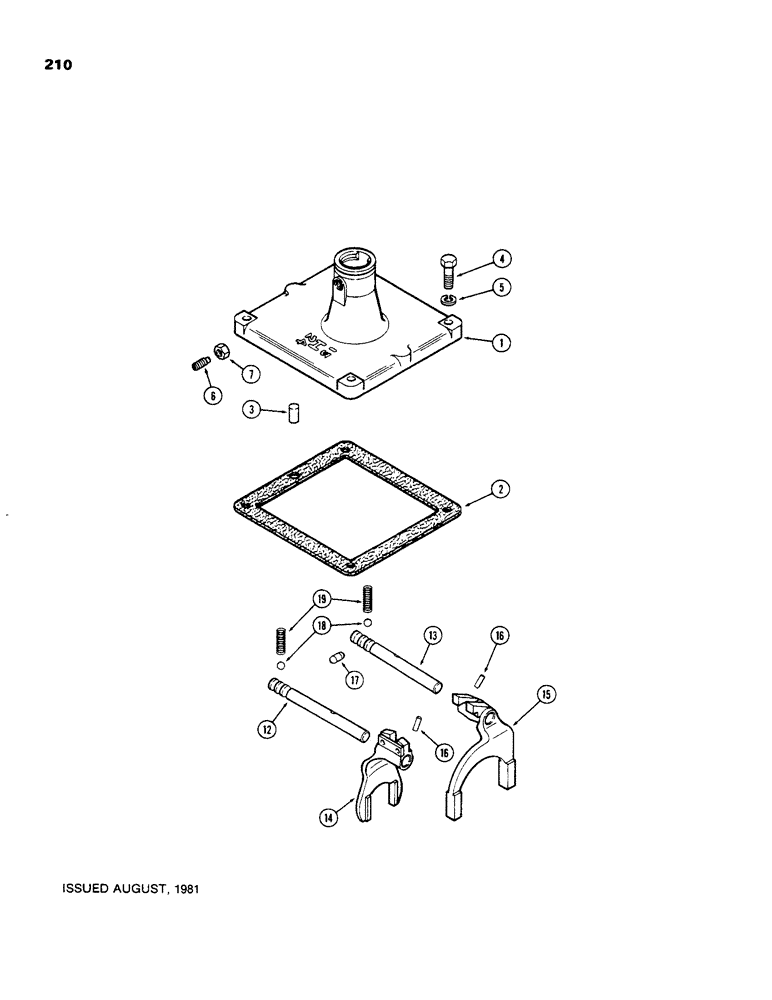

Запчасти Case 480C (210) - SHIFTER MECHANISM, TRANSAXLE (27) - REAR AXLE SYSTEM

1

A138312

COVER

- shift control

1шт.

2

G10342

GASKET

- cover to transmission housing

1шт.

3

138-245

LOCK PIN,1/2" x 7/8", Slotted

Pin, , Cover locating 1/2" x 7/8", Slotted

1шт.

4

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- cover to transmission housing (3/8 x 1-1/2" NC hex)

4шт.

5

92-6

LOCK WASHER,3/8"

4шт.

6

G15468

SET SCREW,5/16" - 18 x 3/4"

- shift lever retaining (5/16" NC, set)

1шт.

7

25-145

JAM NUT,Jam, 5/16"-18, G5

- lock, set screw (5/16' NC hex, jam)

1шт.

12

A138313

RAIL ASSY.

RAIL - shifter, first and second gear

1шт.

13

A140578

RAIL ASSY.

RAIL - shifter, third and fourth gear

1шт.

14

A51964

FORK

ASSEMBLY - shift, first and second gear

1шт.

15

A150726

FORK

FORT - shifter, thrid and fourth gear (Replaces A51963)

1шт.

16

138-2009

PIN,3/16" x 1", Coiled

Fork to rail 3/16" x 1", Coiled

2шт.

17

A29060

PLUG

- interlock, shifter rails

1шт.

18

211-28

BALL,13/32" Dia

- detent, shifter rail (meter) (10.319 mm) 13/32" Dia

2шт.

19

G47039

SPRING

- tension, detent ball

2шт.
