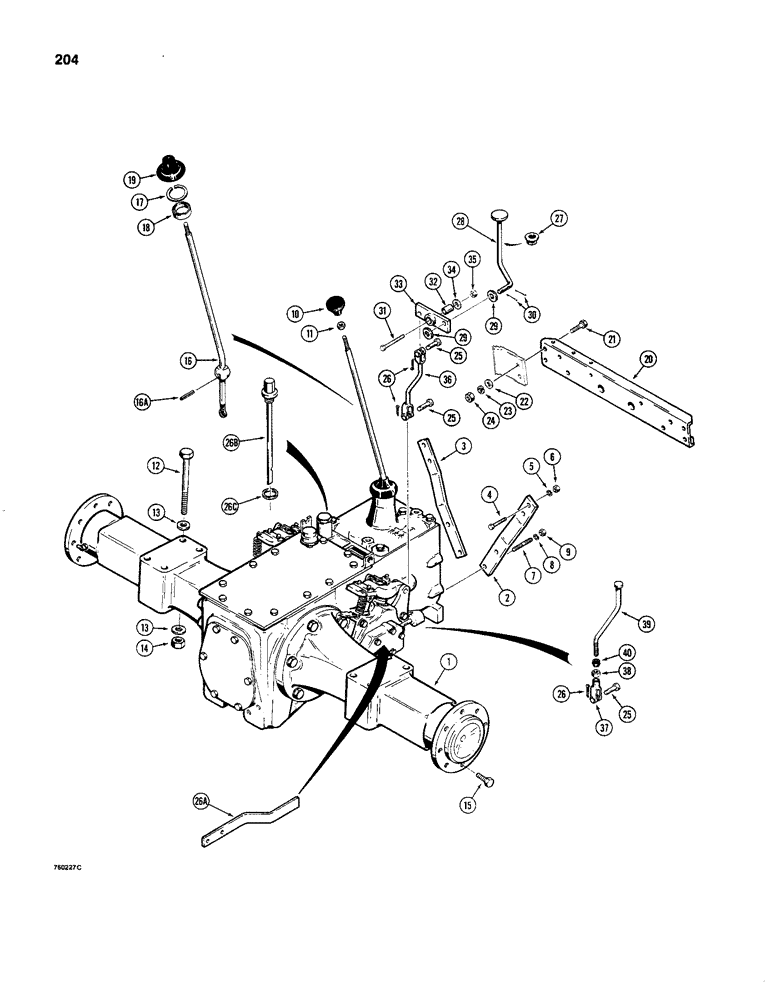

Запчасти Case 480C (204) - TRANSAXLE AND DIFFERENTIAL LOCK (27) - REAR AXLE SYSTEM

1

A137038

TRANSAXLE - complete, used before tractor SN 8956870, parts list Figures 208-226, mechanical shuttle models only

1шт.

1

A150158

TRANSAXLE - complete, used on tractor SN 8956870 and after, parts list Figures 208-226, mechanical shuttle models only

1шт.

1

A152104

TRANSAXLE - complete, parts list Figures 208-226, all power shuttle models

1шт.

1

A153003

AXLE

TRANSAXLE - complete, parts list Figures 208-226, power shuttle models

1шт.

2

D90452

SUPPORT

- right-hand

1шт.

3

D90453

SUPPORT

- left-hand

1шт.

4

113-417

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

4шт.

5

92-8

LOCK WASHER,1/2"

4шт.

6

129-105

NUT,Hex, 1/2" - 13, Gr 5

4шт.

7

D69763

STUD

- 1/2" - 20 NF

4шт.

8

92-8

LOCK WASHER,1/2"

4шт.

9

129-125

NUT,1/2"-20, G5

4шт.

10

D69105

KNOB

- lever

1шт.

11

129-145

JAM NUT,Jam, 1/2"-13, G5

1шт.

12

113-732

BOLT,Hex, 3/4" - 10 x 8", Gr 5

- hex head, 3/4" - 11 NC x 8", plated

8шт.

13

D34666

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

- flat, hardened

16шт.

14

129-108

NUT,3/4"-10, G5

8шт.

15

A38208

WHEEL BOLT,5/8-18 UNF Class 2A

BOLT - lug, rear wheel

16шт.

16

A148573

LEVER

- shifting, mechanical shuttle models, no longer used, order A150902 lever

1шт.

16

A150902

LEVER

- shifting, Includes: Ref. 16A

1шт.

16a

A156515

PIN

- groove, 1/8" x 1-1/4", shift lever

1шт.

17

A26836

RING, SNAP

RING - retaining

1шт.

18

A7923

SEAT

- shifting lever

1шт.

19

A26956

DUST CAP

BOOT - rubber, gear shift lever

1шт.

20

D66068

BRACKET

- crossmember

1шт.

21

113-417

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

4шт.

22

195-533

WASHER,1/2", SAE

- flat, 1/2", plated

4шт.

23

92-8

LOCK WASHER,1/2"

4шт.

24

129-105

NUT,Hex, 1/2" - 13, Gr 5

4шт.

25

141-54

CLEVIS PIN,3/8" x 1 1/16"

1-2шт.

26

132-25

COTTER PIN,3/32" x 5/8"

Pin, Split (Cotter), 3/32" x 5/8"

1-2шт.

26a

D74240

PLATE

BAR - lever stop, if used

1шт.

26b

A142302

DIPSTICK

- oil gauge, power shuttle models

1шт.

26c

A38660

GASKET

- dipstick

1шт.

27

353-459

BUSHING

- nylon

1шт.

28

D70524

ROD

- differential lock

1шт.

29

195-525

WASHER,3/8", SAE

- flat, 3/8", plated

2шт.

30

132-321

COTTER PIN,3/32" x 1"

PIN, SPLIT (COTTER), 3/32" x 1"

2шт.

31

113-233

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

1шт.

32

D95744

SPACER

SLEEVE - bushing

1шт.

33

D65371

LEVER

- differential lock

1шт.

34

195-2034

WASHER,7/16" x 1 1/4" x .134"

- flat, special

1шт.

35

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

1шт.

36

D70837

ROD

- lower, differential lock

1шт.

37

213-41

ADJUSTABLE CLEVIS,3/8"-24

plated 3/8"-24

1шт.

38

86585245

SPECIAL NUT,JAM, 5/8" - 18

JAM NUT - hex, 3/8" - 24 NF, plated

1шт.

39

D76357

ROD

- differential lock, dry clutch models

1шт.

39

D75127

ROD

- differential lock, power shuttle models

1шт.

40

353-462

BUSHING,12.7mm ID x 15.88mm OD x mm L

- snap

1шт.
